Tensioner & Idler Bearing

The function of the tensioner is to adjust the tightness of the timing belt. The belt is easily stretched over time, and the tensioner can automatically adjust the tension of the belt, so that the belt runs more smoothly, with less noise, and can prevent slippage. The speed of the tensioner wheel is high, and the speed of the tensioner wheel is about 3000RPM when the engine is idling. The engine is at 3000RPM, and the speed of the tensioner is more than 10000RPM. The operating ambient temperature is 90°C. In such a harsh working environment, the tensioner is a vulnerable part of the auto parts. When the engine timing belt is replaced, the tensioner also needs to be replaced to avoid worries. The tensioner is also a safety part of auto parts. Once the tensioner fails, the belt breaks and the car loses power, which will cause major safety accidents. Each tensioner of BSPD is manufactured in accordance with the ISO/TS16949 quality management system requirements, and must undergo strict high-temperature and high-speed tests, sealing tests, and durability tests. The quality is stable, safe and reliable.
Picture Product Number D(mm) W(mm) H(mm) O(mm) L(mm) CAD
LY8180 52 22 31.4
LY8181 72.5 22 17 12

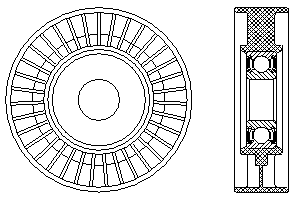

LY8182 76 22.2 17 12
LY8183 70 32 40.5
LY8184 50 27 31.5
LY8185 55 27 23.5

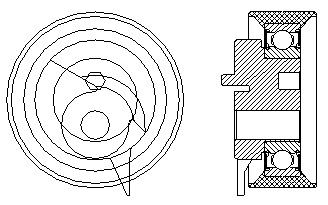

LY8186 63 24 29
LY8187 60 26.5 34 10.2
LY8188 60.17 31 32.5
LY8189 59 26
