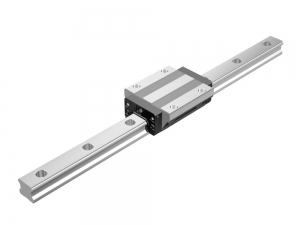

THK Standard Rail (SHS)

The THK linear guide S15C1SS+1000L standard guide has a 5° contact angle configuration for each sphere. Therefore, the THK linear guide can be used in any posture.

Product Number	Size	RAIL LENGTH RANGE
SHS15-160L RAIL	15 mm	160 mm
SHS15-220L RAIL	15 mm	220 mm
SHS15-280L RAIL	15 mm	280 mm
SHS15-340L RAIL	15 mm	340 mm
SHS15-400L RAIL	15 mm	400 mm
SHS15-460L RAIL	15 mm	460 mm
SHS15-520L RAIL	15 mm	520 mm
SHS15-580L RAIL	15 mm	580 mm
SHS15-640L RAIL	15 mm	640 mm
SHS15-700L RAIL	15 mm	700 mm
SHS15-760L RAIL	15 mm	760 mm
SHS15-820L RAIL	15 mm	820 mm
SHS15-940L RAIL	15 mm	940 mm
SHS15-1000L RAIL	15 mm	1000 mm
SHS15-1060L RAIL	15 mm	1060 mm
SHS15-1120L RAIL	15 mm	1120 mm
SHS15-1180L RAIL	15 mm	1180 mm
SHS15-1240L RAIL	15 mm	1240 mm
SHS15-1360L RAIL	15 mm	1360 mm
SHS15-1480L RAIL	15 mm	1480 mm
SHS15-1600L RAIL	15 mm	1600 mm
SHS15-3000L RAIL	15 mm	3000 mm
SHS20-220L RAIL	20 mm	220 mm
SHS20-280L RAIL	20 mm	280 mm
SHS20-340L RAIL	20 mm	340 mm
SHS20-400L RAIL	20 mm	400 mm
SHS20-460L RAIL	20 mm	460 mm
SHS20-520L RAIL	20 mm	520 mm
SHS20-580L RAIL	20 mm	580 mm
SHS20-640L RAIL	20 mm	640 mm
SHS20-700L RAIL	20 mm	700 mm
SHS20-760L RAIL	20 mm	760 mm
SHS20-820L RAIL	20 mm	820 mm
SHS20-940L RAIL	20 mm	940 mm
SHS20-1000L RAIL	20 mm	1000 mm
SHS20-1060L RAIL	20 mm	1060 mm
SHS20-1120L RAIL	20 mm	1120 mm
SHS20-1180L RAIL	20 mm	1180 mm
SHS20-1240L RAIL	20 mm	1240 mm
SHS20-1360L RAIL	20 mm	1360 mm
SHS20-1480L RAIL	20 mm	1480 mm
SHS20-1600L RAIL	20 mm	1600 mm
SHS20-1720L RAIL	20 mm	1720 mm
SHS20-1840L RAIL	20 mm	1840 mm
SHS20-1960L RAIL	20 mm	1960 mm
SHS20-2080L RAIL	20 mm	2080 mm
SHS20-2200L RAIL	20 mm	2200 mm
SHS20-3000L RAIL	20 mm	3000 mm
SHS25-220L RAIL	25 mm	220 mm
SHS25-280L RAIL	25 mm	280 mm
SHS25-340L RAIL	25 mm	340 mm
SHS25-400L RAIL	25 mm	400 mm
SHS25-460L RAIL	25 mm	460 mm
SHS25-520L RAIL	25 mm	520 mm
SHS25-580L RAIL	25 mm	580 mm
SHS25-640L RAIL	25 mm	640 mm
SHS25-700L RAIL	25 mm	700 mm
SHS25-760L RAIL	25 mm	760 mm
SHS25-820L RAIL	25 mm	820 mm
SHS25-940L RAIL	25 mm	940 mm
SHS25-1000L RAIL	25 mm	1000 mm
SHS25-1060L RAIL	25 mm	1060 mm
SHS25-1120L RAIL	25 mm	1120 mm
SHS25-1180L RAIL	25 mm	1180 mm
SHS25-1240L RAIL	25 mm	1240 mm
SHS25-1300L RAIL	25 mm	1300 mm
SHS25-1360L RAIL	25 mm	1360 mm
SHS25-1420L RAIL	25 mm	1420 mm
SHS25-1480L RAIL	25 mm	1480 mm
SHS25-1540L RAIL	25 mm	1540 mm
SHS25-1600L RAIL	25 mm	1600 mm
SHS25-1720L RAIL	25 mm	1720 mm
SHS25-1840L RAIL	25 mm	1840 mm
SHS25-1960L RAIL	25 mm	1960 mm
SHS25-2080L RAIL	25 mm	2080 mm
SHS25-2200L RAIL	25 mm	2200 mm
SHS25-2320L RAIL	25 mm	2320 mm
SHS25-2440L RAIL	25 mm	2440 mm
SHS25-3000L RAIL	25 mm	3000 mm
SHS30-280L RAIL	30 mm	280 mm
SHS30-360L RAIL	30 mm	360 mm
SHS30-440L RAIL	30 mm	440 mm
SHS30-520L RAIL	30 mm	520 mm
SHS30-600L RAIL	30 mm	600 mm
SHS30-680L RAIL	30 mm	680 mm
SHS30-760L RAIL	30 mm	760 mm
SHS30-840L RAIL	30 mm	840 mm
SHS30-920L RAIL	30 mm	920 mm
SHS30-1000L RAIL	30 mm	1000 mm
SHS30-1080L RAIL	30 mm	1080 mm
SHS30-1160L RAIL	30 mm	1160 mm
SHS30-1240L RAIL	30 mm	1240 mm
SHS30-1320L RAIL	30 mm	1320 mm
SHS30-1400L RAIL	30 mm	1400 mm
SHS30-1480L RAIL	30 mm	1480 mm
SHS30-1560L RAIL	30 mm	1560 mm
SHS30-1640L RAIL	30 mm	1640 mm
SHS30-1720L RAIL	30 mm	1720 mm
SHS30-1800L RAIL	30 mm	1800 mm
SHS30-1880L RAIL	30 mm	1880 mm
SHS30-1960L RAIL	30 mm	1960 mm
SHS30-2040L RAIL	30 mm	2040 mm
SHS30-2200L RAIL	30 mm	2200 mm
SHS30-2360L RAIL	30 mm	2360 mm
SHS30-2520L RAIL	30 mm	2520 mm
SHS30-2680L RAIL	30 mm	2680 mm
SHS30-2840L RAIL	30 mm	2840 mm
SHS30-3000L RAIL	30 mm	3000 mm
SHS35-280L RAIL	35 mm	280 mm
SHS35-360L RAIL	35 mm	360 mm
SHS35-440L RAIL	35 mm	440 mm
SHS35-520L RAIL	35 mm	520 mm
SHS35-600L RAIL	35 mm	600 mm
SHS35-680L RAIL	35 mm	680 mm
SHS35-760L RAIL	35 mm	760 mm
SHS35-840L RAIL	35 mm	840 mm
SHS35-920L RAIL	35 mm	920 mm
SHS35-1000L RAIL	35 mm	1000 mm
SHS35-1080L RAIL	35 mm	1080 mm
SHS35-1160L RAIL	35 mm	1160 mm
SHS35-1240L RAIL	35 mm	1240 mm
SHS35-1320L RAIL	35 mm	1320 mm
SHS35-1400L RAIL	35 mm	1400 mm
SHS35-1480L RAIL	35 mm	1480 mm
SHS35-1560L RAIL	35 mm	1560 mm
SHS35-1640L RAIL	35 mm	1640 mm
SHS35-1720L RAIL	35 mm	1720 mm
SHS35-1800L RAIL	35 mm	1800 mm
SHS35-1880L RAIL	35 mm	1880 mm
SHS35-1960L RAIL	35 mm	1960 mm
SHS35-2040L RAIL	35 mm	2040 mm
SHS35-2200L RAIL	35 mm	2200 mm
SHS35-2360L RAIL	35 mm	2360 mm
SHS35-2520L RAIL	35 mm	2520 mm
SHS35-2680L RAIL	35 mm	2680 mm
SHS35-2840L RAIL	35 mm	2840 mm
SHS35-3000L RAIL	35 mm	3000 mm
SHS45-570L RAIL	45 mm	570 mm
SHS45-675L RAIL	45 mm	675 mm
SHS45-780L RAIL	45 mm	780 mm
SHS45-885L RAIL	45 mm	885 mm
SHS45-990L RAIL	45 mm	990 mm
SHS45-1095L RAIL	45 mm	1095 mm
SHS45-1200L RAIL	45 mm	1200 mm
SHS45-1305L RAIL	45 mm	1305 mm
SHS45-1410L RAIL	45 mm	1410 mm
SHS45-1515L RAIL	45 mm	1515 mm
SHS45-1620L RAIL	45 mm	1620 mm
SHS45-1725L RAIL	45 mm	1725 mm
SHS45-1830L RAIL	45 mm	1830 mm
SHS45-1935L RAIL	45 mm	1935 mm
SHS45-2040L RAIL	45 mm	2040 mm
SHS45-2145L RAIL	45 mm	2145 mm
SHS45-2250L RAIL	45 mm	2250 mm
SHS45-2355L RAIL	45 mm	2355 mm
SHS45-2460L RAIL	45 mm	2460 mm
SHS45-2565L RAIL	45 mm	2565 mm
SHS45-2670L RAIL	45 mm	2670 mm
SHS45-2775L RAIL	45 mm	2775 mm
SHS45-2880L RAIL	45 mm	2880 mm
SHS45-2985L RAIL	45 mm	2985 mm
SHS45-3000L RAIL	45 mm	3000 mm
SHS55-780L RAIL	55 mm	780 mm
SHS55-900L RAIL	55 mm	900 mm
SHS55-1020L RAIL	55 mm	1020 mm
SHS55-1140L RAIL	55 mm	1140 mm
SHS55-1260L RAIL	55 mm	1260 mm
SHS55-1380L RAIL	55 mm	1380 mm
SHS55-1500L RAIL	55 mm	1500 mm
SHS55-1620L RAIL	55 mm	1620 mm
SHS55-1740L RAIL	55 mm	1740 mm
SHS55-1860L RAIL	55 mm	1860 mm
SHS55-1980L RAIL	55 mm	1980 mm
SHS55-2100L RAIL	55 mm	2100 mm
SHS55-2220L RAIL	55 mm	2220 mm
SHS55-2340L RAIL	55 mm	2340 mm
SHS55-2460L RAIL	55 mm	2460 mm
SHS55-2580L RAIL	55 mm	2580 mm
SHS55-2700L RAIL	55 mm	2700 mm
SHS55-2820L RAIL	55 mm	2820 mm
SHS55-2940L RAIL	55 mm	2940 mm
SHS55-3000L RAIL	55 mm	3000 mm
SHS65-1270L RAIL	65 mm	1270 mm
SHS65-1570L RAIL	65 mm	1570 mm
SHS65-2020L RAIL	65 mm	2020 mm
SHS65-2620L RAIL	65 mm	2620 mm
SHS65-3000L RAIL	65 mm	3000 mm
