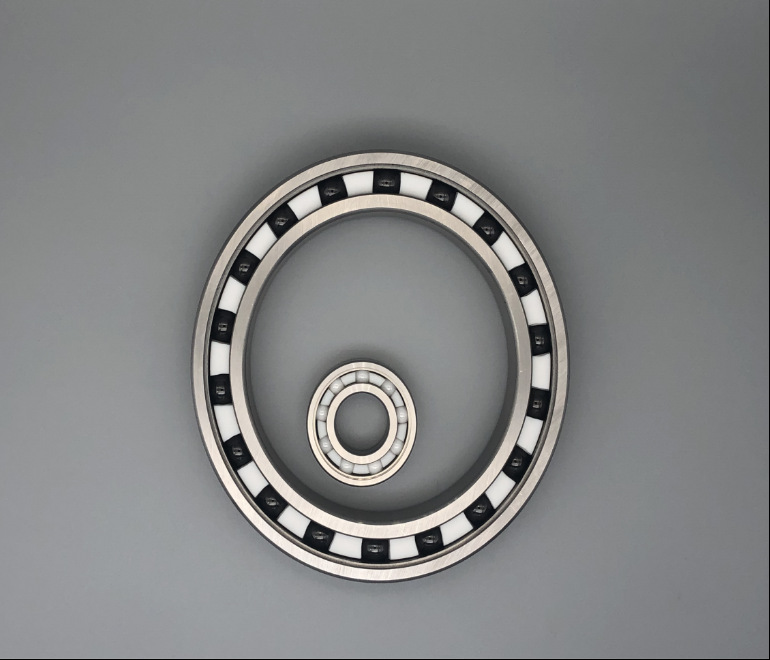

AISI316L Stainless Steel Ball Bearings
Advantages: corrosion resistance, acid and alkali resistance, high temperature resistance, waterproof, rust prevention;
| Product Number | System of measurement | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|
| S316-R1-5 | Inch | 0.0938" | 0.3125" | 0.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R133ZZ | Inch | 0.0938" | 0.1875" | 0.15 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R133-2RS | Inch | 0.0938" | 0.1875" | 0.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R1-5ZZ | Inch | 0.0938" | 0.3125" | 1.15 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R133 | Inch | 0.0938" | 0.1875" | 0.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R1-5-2RS | Inch | 0.0938" | 0.3125" | 1.15 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R144ZZ | Inch | 0.125" | 0.25" | 0.4 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R144 | Inch | 0.125" | 0.25" | 0.27 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R144-2RS | Inch | 0.125" | 0.25" | 0.4 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2 | Inch | 0.125" | 0.375" | 1.04 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-5-2RS | Inch | 0.125" | 0.3125" | 0.74 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-5ZZ | Inch | 0.125" | 0.3125" | 0.74 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-2RS | Inch | 0.125" | 0.375" | 1.37 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2ZZ | Inch | 0.125" | 0.375" | 1.37 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-5 | Inch | 0.125" | 0.3125" | 0.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-6 | Inch | 0.125" | 0.375" | 0.96 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-6-2RS | Inch | 0.125" | 0.375" | 1.23 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2-6ZZ | Inch | 0.125" | 0.375" | 1.23 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2A | Inch | 0.125" | 0.5" | 3.3 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2AZZ | Inch | 0.125" | 0.5" | 3.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R2A-2RS | Inch | 0.125" | 0.5" | 3.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R155 | Inch | 0.1563" | 0.3125" | 0.51 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R155-2RS | Inch | 0.1563" | 0.3125" | 0.51 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R155ZZ | Inch | 0.1563" | 0.3125" | 0.61 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R156 | Inch | 0.1875" | 0.3125" | 0.4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R156ZZ | Inch | 0.1875" | 0.3125" | 0.45 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R156-2RS | Inch | 0.1875" | 0.3125" | 0.45 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R166 | Inch | 0.1875" | 0.375" | 0.81 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3A | Inch | 0.1875" | 0.625" | 5.08 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3AZZ | Inch | 0.1875" | 0.625" | 5.08 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3A-2RS | Inch | 0.1875" | 0.625" | 5.08 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3ZZ | Inch | 0.1875" | 0.5" | 2.95 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3-2RS | Inch | 0.1875" | 0.5" | 2.95 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R3 | Inch | 0.1875" | 0.5" | 2.21 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R166ZZ | Inch | 0.1875" | 0.375" | 0.85 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R166-2RS | Inch | 0.1875" | 0.375" | 0.85 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1601 | Inch | 0.1875" | 0.6875" | 4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1601 ZZ | Inch | 0.1875" | 0.6875" | 4 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1601-2RS | Inch | 0.1875" | 0.6875" | 4 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R168 | Inch | 0.25" | 0.375" | 0.57 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R168ZZ | Inch | 0.25" | 0.375" | 0.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R168-2RS | Inch | 0.25" | 0.375" | 0.60 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R188-2RS | Inch | 0.25" | 0.5" | 2.32 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R188 | Inch | 0.25" | 0.5" | 1.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4 | Inch | 0.25" | 0.625" | 4.46 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R188ZZ | Inch | 0.25" | 0.5" | 2.32 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4-2RS | Inch | 0.25" | 0.625" | 4.54 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4ZZ | Inch | 0.25" | 0.625" | 4.54 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4A | Inch | 0.25" | 0.75" | 7.48 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4A-2RS | Inch | 0.25" | 0.75" | 10 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R4AZZ | Inch | 0.25" | 0.75" | 10 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1602 ZZ | Inch | 0.25" | 0.6875" | 6.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1602-2RS | Inch | 0.25" | 0.6875" | 6.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1602 | Inch | 0.25" | 0.6875" | 6.3 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R1810ZZ | Inch | 0.3125" | 0.5" | 1.57 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R1810-2RS | Inch | 0.3125" | 0.5" | 1.57 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R1810 | Inch | 0.3125" | 0.5" | 1.39 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1603 | Inch | 0.3125" | 0.875" | 9.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1603-2RS | Inch | 0.3125" | 0.875" | 9.5 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1603 ZZ | Inch | 0.3125" | 0.875" | 9.5 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1605 | Inch | 0.3125" | 0.9062" | 16.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1605 ZZ | Inch | 0.3125" | 0.9062" | 16.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1605-2RS | Inch | 0.3125" | 0.9062" | 16.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R6-2RS | Inch | 0.375" | 0.875" | 11.7 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R6ZZ | Inch | 0.375" | 0.875" | 11.7 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R6 | Inch | 0.375" | 0.875" | 9.02 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1604 | Inch | 0.375" | 0.875" | 8.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1604-2RS | Inch | 0.375" | 0.875" | 8.6 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1606-2RS | Inch | 0.375" | 0.9062" | 21.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1606 | Inch | 0.375" | 0.9062" | 21.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1604 ZZ | Inch | 0.375" | 0.875" | 8.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1606 ZZ | Inch | 0.375" | 0.9062" | 21.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1614 | Inch | 0.375" | 1.125" | 35 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1614-2RS | Inch | 0.375" | 1.125" | 35 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1614 ZZ | Inch | 0.375" | 1.125" | 35 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1615 ZZ | Inch | 0.4375" | 1.125" | 32.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1615-2RS | Inch | 0.4375" | 1.125" | 32.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1615 | Inch | 0.4375" | 1.125" | 32.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1607 ZZ | Inch | 0.4375" | 0.9062" | 22.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1607-2RS | Inch | 0.4375" | 0.9062" | 22.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1607 | Inch | 0.4375" | 0.9062" | 22.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1620 | Inch | 0.4375" | 1.375" | 45.3 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1620-2RS | Inch | 0.4375" | 1.375" | 45.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1620 ZZ | Inch | 0.4375" | 1.375" | 45.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1621 | Inch | 0.5" | 1.375" | 48 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1621-2RS | Inch | 0.5" | 1.375" | 48 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1621 ZZ | Inch | 0.5" | 1.375" | 48 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1616 ZZ | Inch | 0.5" | 1.125" | 30 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1616 | Inch | 0.5" | 1.125" | 30 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1616-2RS | Inch | 0.5" | 1.125" | 30 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R8 | Inch | 0.5" | 1.125" | 11.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R8ZZ | Inch | 0.5" | 1.125" | 24.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R8-2RS | Inch | 0.5" | 1.125" | 24.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1622 | Inch | 0.5625" | 1.375" | 45.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1622 ZZ | Inch | 0.5625" | 1.375" | 45.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1622-2RS | Inch | 0.5625" | 1.375" | 45.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1628 ZZ | Inch | 0.625" | 1.625" | 72 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1628-2RS | Inch | 0.625" | 1.625" | 72 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1628 | Inch | 0.625" | 1.625" | 72 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1623 | Inch | 0.625" | 1.375" | 40 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1623 ZZ | Inch | 0.625" | 1.375" | 40 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1623-2RS | Inch | 0.625" | 1.375" | 40 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1633 | Inch | 0.625" | 1.75" | 92 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1633-2RS | Inch | 0.625" | 1.75" | 92 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1633 ZZ | Inch | 0.625" | 1.75" | 92 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R10-2RS | Inch | 0.625" | 1.375" | 38.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R10 | Inch | 0.625" | 1.375" | 23.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R10ZZ | Inch | 0.625" | 1.375" | 38.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1635 | Inch | 0.75" | 1.75" | 84.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1630 | Inch | 0.75" | 1.625" | 64.9 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1630 ZZ | Inch | 0.75" | 1.625" | 64.9 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1630-2RS | Inch | 0.75" | 1.625" | 64.9 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1635-2RS | Inch | 0.75" | 1.75" | 84.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1635 ZZ | Inch | 0.75" | 1.75" | 84.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1638 | Inch | 0.75" | 2" | 120.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1638 ZZ | Inch | 0.75" | 2" | 120.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1638-2RS | Inch | 0.75" | 2" | 120.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R12 | Inch | 0.75" | 1.625" | 53.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R12-2RS | Inch | 0.75" | 1.625" | 69.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R12ZZ | Inch | 0.75" | 1.625" | 69.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1640 ZZ | Inch | 0.875" | 2" | 112 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1640-2RS | Inch | 0.875" | 2" | 112 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1640 | Inch | 0.875" | 2" | 112 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R14 | Inch | 0.875" | 1.875" | 78 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R14-2RS | Inch | 0.875" | 1.875" | 78 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R14ZZ | Inch | 0.875" | 1.875" | 78 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1641 ZZ | Inch | 1" | 2" | 100.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1641 | Inch | 1" | 2" | 100.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1641-2RS | Inch | 1" | 2" | 100.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R16 | Inch | 1" | 2" | 87 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R16-2RS | Inch | 1" | 2" | 87 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R16ZZ | Inch | 1" | 2" | 87 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1652 | Inch | 1.125" | 2.5" | 210 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1652 ZZ | Inch | 1.125" | 2.5" | 210 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1652-2RS | Inch | 1.125" | 2.5" | 210 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R18ZZ | Inch | 1.125" | 2.125" | 91 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R18 | Inch | 1.125" | 2.125" | 91 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R18-2RS | Inch | 1.125" | 2.125" | 91 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1657 | Inch | 1.25" | 2.5625" | 215 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1657-2RS | Inch | 1.25" | 2.5625" | 215 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1657 ZZ | Inch | 1.25" | 2.5625" | 215 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1654 ZZ | Inch | 1.25" | 2.5" | 190 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1654-2RS | Inch | 1.25" | 2.5" | 190 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1654 | Inch | 1.25" | 2.5" | 190 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R20 | Inch | 1.25" | 2.25" | 102 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R20-2RS | Inch | 1.25" | 2.25" | 102 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R20ZZ | Inch | 1.25" | 2.25" | 102 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1658 | Inch | 1.3125" | 2.5625" | 200 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1658 ZZ | Inch | 1.3125" | 2.5625" | 200 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-1658-2RS | Inch | 1.3125" | 2.5625" | 200 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R22-2RS | Inch | 1.375" | 2.5" | 105 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R22 | Inch | 1.375" | 2.5" | 105 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R22ZZ | Inch | 1.375" | 2.5" | 105 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R24-2RS | Inch | 1.5" | 2.625" | 140 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R24 | Inch | 1.5" | 2.625" | 140 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-R24ZZ | Inch | 1.5" | 2.625" | 140 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682 | Metric | 2 mm | 5 mm | 0.15 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682-2RS | Metric | 2 mm | 5 mm | 0.15 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682ZZ | Metric | 2 mm | 5 mm | 0.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR52 | Metric | 2 mm | 5 mm | 0.14 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR52-2RS | Metric | 2 mm | 5 mm | 0.14 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR52ZZ | Metric | 2 mm | 5 mm | 0.20 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692-2RS | Metric | 2 mm | 6 mm | 0.35 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692 | Metric | 2 mm | 6 mm | 0.28 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692ZZ | Metric | 2 mm | 6 mm | 0.35 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR62 | Metric | 2 mm | 6 mm | 0.28 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR72-2RS | Metric | 2 mm | 7 mm | 0.53 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR72ZZ | Metric | 2 mm | 7 mm | 0.53 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR62-2RS | Metric | 2 mm | 6 mm | 0.28 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR72 | Metric | 2 mm | 7 mm | 0.43 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602 | Metric | 2 mm | 7 mm | 0.50 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR62ZZ | Metric | 2 mm | 6 mm | 0.33 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602-2RS | Metric | 2 mm | 7 mm | 0.6 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602ZZ | Metric | 2 mm | 7 mm | 0.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682X | Metric | 2.5 mm | 6 mm | 0.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682XZZ | Metric | 2.5 mm | 6 mm | 0.35 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-682X-2RS | Metric | 2.5 mm | 6 mm | 0.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692X-2RS | Metric | 2.5 mm | 7 mm | 0.55 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692X | Metric | 2.5 mm | 7 mm | 0.4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-692XZZ | Metric | 2.5 mm | 7 mm | 0.55 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602X-2RS | Metric | 2.5 mm | 8 mm | 0.61 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602X | Metric | 2.5 mm | 8 mm | 0.61 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-602XZZ | Metric | 2.5 mm | 8 mm | 0.85 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR82X | Metric | 2.5 mm | 8 mm | 0.52 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR82X-2RS | Metric | 2.5 mm | 8 mm | 0.52 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR82XZZ | Metric | 2.5 mm | 8 mm | 0.52 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR63 | Metric | 3 mm | 6 mm | 0.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-683ZZ | Metric | 3 mm | 7 mm | 0.45 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR63-2RS | Metric | 3 mm | 6 mm | 0.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR63ZZ | Metric | 3 mm | 6 mm | 0.28 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-683 | Metric | 3 mm | 7 mm | 0.32 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-683-2RS | Metric | 3 mm | 7 mm | 0.45 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-693 | Metric | 3 mm | 8 mm | 0.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-693-2RS | Metric | 3 mm | 8 mm | 0.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-693ZZ | Metric | 3 mm | 8 mm | 0.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR83-2RS | Metric | 3 mm | 8 mm | 0.51 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR83 | Metric | 3 mm | 8 mm | 0.51 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-603 | Metric | 3 mm | 9 mm | 0.84 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-603-2RS | Metric | 3 mm | 9 mm | 0.84 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR83ZZ | Metric | 3 mm | 8 mm | 0.67 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-603ZZ | Metric | 3 mm | 9 mm | 1.13 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR93 | Metric | 3 mm | 9 mm | 0.75 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-623 | Metric | 3 mm | 10 mm | 1.45 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR93-2RS | Metric | 3 mm | 9 mm | 0.75 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR93ZZ | Metric | 3 mm | 9 mm | 1.15 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-623-2RS | Metric | 3 mm | 10 mm | 1.65 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-623ZZ | Metric | 3 mm | 10 mm | 1.65 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-633ZZ | Metric | 3 mm | 13 mm | 3.43 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-633 | Metric | 3 mm | 13 mm | 3.27 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-633-2RS | Metric | 3 mm | 13 mm | 3.43 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR74 | Metric | 4 mm | 7 mm | 0.23 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR74ZZ | Metric | 4 mm | 7 mm | 0.33 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR74-2RS | Metric | 4 mm | 7 mm | 0.23 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR84 | Metric | 4 mm | 8 mm | 0.39 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR84-2RS | Metric | 4 mm | 8 mm | 0.39 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-684 | Metric | 4 mm | 9 mm | 0.65 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR84ZZ | Metric | 4 mm | 8 mm | 0.56 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-684-2RS | Metric | 4 mm | 9 mm | 1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-684ZZ | Metric | 4 mm | 9 mm | 1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR104 | Metric | 4 mm | 10 mm | 0.96 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR104-2RS | Metric | 4 mm | 10 mm | 1.33 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR104ZZ | Metric | 4 mm | 10 mm | 1.33 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-694 | Metric | 4 mm | 11 mm | 1.69 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-694ZZ | Metric | 4 mm | 11 mm | 1.75 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-694-2RS | Metric | 4 mm | 11 mm | 1.75 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-604 | Metric | 4 mm | 12 mm | 2.19 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-604ZZ | Metric | 4 mm | 12 mm | 2.34 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-604-2RS | Metric | 4 mm | 12 mm | 2.34 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-624 | Metric | 4 mm | 13 mm | 3.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-624-2RS | Metric | 4 mm | 13 mm | 3.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-634 | Metric | 4 mm | 16 mm | 5.24 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-634-2RS | Metric | 4 mm | 16 mm | 5.44 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-624ZZ | Metric | 4 mm | 13 mm | 3.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-634ZZ | Metric | 4 mm | 16 mm | 5.44 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR85 | Metric | 5 mm | 8 mm | 63 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR85-2RS | Metric | 5 mm | 8 mm | 0.34 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR85ZZ | Metric | 5 mm | 8 mm | 63 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR95 | Metric | 5 mm | 9 mm | 0.54 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR95ZZ | Metric | 5 mm | 9 mm | 0.58 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR95-2RS | Metric | 5 mm | 9 mm | 0.58 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR105-2RS | Metric | 5 mm | 10 mm | 1.26 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-685-2RS | Metric | 5 mm | 11 mm | 1.93 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR105ZZ | Metric | 5 mm | 10 mm | 1.26 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR105 | Metric | 5 mm | 10 mm | 0.91 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-685 | Metric | 5 mm | 11 mm | 1.16 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-685ZZ | Metric | 5 mm | 11 mm | 1.93 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR115 | Metric | 5 mm | 11 mm | 0.62 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-605ZZ | Metric | 5 mm | 14 mm | 3.75 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR115-2RS | Metric | 5 mm | 11 mm | 0.62 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR115ZZ | Metric | 5 mm | 11 mm | 0.62 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-695 | Metric | 5 mm | 13 mm | 2.31 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-695-2RS | Metric | 5 mm | 13 mm | 2.31 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-605 | Metric | 5 mm | 14 mm | 3.46 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-605-2RS | Metric | 5 mm | 14 mm | 3.75 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-695ZZ | Metric | 5 mm | 13 mm | 2.31 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-625 | Metric | 5 mm | 16 mm | 4.95 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-625-2RS | Metric | 5 mm | 16 mm | 5.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-625ZZ | Metric | 5 mm | 16 mm | 5.10 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-635 | Metric | 5 mm | 19 mm | 8.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-635-2RS | Metric | 5 mm | 19 mm | 8.89 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-635ZZ | Metric | 5 mm | 19 mm | 8.89 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR106 | Metric | 6 mm | 10 mm | 0.55 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR106ZZ | Metric | 6 mm | 10 mm | 0.7 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR106-2RS | Metric | 6 mm | 10 mm | 0.7 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR126 | Metric | 6 mm | 12 mm | 1.25 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR126-2RS | Metric | 6 mm | 12 mm | 1.66 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR126ZZ | Metric | 6 mm | 12 mm | 1.66 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-686-2RS | Metric | 6 mm | 13 mm | 2.68 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-686 | Metric | 6 mm | 13 mm | 1.87 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-686ZZ | Metric | 6 mm | 13 mm | 2.68 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-696 | Metric | 6 mm | 15 mm | 3.85 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-696ZZ | Metric | 6 mm | 15 mm | 3.65 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-696-2RS | Metric | 6 mm | 15 mm | 3.65 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-606 | Metric | 6 mm | 17 mm | 5.94 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-606-2RS | Metric | 6 mm | 17 mm | 6.89 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-606ZZ | Metric | 6 mm | 17 mm | 6.89 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-626 | Metric | 6 mm | 19 mm | 8.12 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-626-2RS | Metric | 6 mm | 19 mm | 8.65 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-636 | Metric | 6 mm | 22 mm | 13.9 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-626ZZ | Metric | 6 mm | 19 mm | 8.65 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-636-2RS | Metric | 6 mm | 22 mm | 14.5 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-636ZZ | Metric | 6 mm | 22 mm | 14.5 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR117 | Metric | 7 mm | 11 mm | 0.59 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR117-2RS | Metric | 7 mm | 11 mm | 0.71 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR117ZZ | Metric | 7 mm | 11 mm | 0.71 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR137 | Metric | 7 mm | 13 mm | 1.52 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR137ZZ | Metric | 7 mm | 13 mm | 2.01 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-687-2RS | Metric | 7 mm | 14 mm | 2.95 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR137-2RS | Metric | 7 mm | 13 mm | 2.01 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-687 | Metric | 7 mm | 14 mm | 2.03 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-687ZZ | Metric | 7 mm | 14 mm | 2.95 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-697 | Metric | 7 mm | 17 mm | 5.26 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-697ZZ | Metric | 7 mm | 17 mm | 5.01 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-607-2RS | Metric | 7 mm | 19 mm | 8.24 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-697-2RS | Metric | 7 mm | 17 mm | 5.01 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-607 | Metric | 7 mm | 19 mm | 7.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-607ZZ | Metric | 7 mm | 19 mm | 8.24 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-627 | Metric | 7 mm | 22 mm | 12.7 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-627-2RS | Metric | 7 mm | 22 mm | 13.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-627ZZ | Metric | 7 mm | 22 mm | 13.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-637 | Metric | 7 mm | 26 mm | 24.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-637-2RS | Metric | 7 mm | 26 mm | 25.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-637ZZ | Metric | 7 mm | 26 mm | 25.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR128ZZ | Metric | 8 mm | 12 mm | 0.99 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR148 | Metric | 8 mm | 14 mm | 1.9 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR148-2RS | Metric | 8 mm | 14 mm | 2.19 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR148ZZ | Metric | 8 mm | 14 mm | 2.19 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR128 | Metric | 8 mm | 12 mm | 0.7 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-MR128-2RS | Metric | 8 mm | 12 mm | 0.99 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-608ZZ | Metric | 8 mm | 22 mm | 12.9 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-608 | Metric | 8 mm | 22 mm | 11.8 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-698ZZ | Metric | 8 mm | 19 mm | 7.57 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-698-2RS | Metric | 8 mm | 19 mm | 7.57 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-698 | Metric | 8 mm | 19 mm | 7.12 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-688ZZ | Metric | 8 mm | 16 mm | 4.05 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-608-2RS | Metric | 8 mm | 22 mm | 12.9 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-688-2RS | Metric | 8 mm | 16 mm | 4.05 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-688 | Metric | 8 mm | 16 mm | 3.11 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-628 | Metric | 8 mm | 24 mm | 17.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-638 | Metric | 8 mm | 28 mm | 28.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-638ZZ | Metric | 8 mm | 28 mm | 30.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-638-2RS | Metric | 8 mm | 28 mm | 30.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-628ZZ | Metric | 8 mm | 24 mm | 18.5 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-628-2RS | Metric | 8 mm | 24 mm | 18.5 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-679ZZ | Metric | 9 mm | 14 mm | 1.98 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-679-2RS | Metric | 9 mm | 14 mm | 1.98 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-679 | Metric | 9 mm | 14 mm | 1.35 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-689 | Metric | 9 mm | 17 mm | 3.41 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-689-2RS | Metric | 9 mm | 17 mm | 4.38 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-689ZZ | Metric | 9 mm | 17 mm | 4.38 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-609ZZ | Metric | 9 mm | 24 mm | 16 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-699 | Metric | 9 mm | 20 mm | 8.38 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-699-2RS | Metric | 9 mm | 20 mm | 8.54 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-699ZZ | Metric | 9 mm | 20 mm | 8.54 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-609 | Metric | 9 mm | 24 mm | 14.7 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-609-2RS | Metric | 9 mm | 24 mm | 16 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-629 | Metric | 9 mm | 26 mm | 19 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-639ZZ | Metric | 9 mm | 30 mm | 37.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-629-2RS | Metric | 9 mm | 26 mm | 21.8 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-629ZZ | Metric | 9 mm | 26 mm | 21.8 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-639 | Metric | 9 mm | 30 mm | 36.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-639-2RS | Metric | 9 mm | 30 mm | 37.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6000 | Metric | 10 mm | 26 mm | 19 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6300ZZ | Metric | 10 mm | 35 mm | 53 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6000-2RS | Metric | 10 mm | 26 mm | 19 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6000ZZ | Metric | 10 mm | 26 mm | 19 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6200 | Metric | 10 mm | 30 mm | 32 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6200-2RS | Metric | 10 mm | 30 mm | 32 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6200ZZ | Metric | 10 mm | 30 mm | 32 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6300 | Metric | 10 mm | 35 mm | 53 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6300-2RS | Metric | 10 mm | 35 mm | 53 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63800ZZ | Metric | 10 mm | 19 mm | 7.4 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6700 | Metric | 10 mm | 15 mm | 1.4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6700-2RS | Metric | 10 mm | 15 mm | 1.9 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6800ZZ | Metric | 10 mm | 19 mm | 5.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6700ZZ | Metric | 10 mm | 15 mm | 1.9 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6800 | Metric | 10 mm | 19 mm | 5.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63800-2RS | Metric | 10 mm | 19 mm | 7.4 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63800 | Metric | 10 mm | 19 mm | 7.4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6800-2RS | Metric | 10 mm | 19 mm | 5.6 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6900 | Metric | 10 mm | 22 mm | 10 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6900-2RS | Metric | 10 mm | 22 mm | 10 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6900ZZ | Metric | 10 mm | 22 mm | 10 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6001 | Metric | 12 mm | 28 mm | 22 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6301ZZ | Metric | 12 mm | 37 mm | 60 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6001-2RS | Metric | 12 mm | 28 mm | 22 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6001ZZ | Metric | 12 mm | 28 mm | 22 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6201-2RS | Metric | 12 mm | 32 mm | 37 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6201 | Metric | 12 mm | 32 mm | 37 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6301 | Metric | 12 mm | 37 mm | 60 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6301-2RS | Metric | 12 mm | 37 mm | 60 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6201ZZ | Metric | 12 mm | 32 mm | 37 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6801ZZ | Metric | 12 mm | 21 mm | 6.5 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6701 | Metric | 12 mm | 18 mm | 3.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6701-2RS | Metric | 12 mm | 18 mm | 3.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6801-2RS | Metric | 12 mm | 21 mm | 6.5 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63801 | Metric | 12 mm | 21 mm | 8.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6701ZZ | Metric | 12 mm | 18 mm | 3.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6801 | Metric | 12 mm | 21 mm | 6.5 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63801-2RS | Metric | 12 mm | 21 mm | 8.5 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6901ZZ | Metric | 12 mm | 24 mm | 12 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6901-2RS | Metric | 12 mm | 24 mm | 12 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6901 | Metric | 12 mm | 24 mm | 12 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63801ZZ | Metric | 12 mm | 21 mm | 8.5 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6002 | Metric | 15 mm | 32 mm | 30 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6202ZZ | Metric | 15 mm | 35 mm | 45 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6002-2RS | Metric | 15 mm | 32 mm | 30 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6202 | Metric | 15 mm | 35 mm | 45 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6002ZZ | Metric | 15 mm | 32 mm | 30 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6202-2RS | Metric | 15 mm | 35 mm | 45 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6302 | Metric | 15 mm | 42 mm | 82 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6302-2RS | Metric | 15 mm | 42 mm | 82 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6302ZZ | Metric | 15 mm | 42 mm | 82 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6702-2RS | Metric | 15 mm | 21 mm | 3.6 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6702ZZ | Metric | 15 mm | 21 mm | 3.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6702 | Metric | 15 mm | 21 mm | 3.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6802 | Metric | 15 mm | 24 mm | 7.6 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6802ZZ | Metric | 15 mm | 24 mm | 7.6 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63802ZZ | Metric | 15 mm | 24 mm | 10 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6902ZZ | Metric | 15 mm | 28 mm | 9 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63802-2RS | Metric | 15 mm | 24 mm | 10 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6902 | Metric | 15 mm | 28 mm | 9 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6902-2RS | Metric | 15 mm | 28 mm | 9 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6802-2RS | Metric | 15 mm | 24 mm | 7.6 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63802 | Metric | 15 mm | 24 mm | 10 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6003 | Metric | 17 mm | 35 mm | 39 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6203 | Metric | 17 mm | 40 mm | 65 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6003-2RS | Metric | 17 mm | 35 mm | 39 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6003ZZ | Metric | 17 mm | 35 mm | 39 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6203-2RS | Metric | 17 mm | 40 mm | 65 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6303 | Metric | 17 mm | 47 mm | 115 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6203ZZ | Metric | 17 mm | 40 mm | 65 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6303-2RS | Metric | 17 mm | 47 mm | 115 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6303ZZ | Metric | 17 mm | 47 mm | 115 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6703 | Metric | 17 mm | 23 mm | 4 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6703-2RS | Metric | 17 mm | 23 mm | 4 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6803 | Metric | 17 mm | 26 mm | 8.2 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6703ZZ | Metric | 17 mm | 23 mm | 4 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6803-2RS | Metric | 17 mm | 26 mm | 8.2 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6803ZZ | Metric | 17 mm | 26 mm | 8.2 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63803 | Metric | 17 mm | 26 mm | 11 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63803-2RS | Metric | 17 mm | 26 mm | 11 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63803ZZ | Metric | 17 mm | 26 mm | 11 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6903 | Metric | 17 mm | 30 mm | 20 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6903-2RS | Metric | 17 mm | 30 mm | 20 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6903ZZ | Metric | 17 mm | 30 mm | 20 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6004 | Metric | 20 mm | 42 mm | 69 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6304ZZ | Metric | 20 mm | 52 mm | 144 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6004ZZ | Metric | 20 mm | 42 mm | 69 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6204 | Metric | 20 mm | 47 mm | 106 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6204-2RS | Metric | 20 mm | 47 mm | 106 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6204ZZ | Metric | 20 mm | 47 mm | 106 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6304 | Metric | 20 mm | 52 mm | 144 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6004-2RS | Metric | 20 mm | 42 mm | 69 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6304-2RS | Metric | 20 mm | 52 mm | 144 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6804 | Metric | 20 mm | 32 mm | 18 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6804-2RS | Metric | 20 mm | 32 mm | 18 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6804ZZ | Metric | 20 mm | 32 mm | 18 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6704ZZ | Metric | 20 mm | 27 mm | 5.9 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6704-2RS | Metric | 20 mm | 27 mm | 5.9 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6704 | Metric | 20 mm | 27 mm | 5.9 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63804 | Metric | 20 mm | 32 mm | 24 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63804-2RS | Metric | 20 mm | 32 mm | 24 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63804ZZ | Metric | 20 mm | 32 mm | 24 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6904ZZ | Metric | 20 mm | 37 mm | 40 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6904 | Metric | 20 mm | 37 mm | 40 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6904-2RS | Metric | 20 mm | 37 mm | 40 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6005 | Metric | 25 mm | 47 mm | 80 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6205-2RS | Metric | 25 mm | 52 mm | 128 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6205ZZ | Metric | 25 mm | 52 mm | 128 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6005-2RS | Metric | 25 mm | 47 mm | 80 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6005ZZ | Metric | 25 mm | 47 mm | 80 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6205 | Metric | 25 mm | 52 mm | 128 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6305 | Metric | 25 mm | 62 mm | 232 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6305ZZ | Metric | 25 mm | 62 mm | 232 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6305-2RS | Metric | 25 mm | 62 mm | 232 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6705 | Metric | 25 mm | 32 mm | 7.1 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6705-2RS | Metric | 25 mm | 32 mm | 7.1 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6705ZZ | Metric | 25 mm | 32 mm | 7.1 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6805 | Metric | 25 mm | 37 mm | 24 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6805-2RS | Metric | 25 mm | 37 mm | 24 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6805ZZ | Metric | 25 mm | 37 mm | 24 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63805 | Metric | 25 mm | 37 mm | 32 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63805-2RS | Metric | 25 mm | 37 mm | 32 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63805ZZ | Metric | 25 mm | 37 mm | 32 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6905ZZ | Metric | 25 mm | 42 mm | 47 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6905 | Metric | 25 mm | 42 mm | 47 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6905-2RS | Metric | 25 mm | 42 mm | 47 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6006 | Metric | 30 mm | 55 mm | 116 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6006-2RS | Metric | 30 mm | 55 mm | 116 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6006ZZ | Metric | 30 mm | 55 mm | 116 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6206 | Metric | 30 mm | 62 mm | 199 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6206-2RS | Metric | 30 mm | 62 mm | 199 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6306 | Metric | 30 mm | 72 mm | 346 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6206ZZ | Metric | 30 mm | 62 mm | 199 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6306-2RS | Metric | 30 mm | 72 mm | 346 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6306ZZ | Metric | 30 mm | 72 mm | 346 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6706 | Metric | 30 mm | 37 mm | 8.3 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6806 | Metric | 30 mm | 42 mm | 27 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6706ZZ | Metric | 30 mm | 37 mm | 8.3 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6706-2RS | Metric | 30 mm | 37 mm | 8.3 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6806-2RS | Metric | 30 mm | 42 mm | 27 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6806ZZ | Metric | 30 mm | 42 mm | 27 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63806-2RS | Metric | 30 mm | 42 mm | 36 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63806 | Metric | 30 mm | 42 mm | 36 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-63806ZZ | Metric | 30 mm | 42 mm | 36 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6906 | Metric | 30 mm | 47 mm | 53 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6906-2RS | Metric | 30 mm | 47 mm | 53 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6906ZZ | Metric | 30 mm | 47 mm | 53 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6007 | Metric | 35 mm | 62 mm | 155 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6007ZZ | Metric | 35 mm | 62 mm | 155 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6007-2RS | Metric | 35 mm | 62 mm | 155 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6207 | Metric | 35 mm | 72 mm | 288 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6207-2RS | Metric | 35 mm | 72 mm | 288 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6207ZZ | Metric | 35 mm | 72 mm | 288 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6307-2RS | Metric | 35 mm | 80 mm | 457 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6307 | Metric | 35 mm | 80 mm | 457 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6307ZZ | Metric | 35 mm | 80 mm | 457 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6707 | Metric | 35 mm | 44 mm | 15 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6807 | Metric | 35 mm | 47 mm | 32 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6707-2RS | Metric | 35 mm | 44 mm | 15 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6807ZZ | Metric | 35 mm | 47 mm | 32 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6807-2RS | Metric | 35 mm | 47 mm | 32 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6707ZZ | Metric | 35 mm | 44 mm | 15 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6907 | Metric | 35 mm | 55 mm | 87 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6907-2RS | Metric | 35 mm | 55 mm | 87 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6907ZZ | Metric | 35 mm | 55 mm | 87 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6008 | Metric | 40 mm | 68 mm | 192 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6208ZZ | Metric | 40 mm | 80 mm | 366 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6308ZZ | Metric | 40 mm | 90 mm | 620 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6308 | Metric | 40 mm | 90 mm | 620 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6308-2RS | Metric | 40 mm | 90 mm | 620 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6208 | Metric | 40 mm | 80 mm | 366 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6208-2RS | Metric | 40 mm | 80 mm | 366 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6008-2RS | Metric | 40 mm | 68 mm | 192 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6008ZZ | Metric | 40 mm | 68 mm | 192 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6708 | Metric | 40 mm | 50 mm | 23 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6708-2RS | Metric | 40 mm | 50 mm | 23 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6708ZZ | Metric | 40 mm | 50 mm | 23 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6808 | Metric | 40 mm | 52 mm | 35 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6808-2RS | Metric | 40 mm | 52 mm | 35 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6808ZZ | Metric | 40 mm | 52 mm | 35 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6908 | Metric | 40 mm | 62 mm | 131 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6908ZZ | Metric | 40 mm | 62 mm | 131 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6908-2RS | Metric | 40 mm | 62 mm | 131 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6009 | Metric | 45 mm | 75 mm | 245 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6009-2RS | Metric | 45 mm | 75 mm | 245 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6009ZZ | Metric | 45 mm | 75 mm | 245 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6209 | Metric | 45 mm | 85 mm | 407 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6309 | Metric | 45 mm | 100 mm | 811 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6209ZZ | Metric | 45 mm | 85 mm | 407 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6209-2RS | Metric | 45 mm | 85 mm | 407 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6309-2RS | Metric | 45 mm | 100 mm | 811 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6309ZZ | Metric | 45 mm | 100 mm | 811 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6809-2RS | Metric | 45 mm | 58 mm | 42 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6709-2RS | Metric | 45 mm | 55 mm | 25 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6709ZZ | Metric | 45 mm | 55 mm | 25 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6709 | Metric | 45 mm | 55 mm | 25 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6809ZZ | Metric | 45 mm | 58 mm | 42 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6809 | Metric | 45 mm | 58 mm | 42 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6909 | Metric | 45 mm | 68 mm | 147 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6909-2RS | Metric | 45 mm | 68 mm | 147 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6909ZZ | Metric | 45 mm | 68 mm | 147 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6010 | Metric | 50 mm | 80 mm | 261 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6210 | Metric | 50 mm | 90 mm | 463 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6210-2RS | Metric | 50 mm | 90 mm | 463 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6010-2RS | Metric | 50 mm | 80 mm | 261 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6010ZZ | Metric | 50 mm | 80 mm | 261 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6310-2RS | Metric | 50 mm | 110 mm | 1050 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6310ZZ | Metric | 50 mm | 110 mm | 1050 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6310 | Metric | 50 mm | 110 mm | 1050 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6210ZZ | Metric | 50 mm | 90 mm | 463 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6910ZZ | Metric | 50 mm | 72 mm | 133 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6710 | Metric | 50 mm | 62 mm | 64 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6710ZZ | Metric | 50 mm | 62 mm | 64 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6710-2RS | Metric | 50 mm | 62 mm | 64 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6810-2RS | Metric | 50 mm | 65 mm | 52 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6810ZZ | Metric | 50 mm | 65 mm | 52 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6810 | Metric | 50 mm | 65 mm | 52 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6910 | Metric | 50 mm | 72 mm | 133 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6910-2RS | Metric | 50 mm | 72 mm | 133 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6011 | Metric | 55 mm | 90 mm | 373 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6011-2RS | Metric | 55 mm | 90 mm | 373 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6311ZZ | Metric | 55 mm | 120 mm | 1350 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6011ZZ | Metric | 55 mm | 90 mm | 373 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6211 | Metric | 55 mm | 100 mm | 599 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6211-2RS | Metric | 55 mm | 100 mm | 599 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6311 | Metric | 55 mm | 120 mm | 1350 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6211ZZ | Metric | 55 mm | 100 mm | 599 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6311-2RS | Metric | 55 mm | 120 mm | 1350 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6811 | Metric | 55 mm | 72 mm | 83 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6811-2RS | Metric | 55 mm | 72 mm | 83 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6811ZZ | Metric | 55 mm | 72 mm | 83 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6911 | Metric | 55 mm | 80 mm | 185 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6911-2RS | Metric | 55 mm | 80 mm | 185 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6911ZZ | Metric | 55 mm | 80 mm | 185 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6012 | Metric | 60 mm | 95 mm | 403 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6012ZZ | Metric | 60 mm | 95 mm | 403 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6012-2RS | Metric | 60 mm | 95 mm | 403 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6312ZZ | Metric | 60 mm | 130 mm | 1699 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6212 | Metric | 60 mm | 110 mm | 762 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6212-2RS | Metric | 60 mm | 110 mm | 762 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6212ZZ | Metric | 60 mm | 110 mm | 762 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6312-2RS | Metric | 60 mm | 130 mm | 1699 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6312 | Metric | 60 mm | 130 mm | 1699 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6812 | Metric | 60 mm | 78 mm | 104 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6812-2RS | Metric | 60 mm | 78 mm | 104 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6812ZZ | Metric | 60 mm | 78 mm | 104 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6912 | Metric | 60 mm | 85 mm | 192 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6912-2RS | Metric | 60 mm | 85 mm | 192 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6912ZZ | Metric | 60 mm | 85 mm | 192 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6013 | Metric | 65 mm | 100 mm | 430 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6013-2RS | Metric | 65 mm | 100 mm | 430 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6313ZZ | Metric | 65 mm | 140 mm | 2080 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6213ZZ | Metric | 65 mm | 120 mm | 979 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6313-2RS | Metric | 65 mm | 140 mm | 2080 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6313 | Metric | 65 mm | 140 mm | 2080 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6013ZZ | Metric | 65 mm | 100 mm | 430 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6213 | Metric | 65 mm | 120 mm | 979 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6213-2RS | Metric | 65 mm | 120 mm | 979 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6813ZZ | Metric | 65 mm | 85 mm | 126 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6813 | Metric | 65 mm | 85 mm | 126 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6813-2RS | Metric | 65 mm | 85 mm | 126 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6913 | Metric | 65 mm | 90 mm | 211 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6913-2RS | Metric | 65 mm | 90 mm | 211 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6913ZZ | Metric | 65 mm | 90 mm | 211 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6014 | Metric | 70 mm | 110 mm | 598 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6014-2RS | Metric | 70 mm | 110 mm | 598 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6014ZZ | Metric | 70 mm | 110 mm | 598 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6214 | Metric | 70 mm | 125 mm | 1070 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6214-2RS | Metric | 70 mm | 125 mm | 1070 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6214ZZ | Metric | 70 mm | 125 mm | 1070 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6314ZZ | Metric | 70 mm | 150 mm | 2530 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6314 | Metric | 70 mm | 150 mm | 2530 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6314-2RS | Metric | 70 mm | 150 mm | 2530 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6814 | Metric | 70 mm | 90 mm | 134 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6814-2RS | Metric | 70 mm | 90 mm | 134 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6814ZZ | Metric | 70 mm | 90 mm | 134 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6914 | Metric | 70 mm | 100 mm | 342 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6914-2RS | Metric | 70 mm | 100 mm | 342 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6914ZZ | Metric | 70 mm | 100 mm | 342 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6015 | Metric | 75 mm | 115 mm | 638 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6015-2RS | Metric | 75 mm | 115 mm | 638 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6015ZZ | Metric | 75 mm | 115 mm | 638 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6215 | Metric | 75 mm | 130 mm | 1170 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6215ZZ | Metric | 75 mm | 130 mm | 1170 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6215-2RS | Metric | 75 mm | 130 mm | 1170 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6315 | Metric | 75 mm | 160 mm | 3030 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6315-2RS | Metric | 75 mm | 160 mm | 3030 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6315ZZ | Metric | 75 mm | 160 mm | 3030 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6815-2RS | Metric | 75 mm | 95 mm | 142 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6815ZZ | Metric | 75 mm | 95 mm | 142 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6915 | Metric | 75 mm | 105 mm | 363 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6915-2RS | Metric | 75 mm | 105 mm | 363 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6915ZZ | Metric | 75 mm | 105 mm | 363 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6815 | Metric | 75 mm | 95 mm | 142 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6016 | Metric | 80 mm | 125 mm | 854 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6216ZZ | Metric | 80 mm | 140 mm | 1380 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6316-2RS | Metric | 80 mm | 170 mm | 3670 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6316 | Metric | 80 mm | 170 mm | 3670 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6316ZZ | Metric | 80 mm | 170 mm | 3670 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6016-2RS | Metric | 80 mm | 125 mm | 854 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6016ZZ | Metric | 80 mm | 125 mm | 854 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6216 | Metric | 80 mm | 140 mm | 1380 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6216-2RS | Metric | 80 mm | 140 mm | 1380 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6816ZZ | Metric | 80 mm | 100 mm | 150 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6816-2RS | Metric | 80 mm | 100 mm | 150 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6816 | Metric | 80 mm | 100 mm | 150 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6916 | Metric | 80 mm | 110 mm | 382 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6916-2RS | Metric | 80 mm | 110 mm | 382 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6916ZZ | Metric | 80 mm | 110 mm | 382 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6017 | Metric | 85 mm | 130 mm | 899 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6017-2RS | Metric | 85 mm | 130 mm | 899 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6017ZZ | Metric | 85 mm | 130 mm | 899 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6217 | Metric | 85 mm | 150 mm | 1740 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6217-2RS | Metric | 85 mm | 150 mm | 1740 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6317 | Metric | 85 mm | 180 mm | 4220 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6217ZZ | Metric | 85 mm | 150 mm | 1740 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6317-2RS | Metric | 85 mm | 180 mm | 4220 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6317ZZ | Metric | 85 mm | 180 mm | 4220 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6817-2RS | Metric | 85 mm | 110 mm | 266 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6817ZZ | Metric | 85 mm | 110 mm | 266 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6917 | Metric | 85 mm | 120 mm | 535 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6917-2RS | Metric | 85 mm | 120 mm | 535 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6917ZZ | Metric | 85 mm | 120 mm | 535 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6817 | Metric | 85 mm | 110 mm | 266 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6018 | Metric | 90 mm | 140 mm | 1163 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6018-2RS | Metric | 90 mm | 140 mm | 1163 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6218 | Metric | 90 mm | 160 mm | 2150 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6218ZZ | Metric | 90 mm | 160 mm | 2150 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6218-2RS | Metric | 90 mm | 160 mm | 2150 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6018ZZ | Metric | 90 mm | 140 mm | 1163 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6318 | Metric | 90 mm | 190 mm | 4920 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6318-2RS | Metric | 90 mm | 190 mm | 4920 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6318ZZ | Metric | 90 mm | 190 mm | 4290 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6818 | Metric | 90 mm | 115 mm | 279 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6818-2RS | Metric | 90 mm | 115 mm | 279 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6818ZZ | Metric | 90 mm | 115 mm | 279 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6918 | Metric | 90 mm | 125 mm | 565 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6918-2RS | Metric | 90 mm | 125 mm | 565 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6918ZZ | Metric | 90 mm | 125 mm | 565 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6019 | Metric | 95 mm | 145 mm | 1200 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6019-2RS | Metric | 95 mm | 145 mm | 1200 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6019ZZ | Metric | 95 mm | 145 mm | 1200 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6219 | Metric | 95 mm | 170 mm | 2590 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6219-2RS | Metric | 95 mm | 170 mm | 2590 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6219ZZ | Metric | 95 mm | 170 mm | 2590 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6319 | Metric | 95 mm | 200 mm | 5760 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6319-2RS | Metric | 95 mm | 200 mm | 5760 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6319ZZ | Metric | 95 mm | 200 mm | 5760 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6819ZZ | Metric | 95 mm | 120 mm | 279 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6819-2RS | Metric | 95 mm | 120 mm | 279 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6819 | Metric | 95 mm | 120 mm | 279 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6020 | Metric | 100 mm | 150 mm | 1250 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6020ZZ | Metric | 100 mm | 150 mm | 1250 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6020-2RS | Metric | 100 mm | 150 mm | 1250 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6220 | Metric | 100 mm | 180 mm | 3120 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6320 | Metric | 100 mm | 215 mm | 7040 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6220ZZ | Metric | 100 mm | 180 mm | 3120 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6220-2RS | Metric | 100 mm | 180 mm | 3120 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6320-2RS | Metric | 100 mm | 215 mm | 7040 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6320ZZ | Metric | 100 mm | 215 mm | 7040 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6021 | Metric | 105 mm | 160 mm | 1560 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6321-2RS | Metric | 105 mm | 225 mm | 8090 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6321ZZ | Metric | 105 mm | 225 mm | 8090 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6021-2RS | Metric | 105 mm | 160 mm | 1560 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6021ZZ | Metric | 105 mm | 160 mm | 1560 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6221-2RS | Metric | 105 mm | 190 mm | 3730 | Sealed | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6221ZZ | Metric | 105 mm | 190 mm | 3730 | Shielded | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6221 | Metric | 105 mm | 190 mm | 3730 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
| S316-6321 | Metric | 105 mm | 225 mm | 8090 | Open | 316 Stainless Steel | 316 Stainless Steel | 316 Stainless Steel |
REQUEST FOR QUOTE
