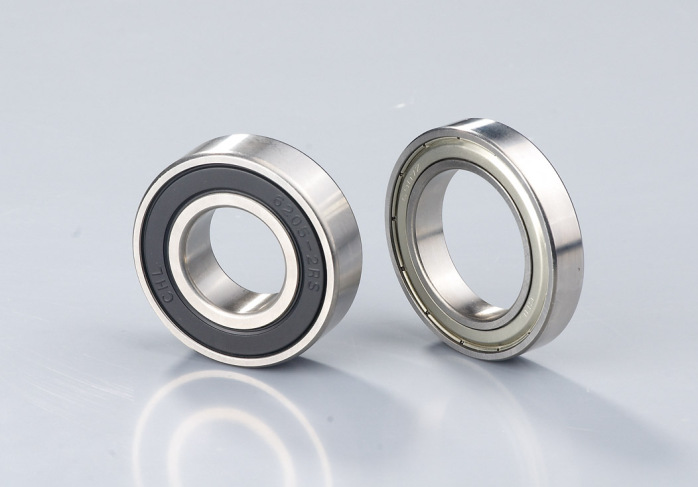

AISI304 Stainless Steel Ball Bearings
Same as ordinary stainless steel bearing advantages
(1) The corrosion resistance is good. Ordinary stainless steel is not corrosion resistant and will be corroded in an acid-base environment, while 304 316 stainless steel can be used in the surrounding environment.
(2) Anti-rust, it will never rust even if lifted in water
(3) Non-magnetic, generally 440 stainless steel bearing is great, it can be sucked up with force, but 304 316 is not, especially 316 material can be completely unattractive.
| Product Number | System of measurement | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|
| S304-R1-5 | Inch | 0.0938" | 0.3125" | 0.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R1-5-2RS | Inch | 0.0938" | 0.3125" | 1.15 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R1-5ZZ | Inch | 0.0938" | 0.3125" | 1.15 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R133ZZ | Inch | 0.0938" | 0.1875" | 0.15 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R133-2RS | Inch | 0.0938" | 0.1875" | 0.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R133 | Inch | 0.0938" | 0.1875" | 0.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R144 | Inch | 0.125" | 0.25" | 0.27 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R144ZZ | Inch | 0.125" | 0.25" | 0.4 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R144-2RS | Inch | 0.125" | 0.25" | 0.4 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2 | Inch | 0.125" | 0.375" | 1.04 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-5 | Inch | 0.125" | 0.3125" | 0.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-5-2RS | Inch | 0.125" | 0.3125" | 0.74 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-6-2RS | Inch | 0.125" | 0.375" | 1.23 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-6ZZ | Inch | 0.125" | 0.375" | 1.23 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-5ZZ | Inch | 0.125" | 0.3125" | 0.74 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-6 | Inch | 0.125" | 0.375" | 0.96 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2-2RS | Inch | 0.125" | 0.375" | 1.37 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2ZZ | Inch | 0.125" | 0.375" | 1.37 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2A | Inch | 0.125" | 0.5" | 3.3 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2A-2RS | Inch | 0.125" | 0.5" | 3.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R2AZZ | Inch | 0.125" | 0.5" | 3.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R155-2RS | Inch | 0.1563" | 0.3125" | 0.51 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R155 | Inch | 0.1563" | 0.3125" | 0.51 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R155ZZ | Inch | 0.1563" | 0.3125" | 0.61 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R156 | Inch | 0.1875" | 0.3125" | 0.4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R156-2RS | Inch | 0.1875" | 0.3125" | 0.45 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R156ZZ | Inch | 0.1875" | 0.3125" | 0.45 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R166 | Inch | 0.1875" | 0.375" | 0.81 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R166-2RS | Inch | 0.1875" | 0.375" | 0.85 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R166ZZ | Inch | 0.1875" | 0.375" | 0.85 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3A-2RS | Inch | 0.1875" | 0.625" | 5.08 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3ZZ | Inch | 0.1875" | 0.5" | 2.95 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3AZZ | Inch | 0.1875" | 0.625" | 5.08 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3 | Inch | 0.1875" | 0.5" | 2.21 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3-2RS | Inch | 0.1875" | 0.5" | 2.95 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R3A | Inch | 0.1875" | 0.625" | 5.08 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1601 | Inch | 0.1875" | 0.6875" | 4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1601-2RS | Inch | 0.1875" | 0.6875" | 4 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1601 ZZ | Inch | 0.1875" | 0.6875" | 4 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R168 | Inch | 0.25" | 0.375" | 0.57 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R188 | Inch | 0.25" | 0.5" | 1.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R188-2RS | Inch | 0.25" | 0.5" | 2.32 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4 | Inch | 0.25" | 0.625" | 4.46 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4ZZ | Inch | 0.25" | 0.625" | 4.54 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4-2RS | Inch | 0.25" | 0.625" | 4.54 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R188ZZ | Inch | 0.25" | 0.5" | 2.32 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R168-2RS | Inch | 0.25" | 0.375" | 0.60 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R168ZZ | Inch | 0.25" | 0.375" | 0.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4A | Inch | 0.25" | 0.75" | 7.48 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4A-2RS | Inch | 0.25" | 0.75" | 10 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R4AZZ | Inch | 0.25" | 0.75" | 10 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1602 ZZ | Inch | 0.25" | 0.6875" | 6.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1602 | Inch | 0.25" | 0.6875" | 6.3 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1602-2RS | Inch | 0.25" | 0.6875" | 6.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R1810 | Inch | 0.3125" | 0.5" | 1.39 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R1810-2RS | Inch | 0.3125" | 0.5" | 1.57 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R1810ZZ | Inch | 0.3125" | 0.5" | 1.57 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1603-2RS | Inch | 0.3125" | 0.875" | 9.5 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1603 ZZ | Inch | 0.3125" | 0.875" | 9.5 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1603 | Inch | 0.3125" | 0.875" | 9.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1605 | Inch | 0.3125" | 0.9062" | 16.8 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1605-2RS | Inch | 0.3125" | 0.9062" | 16.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1605 ZZ | Inch | 0.3125" | 0.9062" | 16.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R6ZZ | Inch | 0.375" | 0.875" | 11.7 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R6 | Inch | 0.375" | 0.875" | 9.02 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R6-2RS | Inch | 0.375" | 0.875" | 11.7 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1604 | Inch | 0.375" | 0.875" | 8.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1606-2RS | Inch | 0.375" | 0.9062" | 21.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1604 ZZ | Inch | 0.375" | 0.875" | 8.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1604-2RS | Inch | 0.375" | 0.875" | 8.6 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1606 ZZ | Inch | 0.375" | 0.9062" | 21.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1606 | Inch | 0.375" | 0.9062" | 21.8 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1614 | Inch | 0.375" | 1.125" | 35 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1614-2RS | Inch | 0.375" | 1.125" | 35 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1614 ZZ | Inch | 0.375" | 1.125" | 35 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1607 | Inch | 0.4375" | 0.9062" | 22.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1607-2RS | Inch | 0.4375" | 0.9062" | 22.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1607 ZZ | Inch | 0.4375" | 0.9062" | 22.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1615 | Inch | 0.4375" | 1.125" | 32.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1615-2RS | Inch | 0.4375" | 1.125" | 32.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1615 ZZ | Inch | 0.4375" | 1.125" | 32.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1620 | Inch | 0.4375" | 1.375" | 45.3 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1620-2RS | Inch | 0.4375" | 1.375" | 45.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1620 ZZ | Inch | 0.4375" | 1.375" | 45.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1616 ZZ | Inch | 0.5" | 1.125" | 30 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1621 | Inch | 0.5" | 1.375" | 48 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1616 | Inch | 0.5" | 1.125" | 30 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1616-2RS | Inch | 0.5" | 1.125" | 30 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1621-2RS | Inch | 0.5" | 1.375" | 48 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1621 ZZ | Inch | 0.5" | 1.375" | 48 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R8 | Inch | 0.5" | 1.125" | 11.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R8-2RS | Inch | 0.5" | 1.125" | 24.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R8ZZ | Inch | 0.5" | 1.125" | 24.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1622 | Inch | 0.5625" | 1.375" | 45.8 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1622-2RS | Inch | 0.5625" | 1.375" | 45.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1622 ZZ | Inch | 0.5625" | 1.375" | 45.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1623 | Inch | 0.625" | 1.375" | 40 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1623-2RS | Inch | 0.625" | 1.375" | 40 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1623 ZZ | Inch | 0.625" | 1.375" | 40 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1628-2RS | Inch | 0.625" | 1.625" | 72 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1628 ZZ | Inch | 0.625" | 1.625" | 72 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1628 | Inch | 0.625" | 1.625" | 72 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1633 | Inch | 0.625" | 1.75" | 92 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1633-2RS | Inch | 0.625" | 1.75" | 92 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1633 ZZ | Inch | 0.625" | 1.75" | 92 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R10 | Inch | 0.625" | 1.375" | 23.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R10-2RS | Inch | 0.625" | 1.375" | 38.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R10ZZ | Inch | 0.625" | 1.375" | 38.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1635 ZZ | Inch | 0.75" | 1.75" | 84.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1630 | Inch | 0.75" | 1.625" | 64.9 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1630 ZZ | Inch | 0.75" | 1.625" | 64.9 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1635-2RS | Inch | 0.75" | 1.75" | 84.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1630-2RS | Inch | 0.75" | 1.625" | 64.9 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1638 | Inch | 0.75" | 2" | 120.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1638-2RS | Inch | 0.75" | 2" | 120.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1638 ZZ | Inch | 0.75" | 2" | 120.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R12-2RS | Inch | 0.75" | 1.625" | 69.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R12 | Inch | 0.75" | 1.625" | 53.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R12ZZ | Inch | 0.75" | 1.625" | 69.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1640 ZZ | Inch | 0.875" | 2" | 112 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1640 | Inch | 0.875" | 2" | 112 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1640-2RS | Inch | 0.875" | 2" | 112 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R14 | Inch | 0.875" | 1.875" | 78 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R14ZZ | Inch | 0.875" | 1.875" | 78 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R14-2RS | Inch | 0.875" | 1.875" | 78 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1641 | Inch | 1" | 2" | 100.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1641-2RS | Inch | 1" | 2" | 100.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1641 ZZ | Inch | 1" | 2" | 100.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R16 | Inch | 1" | 2" | 87 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R16-2RS | Inch | 1" | 2" | 87 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R16ZZ | Inch | 1" | 2" | 87 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1652 | Inch | 1.125" | 2.5" | 210 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1652-2RS | Inch | 1.125" | 2.5" | 210 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1652 ZZ | Inch | 1.125" | 2.5" | 210 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R18ZZ | Inch | 1.125" | 2.125" | 91 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R18 | Inch | 1.125" | 2.125" | 91 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R18-2RS | Inch | 1.125" | 2.125" | 91 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1657 ZZ | Inch | 1.25" | 2.5625" | 215 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1654 | Inch | 1.25" | 2.5" | 190 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1654-2RS | Inch | 1.25" | 2.5" | 190 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1654 ZZ | Inch | 1.25" | 2.5" | 190 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1657-2RS | Inch | 1.25" | 2.5625" | 215 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1657 | Inch | 1.25" | 2.5625" | 215 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R20 | Inch | 1.25" | 2.25" | 102 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R20ZZ | Inch | 1.25" | 2.25" | 102 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R20-2RS | Inch | 1.25" | 2.25" | 102 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1658 | Inch | 1.3125" | 2.5625" | 200 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1658-2RS | Inch | 1.3125" | 2.5625" | 200 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-1658 ZZ | Inch | 1.3125" | 2.5625" | 200 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R22ZZ | Inch | 1.375" | 2.5" | 105 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R22 | Inch | 1.375" | 2.5" | 105 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R22-2RS | Inch | 1.375" | 2.5" | 105 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R24-2RS | Inch | 1.5" | 2.625" | 140 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R24 | Inch | 1.5" | 2.625" | 140 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-R24ZZ | Inch | 1.5" | 2.625" | 140 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR52 | Metric | 2 mm | 5 mm | 0.14 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682 | Metric | 2 mm | 5 mm | 0.15 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682-2RS | Metric | 2 mm | 5 mm | 0.15 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682ZZ | Metric | 2 mm | 5 mm | 0.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR52-2RS | Metric | 2 mm | 5 mm | 0.14 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692 | Metric | 2 mm | 6 mm | 0.28 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR52ZZ | Metric | 2 mm | 5 mm | 0.20 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692-2RS | Metric | 2 mm | 6 mm | 0.35 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR62 | Metric | 2 mm | 6 mm | 0.28 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692ZZ | Metric | 2 mm | 6 mm | 0.35 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR62-2RS | Metric | 2 mm | 6 mm | 0.28 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR62ZZ | Metric | 2 mm | 6 mm | 0.33 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602 | Metric | 2 mm | 7 mm | 0.50 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602-2RS | Metric | 2 mm | 7 mm | 0.6 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602ZZ | Metric | 2 mm | 7 mm | 0.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR72-2RS | Metric | 2 mm | 7 mm | 0.53 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR72 | Metric | 2 mm | 7 mm | 0.43 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR72ZZ | Metric | 2 mm | 7 mm | 0.53 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692X | Metric | 2.5 mm | 7 mm | 0.4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682X | Metric | 2.5 mm | 6 mm | 0.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682X-2RS | Metric | 2.5 mm | 6 mm | 0.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-682XZZ | Metric | 2.5 mm | 6 mm | 0.35 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692XZZ | Metric | 2.5 mm | 7 mm | 0.55 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-692X-2RS | Metric | 2.5 mm | 7 mm | 0.55 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR82X-2RS | Metric | 2.5 mm | 8 mm | 0.52 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602X | Metric | 2.5 mm | 8 mm | 0.61 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602X-2RS | Metric | 2.5 mm | 8 mm | 0.61 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-602XZZ | Metric | 2.5 mm | 8 mm | 0.85 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR82X | Metric | 2.5 mm | 8 mm | 0.52 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR82XZZ | Metric | 2.5 mm | 8 mm | 0.52 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR63-2RS | Metric | 3 mm | 6 mm | 0.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR63 | Metric | 3 mm | 6 mm | 0.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR83 | Metric | 3 mm | 8 mm | 0.51 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR63ZZ | Metric | 3 mm | 6 mm | 0.28 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-683-2RS | Metric | 3 mm | 7 mm | 0.45 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-683 | Metric | 3 mm | 7 mm | 0.32 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-683ZZ | Metric | 3 mm | 7 mm | 0.45 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-693 | Metric | 3 mm | 8 mm | 0.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-693ZZ | Metric | 3 mm | 8 mm | 0.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-693-2RS | Metric | 3 mm | 8 mm | 0.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR83-2RS | Metric | 3 mm | 8 mm | 0.51 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-603 | Metric | 3 mm | 9 mm | 0.84 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR83ZZ | Metric | 3 mm | 8 mm | 0.67 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-603-2RS | Metric | 3 mm | 9 mm | 0.84 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-633-2RS | Metric | 3 mm | 13 mm | 3.43 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-603ZZ | Metric | 3 mm | 9 mm | 1.13 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR93-2RS | Metric | 3 mm | 9 mm | 0.75 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR93 | Metric | 3 mm | 9 mm | 0.75 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR93ZZ | Metric | 3 mm | 9 mm | 1.15 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-623 | Metric | 3 mm | 10 mm | 1.45 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-623-2RS | Metric | 3 mm | 10 mm | 1.65 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-623ZZ | Metric | 3 mm | 10 mm | 1.65 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-633 | Metric | 3 mm | 13 mm | 3.27 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-633ZZ | Metric | 3 mm | 13 mm | 3.43 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR74 | Metric | 4 mm | 7 mm | 0.23 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR84 | Metric | 4 mm | 8 mm | 0.39 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR74-2RS | Metric | 4 mm | 7 mm | 0.23 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR74ZZ | Metric | 4 mm | 7 mm | 0.33 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR84-2RS | Metric | 4 mm | 8 mm | 0.39 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR84ZZ | Metric | 4 mm | 8 mm | 0.56 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-684-2RS | Metric | 4 mm | 9 mm | 1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-684 | Metric | 4 mm | 9 mm | 0.65 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-684ZZ | Metric | 4 mm | 9 mm | 1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR104 | Metric | 4 mm | 10 mm | 0.96 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR104-2RS | Metric | 4 mm | 10 mm | 1.33 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR104ZZ | Metric | 4 mm | 10 mm | 1.33 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-694 | Metric | 4 mm | 11 mm | 1.69 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-694-2RS | Metric | 4 mm | 11 mm | 1.75 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-694ZZ | Metric | 4 mm | 11 mm | 1.75 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-604-2RS | Metric | 4 mm | 12 mm | 2.34 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-604 | Metric | 4 mm | 12 mm | 2.19 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-624 | Metric | 4 mm | 13 mm | 3.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-604ZZ | Metric | 4 mm | 12 mm | 2.34 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-624ZZ | Metric | 4 mm | 13 mm | 3.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-624-2RS | Metric | 4 mm | 13 mm | 3.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-634 | Metric | 4 mm | 16 mm | 5.24 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-634ZZ | Metric | 4 mm | 16 mm | 5.44 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-634-2RS | Metric | 4 mm | 16 mm | 5.44 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR85-2RS | Metric | 5 mm | 8 mm | 0.34 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR85 | Metric | 5 mm | 8 mm | 0.25 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR105 | Metric | 5 mm | 10 mm | 0.91 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR85ZZ | Metric | 5 mm | 8 mm | 0.34 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR95 | Metric | 5 mm | 9 mm | 0.54 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR95-2RS | Metric | 5 mm | 9 mm | 0.58 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR95ZZ | Metric | 5 mm | 9 mm | 0.58 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-685 | Metric | 5 mm | 11 mm | 1.16 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR105-2RS | Metric | 5 mm | 10 mm | 1.26 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR105ZZ | Metric | 5 mm | 10 mm | 1.26 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-685ZZ | Metric | 5 mm | 11 mm | 1.93 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-685-2RS | Metric | 5 mm | 11 mm | 1.93 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR115 | Metric | 5 mm | 11 mm | 0.62 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR115ZZ | Metric | 5 mm | 11 mm | 0.62 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR115-2RS | Metric | 5 mm | 11 mm | 0.62 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-695 | Metric | 5 mm | 13 mm | 2.31 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-605ZZ | Metric | 5 mm | 14 mm | 3.75 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-695-2RS | Metric | 5 mm | 13 mm | 2.31 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-695ZZ | Metric | 5 mm | 13 mm | 2.31 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-605 | Metric | 5 mm | 14 mm | 3.46 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-605-2RS | Metric | 5 mm | 14 mm | 3.75 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-625 | Metric | 5 mm | 16 mm | 4.95 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-625-2RS | Metric | 5 mm | 16 mm | 5.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-625ZZ | Metric | 5 mm | 16 mm | 5.10 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-635-2RS | Metric | 5 mm | 19 mm | 8.89 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-635 | Metric | 5 mm | 19 mm | 8.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-635ZZ | Metric | 5 mm | 19 mm | 8.89 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR106 | Metric | 6 mm | 10 mm | 0.55 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR106-2RS | Metric | 6 mm | 10 mm | 0.7 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR126 | Metric | 6 mm | 12 mm | 1.25 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR106ZZ | Metric | 6 mm | 10 mm | 0.7 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR126-2RS | Metric | 6 mm | 12 mm | 1.66 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-686-2RS | Metric | 6 mm | 13 mm | 2.68 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR126ZZ | Metric | 6 mm | 12 mm | 1.66 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-686 | Metric | 6 mm | 13 mm | 1.87 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-696 | Metric | 6 mm | 15 mm | 3.85 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-686ZZ | Metric | 6 mm | 13 mm | 2.68 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-696-2RS | Metric | 6 mm | 15 mm | 3.65 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-696ZZ | Metric | 6 mm | 15 mm | 3.65 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-606 | Metric | 6 mm | 17 mm | 5.94 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-606-2RS | Metric | 6 mm | 17 mm | 6.89 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-606ZZ | Metric | 6 mm | 17 mm | 6.89 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-626 | Metric | 6 mm | 19 mm | 8.12 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-626-2RS | Metric | 6 mm | 19 mm | 8.65 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-626ZZ | Metric | 6 mm | 19 mm | 8.65 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-636 | Metric | 6 mm | 22 mm | 13.9 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-636ZZ | Metric | 6 mm | 22 mm | 14.5 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-636-2RS | Metric | 6 mm | 22 mm | 14.5 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR117 | Metric | 7 mm | 11 mm | 0.59 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR117-2RS | Metric | 7 mm | 11 mm | 0.71 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR117ZZ | Metric | 7 mm | 11 mm | 0.71 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR137 | Metric | 7 mm | 13 mm | 1.52 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR137-2RS | Metric | 7 mm | 13 mm | 2.01 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR137ZZ | Metric | 7 mm | 13 mm | 2.01 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-687-2RS | Metric | 7 mm | 14 mm | 2.95 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-687 | Metric | 7 mm | 14 mm | 2.03 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-687ZZ | Metric | 7 mm | 14 mm | 2.95 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-697 | Metric | 7 mm | 17 mm | 5.26 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-697-2RS | Metric | 7 mm | 17 mm | 5.01 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-697ZZ | Metric | 7 mm | 17 mm | 5.01 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-607-2RS | Metric | 7 mm | 19 mm | 8.24 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-607 | Metric | 7 mm | 19 mm | 7.8 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-607ZZ | Metric | 7 mm | 19 mm | 8.24 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-627 | Metric | 7 mm | 22 mm | 12.7 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-627-2RS | Metric | 7 mm | 22 mm | 13.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-627ZZ | Metric | 7 mm | 22 mm | 13.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-637 | Metric | 7 mm | 26 mm | 24.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-637-2RS | Metric | 7 mm | 26 mm | 25.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-637ZZ | Metric | 7 mm | 26 mm | 25.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR128 | Metric | 8 mm | 12 mm | 0.7 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR128ZZ | Metric | 8 mm | 12 mm | 0.99 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR128-2RS | Metric | 8 mm | 12 mm | 0.99 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR148 | Metric | 8 mm | 14 mm | 1.9 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR148-2RS | Metric | 8 mm | 14 mm | 2.19 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-MR148ZZ | Metric | 8 mm | 14 mm | 2.19 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-688 | Metric | 8 mm | 16 mm | 3.11 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-688-2RS | Metric | 8 mm | 16 mm | 4.05 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-698 | Metric | 8 mm | 19 mm | 7.12 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-688ZZ | Metric | 8 mm | 16 mm | 4.05 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-698-2RS | Metric | 8 mm | 19 mm | 7.57 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-698ZZ | Metric | 8 mm | 19 mm | 7.57 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-608 | Metric | 8 mm | 22 mm | 11.8 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-608-2RS | Metric | 8 mm | 22 mm | 12.9 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-608ZZ | Metric | 8 mm | 22 mm | 12.9 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-628 | Metric | 8 mm | 24 mm | 17.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-638 | Metric | 8 mm | 28 mm | 28.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-628ZZ | Metric | 8 mm | 24 mm | 18.5 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-628-2RS | Metric | 8 mm | 24 mm | 18.5 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-638ZZ | Metric | 8 mm | 28 mm | 30.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-638-2RS | Metric | 8 mm | 28 mm | 30.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-679 | Metric | 9 mm | 14 mm | 1.35 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-679-2RS | Metric | 9 mm | 14 mm | 1.98 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-679ZZ | Metric | 9 mm | 14 mm | 1.98 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-689 | Metric | 9 mm | 17 mm | 3.41 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-689ZZ | Metric | 9 mm | 17 mm | 4.38 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-689-2RS | Metric | 9 mm | 17 mm | 4.38 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-699-2RS | Metric | 9 mm | 20 mm | 8.54 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-699 | Metric | 9 mm | 20 mm | 8.38 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-699ZZ | Metric | 9 mm | 20 mm | 8.54 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-609 | Metric | 9 mm | 24 mm | 14.7 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-609-2RS | Metric | 9 mm | 24 mm | 16 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-609ZZ | Metric | 9 mm | 24 mm | 16 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-629 | Metric | 9 mm | 26 mm | 19 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-629-2RS | Metric | 9 mm | 26 mm | 21.8 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-629ZZ | Metric | 9 mm | 26 mm | 21.8 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-639 | Metric | 9 mm | 30 mm | 36.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-639-2RS | Metric | 9 mm | 30 mm | 37.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-639ZZ | Metric | 9 mm | 30 mm | 37.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6200 | Metric | 10 mm | 30 mm | 32 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6000 | Metric | 10 mm | 26 mm | 19 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6000-2RS | Metric | 10 mm | 26 mm | 19 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6000ZZ | Metric | 10 mm | 26 mm | 19 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6200-2RS | Metric | 10 mm | 30 mm | 32 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6200ZZ | Metric | 10 mm | 30 mm | 32 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6300 | Metric | 10 mm | 35 mm | 53 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6300ZZ | Metric | 10 mm | 35 mm | 53 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6300-2RS | Metric | 10 mm | 35 mm | 53 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6800 | Metric | 10 mm | 19 mm | 5.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6700 | Metric | 10 mm | 15 mm | 1.4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6700-2RS | Metric | 10 mm | 15 mm | 1.9 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6700ZZ | Metric | 10 mm | 15 mm | 1.9 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6800-2RS | Metric | 10 mm | 19 mm | 5.6 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6800ZZ | Metric | 10 mm | 19 mm | 5.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63800 | Metric | 10 mm | 19 mm | 7.4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63800-2RS | Metric | 10 mm | 19 mm | 7.4 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63800ZZ | Metric | 10 mm | 19 mm | 7.4 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6900 | Metric | 10 mm | 22 mm | 10 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6900-2RS | Metric | 10 mm | 22 mm | 10 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6900ZZ | Metric | 10 mm | 22 mm | 10 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6001-2RS | Metric | 12 mm | 28 mm | 22 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6001 | Metric | 12 mm | 28 mm | 22 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6201 | Metric | 12 mm | 32 mm | 37 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6001ZZ | Metric | 12 mm | 28 mm | 22 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6201ZZ | Metric | 12 mm | 32 mm | 37 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6201-2RS | Metric | 12 mm | 32 mm | 37 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6301-2RS | Metric | 12 mm | 37 mm | 60 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6301 | Metric | 12 mm | 37 mm | 60 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6301ZZ | Metric | 12 mm | 37 mm | 60 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6701 | Metric | 12 mm | 18 mm | 3.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6701-2RS | Metric | 12 mm | 18 mm | 3.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6701ZZ | Metric | 12 mm | 18 mm | 3.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6801 | Metric | 12 mm | 21 mm | 6.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6801-2RS | Metric | 12 mm | 21 mm | 6.5 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6801ZZ | Metric | 12 mm | 21 mm | 6.5 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63801 | Metric | 12 mm | 21 mm | 8.5 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63801-2RS | Metric | 12 mm | 21 mm | 8.5 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6901 | Metric | 12 mm | 24 mm | 12 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63801ZZ | Metric | 12 mm | 21 mm | 8.5 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6901-2RS | Metric | 12 mm | 24 mm | 12 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6901ZZ | Metric | 12 mm | 24 mm | 12 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6002 | Metric | 15 mm | 32 mm | 30 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6002-2RS | Metric | 15 mm | 32 mm | 30 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6002ZZ | Metric | 15 mm | 32 mm | 30 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6202 | Metric | 15 mm | 35 mm | 45 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6202-2RS | Metric | 15 mm | 35 mm | 45 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6202ZZ | Metric | 15 mm | 35 mm | 45 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6302-2RS | Metric | 15 mm | 42 mm | 82 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6302 | Metric | 15 mm | 42 mm | 82 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6302ZZ | Metric | 15 mm | 42 mm | 82 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6702 | Metric | 15 mm | 21 mm | 3.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6702ZZ | Metric | 15 mm | 21 mm | 3.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6702-2RS | Metric | 15 mm | 21 mm | 3.6 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6802 | Metric | 15 mm | 24 mm | 7.6 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6802-2RS | Metric | 15 mm | 24 mm | 7.6 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6802ZZ | Metric | 15 mm | 24 mm | 7.6 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63802 | Metric | 15 mm | 24 mm | 10 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63802-2RS | Metric | 15 mm | 24 mm | 10 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63802ZZ | Metric | 15 mm | 24 mm | 10 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6902 | Metric | 15 mm | 28 mm | 9 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6902-2RS | Metric | 15 mm | 28 mm | 9 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6902ZZ | Metric | 15 mm | 28 mm | 9 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6003 | Metric | 17 mm | 35 mm | 39 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6003-2RS | Metric | 17 mm | 35 mm | 39 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6303 | Metric | 17 mm | 47 mm | 115 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6003ZZ | Metric | 17 mm | 35 mm | 39 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6203 | Metric | 17 mm | 40 mm | 65 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6203-2RS | Metric | 17 mm | 40 mm | 65 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6203ZZ | Metric | 17 mm | 40 mm | 65 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6303ZZ | Metric | 17 mm | 47 mm | 115 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6303-2RS | Metric | 17 mm | 47 mm | 115 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6803-2RS | Metric | 17 mm | 26 mm | 8.2 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6703 | Metric | 17 mm | 23 mm | 4 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6703-2RS | Metric | 17 mm | 23 mm | 4 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6703ZZ | Metric | 17 mm | 23 mm | 4 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6803 | Metric | 17 mm | 26 mm | 8.2 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6803ZZ | Metric | 17 mm | 26 mm | 8.2 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63803 | Metric | 17 mm | 26 mm | 11 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63803ZZ | Metric | 17 mm | 26 mm | 11 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63803-2RS | Metric | 17 mm | 26 mm | 11 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6903 | Metric | 17 mm | 30 mm | 20 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6903-2RS | Metric | 17 mm | 30 mm | 20 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6903ZZ | Metric | 17 mm | 30 mm | 20 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6004 | Metric | 20 mm | 42 mm | 69 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6204-2RS | Metric | 20 mm | 47 mm | 106 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6004ZZ | Metric | 20 mm | 42 mm | 69 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6004-2RS | Metric | 20 mm | 42 mm | 69 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6204 | Metric | 20 mm | 47 mm | 106 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6304ZZ | Metric | 20 mm | 52 mm | 144 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6204ZZ | Metric | 20 mm | 47 mm | 106 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6304 | Metric | 20 mm | 52 mm | 144 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6304-2RS | Metric | 20 mm | 52 mm | 144 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6704ZZ | Metric | 20 mm | 27 mm | 5.9 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6704-2RS | Metric | 20 mm | 27 mm | 5.9 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6704 | Metric | 20 mm | 27 mm | 5.9 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6804 | Metric | 20 mm | 32 mm | 18 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6804-2RS | Metric | 20 mm | 32 mm | 18 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6804ZZ | Metric | 20 mm | 32 mm | 18 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63804-2RS | Metric | 20 mm | 32 mm | 24 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63804 | Metric | 20 mm | 32 mm | 24 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6904 | Metric | 20 mm | 37 mm | 40 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63804ZZ | Metric | 20 mm | 32 mm | 24 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6904-2RS | Metric | 20 mm | 37 mm | 40 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6904ZZ | Metric | 20 mm | 37 mm | 40 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6005 | Metric | 25 mm | 47 mm | 80 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6005-2RS | Metric | 25 mm | 47 mm | 80 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6205 | Metric | 25 mm | 52 mm | 128 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6005ZZ | Metric | 25 mm | 47 mm | 80 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6205-2RS | Metric | 25 mm | 52 mm | 128 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6305 | Metric | 25 mm | 62 mm | 232 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6205ZZ | Metric | 25 mm | 52 mm | 128 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6305-2RS | Metric | 25 mm | 62 mm | 232 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6305ZZ | Metric | 25 mm | 62 mm | 232 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6705 | Metric | 25 mm | 32 mm | 7.1 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6705ZZ | Metric | 25 mm | 32 mm | 7.1 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6705-2RS | Metric | 25 mm | 32 mm | 7.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6805 | Metric | 25 mm | 37 mm | 24 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6805-2RS | Metric | 25 mm | 37 mm | 24 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6805ZZ | Metric | 25 mm | 37 mm | 24 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63805 | Metric | 25 mm | 37 mm | 32 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63805-2RS | Metric | 25 mm | 37 mm | 32 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63805ZZ | Metric | 25 mm | 37 mm | 32 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6905 | Metric | 25 mm | 42 mm | 47 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6905-2RS | Metric | 25 mm | 42 mm | 47 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6905ZZ | Metric | 25 mm | 42 mm | 47 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6006-2RS | Metric | 30 mm | 55 mm | 116 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6006 | Metric | 30 mm | 55 mm | 116 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6006ZZ | Metric | 30 mm | 55 mm | 116 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6306 | Metric | 30 mm | 72 mm | 346 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6206 | Metric | 30 mm | 62 mm | 199 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6206-2RS | Metric | 30 mm | 62 mm | 199 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6206ZZ | Metric | 30 mm | 62 mm | 199 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6306-2RS | Metric | 30 mm | 72 mm | 346 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6306ZZ | Metric | 30 mm | 72 mm | 346 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6706ZZ | Metric | 30 mm | 37 mm | 8.3 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6706-2RS | Metric | 30 mm | 37 mm | 8.3 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6706 | Metric | 30 mm | 37 mm | 8.3 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6806 | Metric | 30 mm | 42 mm | 27 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6806-2RS | Metric | 30 mm | 42 mm | 27 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6806ZZ | Metric | 30 mm | 42 mm | 27 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63806 | Metric | 30 mm | 42 mm | 36 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63806-2RS | Metric | 30 mm | 42 mm | 36 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-63806ZZ | Metric | 30 mm | 42 mm | 36 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6906 | Metric | 30 mm | 47 mm | 53 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6906-2RS | Metric | 30 mm | 47 mm | 53 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6906ZZ | Metric | 30 mm | 47 mm | 53 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6007-2RS | Metric | 35 mm | 62 mm | 155 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6007 | Metric | 35 mm | 62 mm | 155 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6007ZZ | Metric | 35 mm | 62 mm | 155 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6207 | Metric | 35 mm | 72 mm | 288 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6207-2RS | Metric | 35 mm | 72 mm | 288 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6207ZZ | Metric | 35 mm | 72 mm | 288 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6307 | Metric | 35 mm | 80 mm | 457 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6307-2RS | Metric | 35 mm | 80 mm | 457 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6307ZZ | Metric | 35 mm | 80 mm | 457 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6707 | Metric | 35 mm | 44 mm | 15 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6707-2RS | Metric | 35 mm | 44 mm | 15 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6707ZZ | Metric | 35 mm | 44 mm | 15 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6807 | Metric | 35 mm | 47 mm | 32 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6807-2RS | Metric | 35 mm | 47 mm | 32 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6807ZZ | Metric | 35 mm | 47 mm | 32 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6907-2RS | Metric | 35 mm | 55 mm | 87 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6907 | Metric | 35 mm | 55 mm | 87 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6907ZZ | Metric | 35 mm | 55 mm | 87 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6008 | Metric | 40 mm | 68 mm | 192 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6008-2RS | Metric | 40 mm | 68 mm | 192 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6308-2RS | Metric | 40 mm | 90 mm | 620 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6008ZZ | Metric | 40 mm | 68 mm | 192 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6208 | Metric | 40 mm | 80 mm | 366 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6208-2RS | Metric | 40 mm | 80 mm | 366 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6208ZZ | Metric | 40 mm | 80 mm | 366 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6308 | Metric | 40 mm | 90 mm | 620 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6308ZZ | Metric | 40 mm | 90 mm | 620 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6808 | Metric | 40 mm | 52 mm | 35 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6708 | Metric | 40 mm | 50 mm | 23 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6708-2RS | Metric | 40 mm | 50 mm | 23 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6708ZZ | Metric | 40 mm | 50 mm | 23 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6808-2RS | Metric | 40 mm | 52 mm | 35 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6908 | Metric | 40 mm | 62 mm | 131 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6808ZZ | Metric | 40 mm | 52 mm | 35 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6908-2RS | Metric | 40 mm | 62 mm | 131 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6908ZZ | Metric | 40 mm | 62 mm | 131 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6009 | Metric | 45 mm | 75 mm | 245 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6209 | Metric | 45 mm | 85 mm | 407 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6009-2RS | Metric | 45 mm | 75 mm | 245 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6009ZZ | Metric | 45 mm | 75 mm | 245 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6209-2RS | Metric | 45 mm | 85 mm | 407 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6309 | Metric | 45 mm | 100 mm | 811 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6209ZZ | Metric | 45 mm | 85 mm | 407 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6309-2RS | Metric | 45 mm | 100 mm | 811 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6309ZZ | Metric | 45 mm | 100 mm | 811 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6809 | Metric | 45 mm | 58 mm | 42 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6709 | Metric | 45 mm | 55 mm | 25 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6709-2RS | Metric | 45 mm | 55 mm | 25 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6709ZZ | Metric | 45 mm | 55 mm | 25 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6809-2RS | Metric | 45 mm | 58 mm | 42 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6809ZZ | Metric | 45 mm | 58 mm | 42 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6909 | Metric | 45 mm | 68 mm | 147 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6909-2RS | Metric | 45 mm | 68 mm | 147 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6909ZZ | Metric | 45 mm | 68 mm | 147 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6010 | Metric | 50 mm | 80 mm | 261 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6210 | Metric | 50 mm | 90 mm | 463 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6010-2RS | Metric | 50 mm | 80 mm | 261 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6010ZZ | Metric | 50 mm | 80 mm | 261 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6210-2RS | Metric | 50 mm | 90 mm | 463 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6210ZZ | Metric | 50 mm | 90 mm | 463 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6310 | Metric | 50 mm | 110 mm | 1050 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6310-2RS | Metric | 50 mm | 110 mm | 1050 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6310ZZ | Metric | 50 mm | 110 mm | 1050 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6710ZZ | Metric | 50 mm | 62 mm | 64 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6710 | Metric | 50 mm | 62 mm | 64 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6710-2RS | Metric | 50 mm | 62 mm | 64 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6810 | Metric | 50 mm | 65 mm | 52 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6910ZZ | Metric | 50 mm | 72 mm | 133 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6810-2RS | Metric | 50 mm | 65 mm | 52 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6810ZZ | Metric | 50 mm | 65 mm | 52 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6910 | Metric | 50 mm | 72 mm | 133 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6910-2RS | Metric | 50 mm | 72 mm | 133 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6011 | Metric | 55 mm | 90 mm | 373 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6011-2RS | Metric | 55 mm | 90 mm | 373 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6211 | Metric | 55 mm | 100 mm | 599 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6011ZZ | Metric | 55 mm | 90 mm | 373 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6211-2RS | Metric | 55 mm | 100 mm | 599 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6311 | Metric | 55 mm | 120 mm | 1350 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6211ZZ | Metric | 55 mm | 100 mm | 599 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6311ZZ | Metric | 55 mm | 120 mm | 1350 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6311-2RS | Metric | 55 mm | 120 mm | 1350 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6811 | Metric | 55 mm | 72 mm | 83 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6811-2RS | Metric | 55 mm | 72 mm | 83 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6811ZZ | Metric | 55 mm | 72 mm | 83 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6911 | Metric | 55 mm | 80 mm | 185 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6911-2RS | Metric | 55 mm | 80 mm | 185 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6911ZZ | Metric | 55 mm | 80 mm | 185 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6012ZZ | Metric | 60 mm | 95 mm | 403 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6012 | Metric | 60 mm | 95 mm | 403 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6012-2RS | Metric | 60 mm | 95 mm | 403 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6212 | Metric | 60 mm | 110 mm | 762 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6212ZZ | Metric | 60 mm | 110 mm | 762 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6212-2RS | Metric | 60 mm | 110 mm | 762 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6312 | Metric | 60 mm | 130 mm | 1699 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6312-2RS | Metric | 60 mm | 130 mm | 1699 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6312ZZ | Metric | 60 mm | 130 mm | 1699 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6812 | Metric | 60 mm | 78 mm | 104 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6812-2RS | Metric | 60 mm | 78 mm | 104 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6812ZZ | Metric | 60 mm | 78 mm | 104 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6912 | Metric | 60 mm | 85 mm | 192 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6912ZZ | Metric | 60 mm | 85 mm | 192 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6912-2RS | Metric | 60 mm | 85 mm | 192 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6213-2RS | Metric | 65 mm | 120 mm | 979 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6013 | Metric | 65 mm | 100 mm | 430 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6013ZZ | Metric | 65 mm | 100 mm | 430 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6013-2RS | Metric | 65 mm | 100 mm | 430 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6213 | Metric | 65 mm | 120 mm | 979 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6313 | Metric | 65 mm | 140 mm | 2080 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6213ZZ | Metric | 65 mm | 120 mm | 979 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6313-2RS | Metric | 65 mm | 140 mm | 2080 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6313ZZ | Metric | 65 mm | 140 mm | 2080 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6813 | Metric | 65 mm | 85 mm | 126 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6813-2RS | Metric | 65 mm | 85 mm | 126 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6813ZZ | Metric | 65 mm | 85 mm | 126 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6913 | Metric | 65 mm | 90 mm | 211 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6913-2RS | Metric | 65 mm | 90 mm | 211 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6913ZZ | Metric | 65 mm | 90 mm | 211 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6014 | Metric | 70 mm | 110 mm | 598 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6014-2RS | Metric | 70 mm | 110 mm | 598 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6014ZZ | Metric | 70 mm | 110 mm | 598 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6214-2RS | Metric | 70 mm | 125 mm | 1070 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6214 | Metric | 70 mm | 125 mm | 1070 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6214ZZ | Metric | 70 mm | 125 mm | 1070 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6314 | Metric | 70 mm | 150 mm | 2530 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6314-2RS | Metric | 70 mm | 150 mm | 2530 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6314ZZ | Metric | 70 mm | 150 mm | 2530 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6814 | Metric | 70 mm | 90 mm | 134 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6814-2RS | Metric | 70 mm | 90 mm | 8.1 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6814ZZ | Metric | 70 mm | 90 mm | 134 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6914 | Metric | 70 mm | 100 mm | 342 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6914ZZ | Metric | 70 mm | 100 mm | 342 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6914-2RS | Metric | 70 mm | 100 mm | 342 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6015 | Metric | 75 mm | 115 mm | 638 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6015-2RS | Metric | 75 mm | 115 mm | 638 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6015ZZ | Metric | 75 mm | 115 mm | 638 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6215 | Metric | 75 mm | 130 mm | 1170 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6215ZZ | Metric | 75 mm | 130 mm | 1170 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6215-2RS | Metric | 75 mm | 130 mm | 1170 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6315 | Metric | 75 mm | 160 mm | 3030 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6315-2RS | Metric | 75 mm | 160 mm | 3030 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6315ZZ | Metric | 75 mm | 160 mm | 3030 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6815 | Metric | 75 mm | 95 mm | 142 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6815-2RS | Metric | 75 mm | 95 mm | 142 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6815ZZ | Metric | 75 mm | 95 mm | 142 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6915 | Metric | 75 mm | 105 mm | 363 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6915-2RS | Metric | 75 mm | 105 mm | 363 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6915ZZ | Metric | 75 mm | 105 mm | 363 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6016-2RS | Metric | 80 mm | 125 mm | 854 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6016 | Metric | 80 mm | 125 mm | 854 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6216 | Metric | 80 mm | 140 mm | 1380 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6216-2RS | Metric | 80 mm | 140 mm | 1380 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6016ZZ | Metric | 80 mm | 125 mm | 854 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6216ZZ | Metric | 80 mm | 140 mm | 1380 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6316 | Metric | 80 mm | 170 mm | 3670 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6316ZZ | Metric | 80 mm | 170 mm | 3670 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6316-2RS | Metric | 80 mm | 170 mm | 3670 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6816 | Metric | 80 mm | 100 mm | 150 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6816-2RS | Metric | 80 mm | 100 mm | 150 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6816ZZ | Metric | 80 mm | 100 mm | 150 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6916 | Metric | 80 mm | 110 mm | 382 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6916-2RS | Metric | 80 mm | 110 mm | 382 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6916ZZ | Metric | 80 mm | 110 mm | 382 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6017ZZ | Metric | 85 mm | 130 mm | 899 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6017 | Metric | 85 mm | 130 mm | 899 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6017-2RS | Metric | 85 mm | 130 mm | 899 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6217 | Metric | 85 mm | 150 mm | 1740 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6217-2RS | Metric | 85 mm | 150 mm | 1740 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6217ZZ | Metric | 85 mm | 150 mm | 1740 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6317 | Metric | 85 mm | 180 mm | 4220 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6317-2RS | Metric | 85 mm | 180 mm | 4220 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6317ZZ | Metric | 85 mm | 180 mm | 4220 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6817 | Metric | 85 mm | 110 mm | 266 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6817-2RS | Metric | 85 mm | 110 mm | 266 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6817ZZ | Metric | 85 mm | 110 mm | 266 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6917 | Metric | 85 mm | 120 mm | 535 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6917-2RS | Metric | 85 mm | 120 mm | 535 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6917ZZ | Metric | 85 mm | 120 mm | 535 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6018 | Metric | 90 mm | 140 mm | 1163 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6018-2RS | Metric | 90 mm | 140 mm | 1163 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6018ZZ | Metric | 90 mm | 140 mm | 1163 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6218 | Metric | 90 mm | 160 mm | 2150 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6218-2RS | Metric | 90 mm | 160 mm | 2150 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6218ZZ | Metric | 90 mm | 160 mm | 2150 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6318 | Metric | 90 mm | 190 mm | 4920 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6318-2RS | Metric | 90 mm | 190 mm | 4920 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6318ZZ | Metric | 90 mm | 190 mm | 4290 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6818 | Metric | 90 mm | 115 mm | 279 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6818-2RS | Metric | 90 mm | 115 mm | 279 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6818ZZ | Metric | 90 mm | 115 mm | 279 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6918 | Metric | 90 mm | 125 mm | 565 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6918-2RS | Metric | 90 mm | 125 mm | 565 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6918ZZ | Metric | 90 mm | 125 mm | 565 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6019 | Metric | 95 mm | 145 mm | 1200 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6019-2RS | Metric | 95 mm | 145 mm | 1200 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6019ZZ | Metric | 95 mm | 145 mm | 1200 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6219 | Metric | 95 mm | 170 mm | 2590 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6219-2RS | Metric | 95 mm | 170 mm | 2590 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6219ZZ | Metric | 95 mm | 170 mm | 2590 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6319 | Metric | 95 mm | 200 mm | 5760 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6319-2RS | Metric | 95 mm | 200 mm | 5760 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6319ZZ | Metric | 95 mm | 200 mm | 5760 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6819 | Metric | 95 mm | 120 mm | 279 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6819ZZ | Metric | 95 mm | 120 mm | 279 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6819-2RS | Metric | 95 mm | 120 mm | 279 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6020 | Metric | 100 mm | 150 mm | 1250 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6020-2RS | Metric | 100 mm | 150 mm | 1250 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6020ZZ | Metric | 100 mm | 150 mm | 1250 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6220 | Metric | 100 mm | 180 mm | 3120 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6220-2RS | Metric | 100 mm | 180 mm | 3120 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6220ZZ | Metric | 100 mm | 180 mm | 3120 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6320 | Metric | 100 mm | 215 mm | 7040 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6320-2RS | Metric | 100 mm | 215 mm | 7040 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6320ZZ | Metric | 100 mm | 215 mm | 7040 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6021 | Metric | 105 mm | 160 mm | 1560 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6221-2RS | Metric | 105 mm | 190 mm | 3730 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6021-2RS | Metric | 105 mm | 160 mm | 1560 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6021ZZ | Metric | 105 mm | 160 mm | 1560 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6221 | Metric | 105 mm | 190 mm | 3730 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6321 | Metric | 105 mm | 225 mm | 8090 | Open | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6221ZZ | Metric | 105 mm | 190 mm | 3730 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6321-2RS | Metric | 105 mm | 225 mm | 8090 | Sealed | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| S304-6321ZZ | Metric | 105 mm | 225 mm | 8090 | Shielded | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
REQUEST FOR QUOTE
