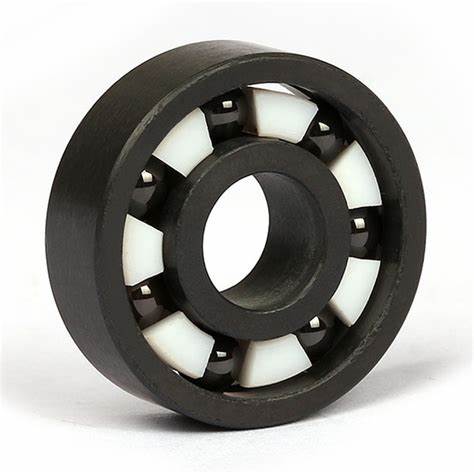

Silicon Carbide SIC Ceramic Ball Bearings

It uses carbon silicon powder and undergoes a hot isostatic process. There are not fine and fine particles inside, and the outer surface has a layer of ground surface layer. The sphere movement of the relatively easy-to-wear bearing ball is 0.08-2.5 RW, and the volume is 0.08～2.5RW, area 0.010～1Ra. Compared with steel balls, the silicon carbide ceramic bearing of this utility model has the following advantages: 1. Long; 2. Self-lubricating; 3. High gloss and low noise; 4. Corrosion resistance; 5. , High temperature; 6. Non-magnetic, electrical insulation.

Product Number	System of measurement	Bore Dia	Outside Dia	weight	Seal Type	Ring Material	Ball Material	Cage Material
CER1-5SC	Inch	0.0938"	0.3125"	0.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CER133SC	Inch	0.0938"	0.1875"	0.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CER1-5SCPP	Inch	0.0938"	0.3125"	1.15	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER133SCPP	Inch	0.0938"	0.1875"	0.1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER2SC	Inch	0.125"	0.375"	1.04	Open	Silicon Carbide	Silicon Carbide	PEEK
CER144SC	Inch	0.125"	0.25"	0.27	Open	Silicon Carbide	Silicon Carbide	PEEK
CER2-5SC	Inch	0.125"	0.3125"	0.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CER2-6SC	Inch	0.125"	0.375"	0.96	Open	Silicon Carbide	Silicon Carbide	PEEK
CER2ASC	Inch	0.125"	0.5"	3.3	Open	Silicon Carbide	Silicon Carbide	PEEK
CER144SCPP	Inch	0.125"	0.25"	0.4	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER2SCPP	Inch	0.125"	0.375"	1.37	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER2-6SCPP	Inch	0.125"	0.375"	1.23	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER2ASCPP	Inch	0.125"	0.5"	3.3	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER2-5SCPP	Inch	0.125"	0.3125"	0.74	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER155SC	Inch	0.1563"	0.3125"	0.51	Open	Silicon Carbide	Silicon Carbide	PEEK
CER155SCPP	Inch	0.1563"	0.3125"	0.51	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER156SC	Inch	0.1875"	0.3125"	0.4	Open	Silicon Carbide	Silicon Carbide	PEEK
CER166SC	Inch	0.1875"	0.375"	0.81	Open	Silicon Carbide	Silicon Carbide	PEEK
CER3SC	Inch	0.1875"	0.5"	2.21	Open	Silicon Carbide	Silicon Carbide	PEEK
CER3ASC	Inch	0.1875"	0.625"	5.08	Open	Silicon Carbide	Silicon Carbide	PEEK
CER156SCPP	Inch	0.1875"	0.3125"	0.45	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER166SCPP	Inch	0.1875"	0.375"	0.85	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER3ASCPP	Inch	0.1875"	0.625"	5.08	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER3SCPP	Inch	0.1875"	0.5"	2.95	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1601SC	Inch	0.1875"	0.6875"	4	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1601SCPP	Inch	0.1875"	0.6875"	4	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER168SC	Inch	0.25"	0.375"	0.57	Open	Silicon Carbide	Silicon Carbide	PEEK
CER4SC	Inch	0.25"	0.625"	4.46	Open	Silicon Carbide	Silicon Carbide	PEEK
CER188SC	Inch	0.25"	0.5"	1.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CER4ASC	Inch	0.25"	0.75"	7.48	Open	Silicon Carbide	Silicon Carbide	PEEK
CER4ASCPP	Inch	0.25"	0.75"	10	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER4SCPP	Inch	0.25"	0.625"	4.54	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER188SCPP	Inch	0.25"	0.5"	2.32	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER168SCPP	Inch	0.25"	0.375"	0.60	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1602SC	Inch	0.25"	0.6875"	6.3	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1602SCPP	Inch	0.25"	0.6875"	6.3	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER1810SC	Inch	0.3125"	0.5"	1.39	Open	Silicon Carbide	Silicon Carbide	PEEK
CER1810SCPP	Inch	0.3125"	0.5"	1.57	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1603SC	Inch	0.3125"	0.875"	9.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1605SC	Inch	0.3125"	0.9062"	16.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1603SCPP	Inch	0.3125"	0.875"	9.5	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1605SCPP	Inch	0.3125"	0.9062"	16.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER6SC	Inch	0.375"	0.875"	9.02	Open	Silicon Carbide	Silicon Carbide	PEEK
CER6SCPP	Inch	0.375"	0.875"	11.7	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1604SC	Inch	0.375"	0.875"	8.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1606SC	Inch	0.375"	0.9062"	21.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1614SC	Inch	0.375"	1.125"	35	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1604SCPP	Inch	0.375"	0.875"	8.6	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1606SCPP	Inch	0.375"	0.9062"	21.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1614SCPP	Inch	0.375"	1.125"	35	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1607SC	Inch	0.4375"	0.9062"	22.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1615SC	Inch	0.4375"	1.125"	32.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1620SC	Inch	0.4375"	1.375"	45.3	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1607SCPP	Inch	0.4375"	0.9062"	22.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1615SCPP	Inch	0.4375"	1.125"	32.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1620SCPP	Inch	0.4375"	1.375"	45.3	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1616SC	Inch	0.5"	1.125"	30	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1621SC	Inch	0.5"	1.375"	48	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1616SCPP	Inch	0.5"	1.125"	30	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1621SCPP	Inch	0.5"	1.375"	48	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1622SC	Inch	0.5625"	1.375"	45.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1622SCPP	Inch	0.5625"	1.375"	45.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1623SC	Inch	0.625"	1.375"	40	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1628SC	Inch	0.625"	1.625"	72	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1633SC	Inch	0.625"	1.75"	92	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1623SCPP	Inch	0.625"	1.375"	40	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1628SCPP	Inch	0.625"	1.625"	72	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1633SCPP	Inch	0.625"	1.75"	92	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER10SCPP	Inch	0.625"	1.375"	38.1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER10SC	Inch	0.625"	1.375"	23.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1630SC	Inch	0.75"	1.625"	64.9	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1635SC	Inch	0.75"	1.75"	84.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1638SC	Inch	0.75"	2"	120.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1630SCPP	Inch	0.75"	1.625"	64.9	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1635SCPP	Inch	0.75"	1.75"	84.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1638SCPP	Inch	0.75"	2"	120.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER12SCPP	Inch	0.75"	1.625"	69.3	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER12SC	Inch	0.75"	1.625"	53.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1640SC	Inch	0.875"	2"	112	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1640SCPP	Inch	0.875"	2"	112	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER14SCPP	Inch	0.875"	1.875"	78	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER14SC	Inch	0.875"	1.875"	78	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1641SC	Inch	1"	2"	100.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1641SCPP	Inch	1"	2"	100.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER16SCPP	Inch	1"	2"	87	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER16SC	Inch	1"	2"	87	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1652SC	Inch	1.125"	2.5"	210	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1652SCPP	Inch	1.125"	2.5"	210	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER18SCPP	Inch	1.125"	2.125"	91	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER18SC	Inch	1.125"	2.125"	91	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1654SC	Inch	1.25"	2.5"	190	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1657SC	Inch	1.25"	2.5625"	215	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1654SCPP	Inch	1.25"	2.5"	190	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE1657SCPP	Inch	1.25"	2.5625"	215	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER20SCPP	Inch	1.25"	2.25"	102	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER20SC	Inch	1.25"	2.25"	102	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1658SC	Inch	1.3125"	2.5625"	200	Open	Silicon Carbide	Silicon Carbide	PEEK
CE1658SCPP	Inch	1.3125"	2.5625"	200	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER22SCPP	Inch	1.375"	2.5"	105	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER22SC	Inch	1.375"	2.5"	105	Open	Silicon Carbide	Silicon Carbide	PEEK
CER24SCPP	Inch	1.5"	2.625"	140	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CER24SC	Inch	1.5"	2.625"	140	Open	Silicon Carbide	Silicon Carbide	PEEK
CE682SC	Metric	2 mm	5 mm	0.15	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR52SC	Metric	2 mm	5 mm	0.14	Open	Silicon Carbide	Silicon Carbide	PEEK
CE692SC	Metric	2 mm	6 mm	0.28	Open	Silicon Carbide	Silicon Carbide	PEEK
CE602SC	Metric	2 mm	7 mm	0.50	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR62SC	Metric	2 mm	6 mm	0.28	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR72SC	Metric	2 mm	7 mm	0.43	Open	Silicon Carbide	Silicon Carbide	PEEK
CE682SCPP	Metric	2 mm	5 mm	0.15	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR52SCPP	Metric	2 mm	5 mm	0.14	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE692SCPP	Metric	2 mm	6 mm	0.35	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR62SCPP	Metric	2 mm	6 mm	0.28	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE602SCPP	Metric	2 mm	7 mm	0.6	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR72SCPP	Metric	2 mm	7 mm	0.53	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE682XSC	Metric	2.5 mm	6 mm	0.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE602XSC	Metric	2.5 mm	8 mm	0.61	Open	Silicon Carbide	Silicon Carbide	PEEK
CE692XSC	Metric	2.5 mm	7 mm	0.4	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR82XSC	Metric	2.5 mm	8 mm	0.52	Open	Silicon Carbide	Silicon Carbide	PEEK
CE692XSCPP	Metric	2.5 mm	7 mm	0.55	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE602XSCPP	Metric	2.5 mm	8 mm	0.61	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE682XSCPP	Metric	2.5 mm	6 mm	0.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR82XSCPP	Metric	2.5 mm	8 mm	0.52	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE603SC	Metric	3 mm	9 mm	0.84	Open	Silicon Carbide	Silicon Carbide	PEEK
CE623SC	Metric	3 mm	10 mm	1.45	Open	Silicon Carbide	Silicon Carbide	PEEK
CE633SC	Metric	3 mm	13 mm	3.27	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR93SC	Metric	3 mm	9 mm	0.75	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR63SC	Metric	3 mm	6 mm	0.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE693SC	Metric	3 mm	8 mm	0.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CE683SC	Metric	3 mm	7 mm	0.32	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR83SC	Metric	3 mm	8 mm	0.51	Open	Silicon Carbide	Silicon Carbide	PEEK
CE683SCPP	Metric	3 mm	7 mm	0.45	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE693SCPP	Metric	3 mm	8 mm	0.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR63SCPP	Metric	3 mm	6 mm	0.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE633SCPP	Metric	3 mm	13 mm	3.43	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR93SCPP	Metric	3 mm	9 mm	0.75	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE623SCPP	Metric	3 mm	10 mm	1.65	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE603SCPP	Metric	3 mm	9 mm	0.84	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR83SCPP	Metric	3 mm	8 mm	0.51	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR74SC	Metric	4 mm	7 mm	0.23	Open	Silicon Carbide	Silicon Carbide	PEEK
CE684SC	Metric	4 mm	9 mm	0.65	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR104SC	Metric	4 mm	10 mm	0.96	Open	Silicon Carbide	Silicon Carbide	PEEK
CE694SC	Metric	4 mm	11 mm	1.69	Open	Silicon Carbide	Silicon Carbide	PEEK
CE604SC	Metric	4 mm	12 mm	2.19	Open	Silicon Carbide	Silicon Carbide	PEEK
CE624SC	Metric	4 mm	13 mm	3.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CE634SC	Metric	4 mm	16 mm	5.24	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR84SC	Metric	4 mm	8 mm	0.39	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR74SCPP	Metric	4 mm	7 mm	0.23	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR84SCPP	Metric	4 mm	8 mm	0.39	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE684SCPP	Metric	4 mm	9 mm	1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR104SCPP	Metric	4 mm	10 mm	1.33	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE694SCPP	Metric	4 mm	11 mm	1.75	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE634SCPP	Metric	4 mm	16 mm	5.44	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE604SCPP	Metric	4 mm	12 mm	2.34	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE624SCPP	Metric	4 mm	13 mm	3.2	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR85SC	Metric	5 mm	8 mm	0.25	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR95SC	Metric	5 mm	9 mm	0.54	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR105SC	Metric	5 mm	10 mm	0.91	Open	Silicon Carbide	Silicon Carbide	PEEK
CE685SC	Metric	5 mm	11 mm	1.16	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR115SC	Metric	5 mm	11 mm	0.62	Open	Silicon Carbide	Silicon Carbide	PEEK
CE695SC	Metric	5 mm	13 mm	2.31	Open	Silicon Carbide	Silicon Carbide	PEEK
CE605SC	Metric	5 mm	14 mm	3.46	Open	Silicon Carbide	Silicon Carbide	PEEK
CE625SC	Metric	5 mm	16 mm	4.95	Open	Silicon Carbide	Silicon Carbide	PEEK
CE635SC	Metric	5 mm	19 mm	8.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR85SCPP	Metric	5 mm	8 mm	0.34	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR115SCPP	Metric	5 mm	11 mm	0.62	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR95SCPP	Metric	5 mm	9 mm	0.58	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE685SCPP	Metric	5 mm	11 mm	1.93	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR105SCPP	Metric	5 mm	10 mm	1.26	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE605SCPP	Metric	5 mm	14 mm	3.75	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE695SCPP	Metric	5 mm	13 mm	2.31	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE625SCPP	Metric	5 mm	16 mm	5.1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE635SCPP	Metric	5 mm	19 mm	8.89	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR106SC	Metric	6 mm	10 mm	0.55	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR126SC	Metric	6 mm	12 mm	1.25	Open	Silicon Carbide	Silicon Carbide	PEEK
CE686SC	Metric	6 mm	13 mm	1.87	Open	Silicon Carbide	Silicon Carbide	PEEK
CE696SC	Metric	6 mm	15 mm	3.85	Open	Silicon Carbide	Silicon Carbide	PEEK
CE626SC	Metric	6 mm	19 mm	8.12	Open	Silicon Carbide	Silicon Carbide	PEEK
CE636SC	Metric	6 mm	22 mm	13.9	Open	Silicon Carbide	Silicon Carbide	PEEK
CE606SC	Metric	6 mm	17 mm	5.94	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR106SCPP	Metric	6 mm	10 mm	0.7	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR126SCPP	Metric	6 mm	12 mm	1.66	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE686SCPP	Metric	6 mm	13 mm	2.68	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE696SCPP	Metric	6 mm	15 mm	3.65	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE606SCPP	Metric	6 mm	17 mm	6.89	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE626SCPP	Metric	6 mm	19 mm	8.65	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE636SCPP	Metric	6 mm	22 mm	14.5	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR137SC	Metric	7 mm	13 mm	1.52	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR117SC	Metric	7 mm	11 mm	0.59	Open	Silicon Carbide	Silicon Carbide	PEEK
CE687SC	Metric	7 mm	14 mm	2.03	Open	Silicon Carbide	Silicon Carbide	PEEK
CE697SC	Metric	7 mm	17 mm	5.26	Open	Silicon Carbide	Silicon Carbide	PEEK
CE607SC	Metric	7 mm	19 mm	7.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE627SC	Metric	7 mm	22 mm	12.7	Open	Silicon Carbide	Silicon Carbide	PEEK
CE637SC	Metric	7 mm	26 mm	24.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR117SCPP	Metric	7 mm	11 mm	0.71	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR137SCPP	Metric	7 mm	13 mm	2.01	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE687SCPP	Metric	7 mm	14 mm	2.95	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE697SCPP	Metric	7 mm	17 mm	5.01	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE607SCPP	Metric	7 mm	19 mm	8.24	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE627SCPP	Metric	7 mm	22 mm	13.1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE637SCPP	Metric	7 mm	26 mm	25.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR148SC	Metric	8 mm	14 mm	1.9	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR128SC	Metric	8 mm	12 mm	0.7	Open	Silicon Carbide	Silicon Carbide	PEEK
CE688SC	Metric	8 mm	16 mm	3.11	Open	Silicon Carbide	Silicon Carbide	PEEK
CE698SC	Metric	8 mm	19 mm	7.12	Open	Silicon Carbide	Silicon Carbide	PEEK
CE608SC	Metric	8 mm	22 mm	11.8	Open	Silicon Carbide	Silicon Carbide	PEEK
CE628SC	Metric	8 mm	24 mm	17.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CE638SC	Metric	8 mm	28 mm	28.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CEMR148SCPP	Metric	8 mm	14 mm	2.19	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE688SCPP	Metric	8 mm	16 mm	4.05	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CEMR128SCPP	Metric	8 mm	12 mm	0.99	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE608SCPP	Metric	8 mm	22 mm	12.9	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE698SCPP	Metric	8 mm	19 mm	7.57	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE628SCPP	Metric	8 mm	24 mm	18.5	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE638SCPP	Metric	8 mm	28 mm	30.3	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE679SC	Metric	9 mm	14 mm	1.35	Open	Silicon Carbide	Silicon Carbide	PEEK
CE689SC	Metric	9 mm	17 mm	3.41	Open	Silicon Carbide	Silicon Carbide	PEEK
CE699SC	Metric	9 mm	20 mm	8.38	Open	Silicon Carbide	Silicon Carbide	PEEK
CE609SC	Metric	9 mm	24 mm	14.7	Open	Silicon Carbide	Silicon Carbide	PEEK
CE629SC	Metric	9 mm	26 mm	19	Open	Silicon Carbide	Silicon Carbide	PEEK
CE639SC	Metric	9 mm	30 mm	36.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE679SCPP	Metric	9 mm	14 mm	1.98	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE689SCPP	Metric	9 mm	17 mm	4.38	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE699SCPP	Metric	9 mm	20 mm	8.54	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE609SCPP	Metric	9 mm	24 mm	16	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE629SCPP	Metric	9 mm	26 mm	21.8	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE639SCPP	Metric	9 mm	30 mm	37.1	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6000SC	Metric	10 mm	26 mm	19	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6200SC	Metric	10 mm	30 mm	32	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6300SC	Metric	10 mm	35 mm	53	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6000SCPP	Metric	10 mm	26 mm	19	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6200SCPP	Metric	10 mm	30 mm	32	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6300SCPP	Metric	10 mm	35 mm	53	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63800SC	Metric	10 mm	19 mm	7.4	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6700SC	Metric	10 mm	15 mm	1.4	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6800SC	Metric	10 mm	19 mm	5.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6900SC	Metric	10 mm	22 mm	10	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6001SC	Metric	12 mm	28 mm	22	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6201SC	Metric	12 mm	32 mm	37	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6301SC	Metric	12 mm	37 mm	60	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6301SCPP	Metric	12 mm	37 mm	60	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6001SCPP	Metric	12 mm	28 mm	22	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6201SCPP	Metric	12 mm	32 mm	37	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63801SC	Metric	12 mm	21 mm	8.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6701SC	Metric	12 mm	18 mm	3.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6801SC	Metric	12 mm	21 mm	6.5	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6002SC	Metric	15 mm	32 mm	30	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6302SC	Metric	15 mm	42 mm	82	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6202SC	Metric	15 mm	35 mm	45	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6002SCPP	Metric	15 mm	32 mm	30	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6302SCPP	Metric	15 mm	42 mm	82	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6202SCPP	Metric	15 mm	35 mm	45	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63802SC	Metric	15 mm	24 mm	10	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6702SC	Metric	15 mm	21 mm	3.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6802SC	Metric	15 mm	24 mm	7.6	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6003SC	Metric	17 mm	35 mm	39	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6203SC	Metric	17 mm	40 mm	65	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6303SC	Metric	17 mm	47 mm	115	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6003SCPP	Metric	17 mm	35 mm	39	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6303SCPP	Metric	17 mm	47 mm	115	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6203SCPP	Metric	17 mm	40 mm	65	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63803SC	Metric	17 mm	26 mm	11	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6703SC	Metric	17 mm	23 mm	4	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6803SC	Metric	17 mm	26 mm	8.2	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6004SC	Metric	20 mm	42 mm	69	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6204SC	Metric	20 mm	47 mm	106	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6304SC	Metric	20 mm	52 mm	144	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6304SCPP	Metric	20 mm	52 mm	144	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6004SCPP	Metric	20 mm	42 mm	69	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6204SCPP	Metric	20 mm	47 mm	106	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63804SC	Metric	20 mm	32 mm	24	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6704SC	Metric	20 mm	27 mm	5.9	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6804SC	Metric	20 mm	32 mm	18	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6005SC	Metric	25 mm	47 mm	80	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6205SC	Metric	25 mm	52 mm	128	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6305SC	Metric	25 mm	62 mm	232	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6005SCPP	Metric	25 mm	47 mm	80	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6205SCPP	Metric	25 mm	52 mm	128	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6305SCPP	Metric	25 mm	62 mm	232	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63805SC	Metric	25 mm	37 mm	32	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6705SC	Metric	25 mm	32 mm	7.1	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6805SC	Metric	25 mm	37 mm	24	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6006SC	Metric	30 mm	55 mm	116	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6206SC	Metric	30 mm	62 mm	199	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6306SC	Metric	30 mm	72 mm	346	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6006SCPP	Metric	30 mm	55 mm	116	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6206SCPP	Metric	30 mm	62 mm	199	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6306SCPP	Metric	30 mm	72 mm	346	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE63806SC	Metric	30 mm	42 mm	36	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6706SC	Metric	30 mm	37 mm	8.3	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6806SC	Metric	30 mm	42 mm	27	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6007SC	Metric	35 mm	62 mm	155	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6207SC	Metric	35 mm	72 mm	288	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6307SC	Metric	35 mm	80 mm	457	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6007SCPP	Metric	35 mm	62 mm	155	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6207SCPP	Metric	35 mm	72 mm	288	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6307SCPP	Metric	35 mm	80 mm	457	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6707SC	Metric	35 mm	44 mm	15	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6807SC	Metric	35 mm	47 mm	32	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6208SC	Metric	40 mm	80 mm	366	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6008SC	Metric	40 mm	68 mm	192	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6308SC	Metric	40 mm	90 mm	620	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6008SCPP	Metric	40 mm	68 mm	192	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6208SCPP	Metric	40 mm	80 mm	366	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6308SCPP	Metric	40 mm	90 mm	620	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6708SC	Metric	40 mm	50 mm	23	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6808SC	Metric	40 mm	52 mm	35	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6009SC	Metric	45 mm	75 mm	245	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6209SC	Metric	45 mm	85 mm	407	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6309SC	Metric	45 mm	100 mm	811	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6009SCPP	Metric	45 mm	75 mm	245	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6209SCPP	Metric	45 mm	85 mm	407	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6309SCPP	Metric	45 mm	100 mm	811	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6709SC	Metric	45 mm	55 mm	25	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6809SC	Metric	45 mm	58 mm	42	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6010SC	Metric	50 mm	80 mm	261	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6210SC	Metric	50 mm	90 mm	463	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6310SC	Metric	50 mm	110 mm	1050	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6210SCPP	Metric	50 mm	90 mm	463	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6310SCPP	Metric	50 mm	110 mm	1050	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6010SCPP	Metric	50 mm	80 mm	261	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6710SC	Metric	50 mm	62 mm	64	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6810SC	Metric	50 mm	65 mm	52	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6011SC	Metric	55 mm	90 mm	373	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6211SC	Metric	55 mm	100 mm	599	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6311SC	Metric	55 mm	120 mm	1350	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6011SCPP	Metric	55 mm	90 mm	373	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6211SCPP	Metric	55 mm	100 mm	599	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6311SCPP	Metric	55 mm	120 mm	1350	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6811SC	Metric	55 mm	72 mm	83	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6012SC	Metric	60 mm	95 mm	403	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6312SC	Metric	60 mm	130 mm	1699	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6212SC	Metric	60 mm	110 mm	762	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6012SCPP	Metric	60 mm	95 mm	403	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6212SCPP	Metric	60 mm	110 mm	762	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6312SCPP	Metric	60 mm	130 mm	1699	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6812SC	Metric	60 mm	78 mm	104	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6213SC	Metric	65 mm	120 mm	979	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6013SC	Metric	65 mm	100 mm	430	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6313SC	Metric	65 mm	140 mm	2080	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6013SCPP	Metric	65 mm	100 mm	430	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6213SCPP	Metric	65 mm	120 mm	979	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6313SCPP	Metric	65 mm	140 mm	2080	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6813SC	Metric	65 mm	85 mm	126	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6214SC	Metric	70 mm	125 mm	1070	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6314SC	Metric	70 mm	150 mm	2530	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6014SC	Metric	70 mm	110 mm	598	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6014SCPP	Metric	70 mm	110 mm	598	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6214SCPP	Metric	70 mm	125 mm	1070	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6314SCPP	Metric	70 mm	150 mm	2530	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6814SC	Metric	70 mm	90 mm	134	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6015SC	Metric	75 mm	115 mm	638	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6315SC	Metric	75 mm	160 mm	3030	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6215SC	Metric	75 mm	130 mm	1170	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6015SCPP	Metric	75 mm	115 mm	638	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6215SCPP	Metric	75 mm	130 mm	1170	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6315SCPP	Metric	75 mm	160 mm	3030	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6815SC	Metric	75 mm	95 mm	142	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6216SC	Metric	80 mm	140 mm	1380	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6016SC	Metric	80 mm	125 mm	854	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6316SC	Metric	80 mm	170 mm	3670	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6216SCPP	Metric	80 mm	140 mm	1380	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6016SCPP	Metric	80 mm	125 mm	854	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6316SCPP	Metric	80 mm	170 mm	3670	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6816SC	Metric	80 mm	100 mm	150	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6317SC	Metric	85 mm	180 mm	4220	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6217SC	Metric	85 mm	150 mm	1740	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6017SC	Metric	85 mm	130 mm	899	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6017SCPP	Metric	85 mm	130 mm	899	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6217SCPP	Metric	85 mm	150 mm	1740	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6317SCPP	Metric	85 mm	180 mm	4220	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6817SC	Metric	85 mm	110 mm	266	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6018SC	Metric	90 mm	140 mm	1163	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6218SC	Metric	90 mm	160 mm	2150	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6318SC	Metric	90 mm	190 mm	4920	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6018SCPP	Metric	90 mm	140 mm	1163	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6218SCPP	Metric	90 mm	160 mm	2150	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6318SCPP	Metric	90 mm	190 mm	4920	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6818SC	Metric	90 mm	115 mm	279	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6019SC	Metric	95 mm	145 mm	1200	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6219SC	Metric	95 mm	170 mm	2590	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6319SC	Metric	95 mm	200 mm	5760	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6019SCPP	Metric	95 mm	145 mm	1200	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6219SCPP	Metric	95 mm	170 mm	2590	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6319SCPP	Metric	95 mm	200 mm	5760	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6819SC	Metric	95 mm	120 mm	279	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6320SC	Metric	100 mm	215 mm	7040	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6020SC	Metric	100 mm	150 mm	1250	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6220SC	Metric	100 mm	180 mm	3120	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6020SCPP	Metric	100 mm	150 mm	1250	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6220SCPP	Metric	100 mm	180 mm	3120	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6320SCPP	Metric	100 mm	215 mm	7040	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6021SC	Metric	105 mm	160 mm	1560	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6221SC	Metric	105 mm	190 mm	3730	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6321SC	Metric	105 mm	225 mm	8090	Open	Silicon Carbide	Silicon Carbide	PEEK
CE6021SCPP	Metric	105 mm	160 mm	1560	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6321SCPP	Metric	105 mm	225 mm	8090	Sealed	Silicon Carbide	Silicon Carbide	PEEK
CE6221SCPP	Metric	105 mm	190 mm	3730	Sealed	Silicon Carbide	Silicon Carbide	PEEK

REQUEST FOR QUOTE

Bearings & Components

Special Material

Applications

Silicon Carbide SIC Ceramic Ball Bearings
