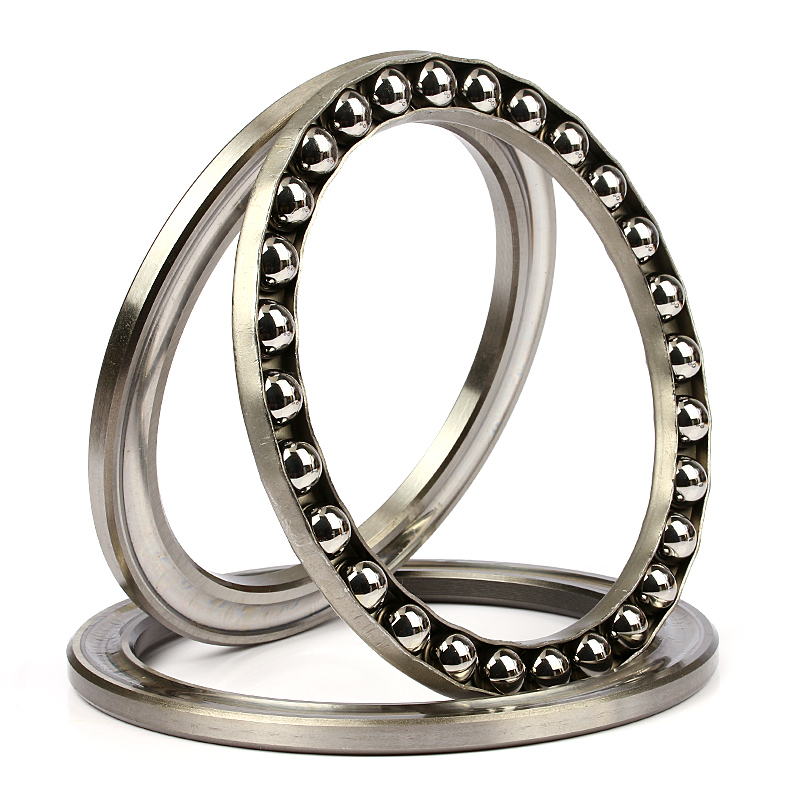

51300 Series Thrust Ball Bearings

Thrust ball bearing consists of three parts: shaft washer, housing washer and a ball and cage assembly. The shaft ring matched with the shaft is called the shaft washer, and the housing ring matched with the housing. It can bear high axial load and small radial load. BSPD can provide all types of thrust ball bearings with ID of 2~200mm.

Product NumberSystem of measurementBore DiaOutside DiaweightRing MaterialBall MaterialCage Material
51305 BearingsMetric25 mm52 mm18152100 Chrome Steel52100 Chrome SteelSteel
51306 BearingsMetric30 mm60 mm280 g52100 Chrome Steel52100 Chrome SteelSteel
51307 BearingsMetric35 mm68 mm408 g52100 Chrome Steel52100 Chrome SteelSteel
51308 BearingsMetric40 mm78 mm560 g52100 Chrome Steel52100 Chrome SteelSteel
51309 BearingsMetric45 mm85 mm720 g52100 Chrome Steel52100 Chrome SteelSteel
51310 BearingsMetric50 mm95 mm1003 g52100 Chrome Steel52100 Chrome SteelSteel
51311 BearingsMetric55 mm105 mm1333 g52100 Chrome Steel52100 Chrome SteelSteel
51311mMetric55 mm105 mm1466 g52100 Chrome Steel52100 Chrome SteelSteel
51312 BearingsMetric60 mm110 mm1419 g52100 Chrome Steel52100 Chrome SteelSteel
51312m BearingsMetric60 mm110 mm1515 g52100 Chrome Steel52100 Chrome SteelSteel
51313m BearingsMetric65 mm115 mm1683 g52100 Chrome Steel52100 Chrome SteelSteel
51313 BearingsMetric65 mm115 mm1540 g52100 Chrome Steel52100 Chrome SteelSteel
51314 BearingsMetric70 mm125 mm1858 g52100 Chrome Steel52100 Chrome SteelSteel
51314m BearingsMetric70 mm125 mm2057 g52100 Chrome Steel52100 Chrome SteelSteel
51315 BearingsMetric75 mm135 mm2381 g52100 Chrome Steel52100 Chrome SteelSteel
51315m BearingsMetric75 mm135 mm2628 g52100 Chrome Steel52100 Chrome SteelSteel
51316 BearingsMetric80 mm140 mm2790 g52100 Chrome Steel52100 Chrome SteelSteel
51316mMetric80 mm140 mm3009 g52100 Chrome Steel52100 Chrome SteelSteel
51317 BearingsMetric85 mm150 mm3614 g52100 Chrome Steel52100 Chrome SteelSteel
51318m BearingsMetric90 mm155 mm4463 g52100 Chrome Steel52100 Chrome SteelSteel
51320 BearingsMetric100 mm170 mm5414 g52100 Chrome Steel52100 Chrome SteelSteel
51320m BearingsMetric100 mm170 mm5414 g52100 Chrome Steel52100 Chrome SteelSteel
51322 BearingsMetric110 mm190 mm6401 g52100 Chrome Steel52100 Chrome SteelSteel
51322m BearingsMetric110 mm190 mm7870 g52100 Chrome Steel52100 Chrome SteelSteel
51324m BearingsMetric120 mm210 mm10717 g52100 Chrome Steel52100 Chrome SteelSteel
51326mMetric130 mm225 mm13300 g52100 Chrome Steel52100 Chrome SteelSteel
51328m BearingsMetric140 mm240 mm16195 g52100 Chrome Steel52100 Chrome SteelSteel
51330m BearingsMetric150 mm250 mm16715 g52100 Chrome Steel52100 Chrome SteelSteel
51332m BearingsMetric160 mm270 mm21204 g52100 Chrome Steel52100 Chrome SteelSteel
51334m BearingsMetric170 mm280 mm22253 g52100 Chrome Steel52100 Chrome SteelSteel
51336m BearingsMetric180 mm300 mm28704 g52100 Chrome Steel52100 Chrome SteelSteel
51340mMetric200 mm340 mm43091 g52100 Chrome Steel52100 Chrome SteelSteel
