51200 Series Thrust Ball Bearings

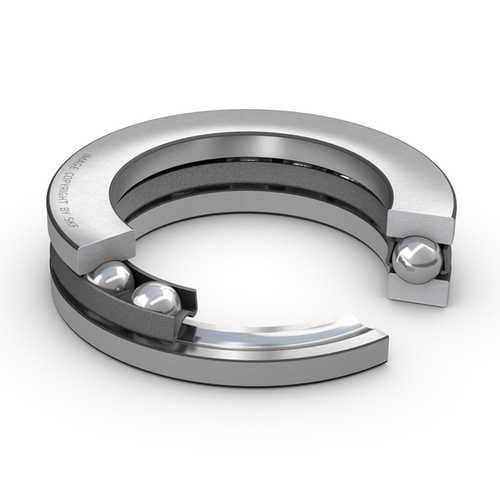

Thrust ball bearing consists of three parts: shaft washer, housing washer and a ball and cage assembly. The shaft ring matched with the shaft is called the shaft washer, and the housing ring matched with the housing. It can bear high axial load and small radial load. BSPD can provide all types of thrust ball bearings with ID of 2~200mm.

Product NumberSystem of measurementBore DiaOutside DiaweightRing MaterialBall MaterialCage Material
51200 BearingsMetric10 mm26 mm2752100 Chrome Steel52100 Chrome SteelSteel
51201 BearingsMetric12 mm28 mm3352100 Chrome Steel52100 Chrome SteelSteel
51202 BearingsMetric15 mm32 mm4552100 Chrome Steel52100 Chrome SteelSteel
51203 BearingsMetric17 mm35 mm5952100 Chrome Steel52100 Chrome SteelSteel
51204 BearingsMetric20 mm40 mm7852100 Chrome Steel52100 Chrome SteelSteel
51205 BearingsMetric25 mm47 mm10452100 Chrome Steel52100 Chrome SteelSteel
51206 BearingsMetric30 mm52 mm14452100 Chrome Steel52100 Chrome SteelSteel
51207 BearingsMetric35 mm62 mm23152100 Chrome Steel52100 Chrome SteelSteel
51208 BearingsMetric40 mm68 mm26752100 Chrome Steel52100 Chrome SteelSteel
51209 BearingsMetric45 mm73 mm31852100 Chrome Steel52100 Chrome SteelSteel
51210 BearingsMetric50 mm78 mm39852100 Chrome Steel52100 Chrome SteelSteel
51211 BearingsMetric55 mm90 mm59452100 Chrome Steel52100 Chrome SteelSteel
51212 BearingsMetric60 mm95 mm67552100 Chrome Steel52100 Chrome SteelSteel
51213 BearingsMetric65 mm100 mm76252100 Chrome Steel52100 Chrome SteelSteel
51214 BearingsMetric70 mm105 mm81752100 Chrome Steel52100 Chrome SteelSteel
51215 BearingsMetric75 mm110 mm79852100 Chrome Steel52100 Chrome SteelSteel
51216 BearingsMetric80 mm115 mm85452100 Chrome Steel52100 Chrome SteelSteel
51217 BearingsMetric85 mm125 mm125352100 Chrome Steel52100 Chrome SteelSteel
51218 BearingsMetric90 mm135 mm171752100 Chrome Steel52100 Chrome SteelSteel
51220 BearingsMetric100 mm150 mm188152100 Chrome Steel52100 Chrome SteelSteel
51220m BearingsMetric100 mm150 mm244852100 Chrome Steel52100 Chrome SteelSteel
51222 BearingsMetric110 mm160 mm233652100 Chrome Steel52100 Chrome SteelSteel
51222mMetric110 mm160 mm258652100 Chrome Steel52100 Chrome SteelSteel
51224 BearingsMetric120 mm170 mm260252100 Chrome Steel52100 Chrome SteelSteel
51225 BearingsMetric130 mm190 mm413352100 Chrome Steel52100 Chrome SteelSteel
51226m BearingsMetric130 mm190 mm444452100 Chrome Steel52100 Chrome SteelSteel
51230m BearingsMetric150 mm215 mm521052100 Chrome Steel52100 Chrome SteelSteel
51232m BearingsMetric160 mm225 mm667052100 Chrome Steel52100 Chrome SteelSteel
51234m BearingsMetric170 mm240 mm828052100 Chrome Steel52100 Chrome SteelSteel
51236m BearingsMetric180 mm250 mm885052100 Chrome Steel52100 Chrome SteelSteel
51238m BearingsMetric190 mm270 mm1182652100 Chrome Steel52100 Chrome SteelSteel
51240m BearingsMetric200 mm280 mm1216152100 Chrome Steel52100 Chrome SteelSteel
51244m BearingsMetric220 mm300 mm1201652100 Chrome Steel52100 Chrome SteelSteel
51248m BearingsMetric240 mm340 mm2099152100 Chrome Steel52100 Chrome SteelSteel
51252m BearingsMetric260 mm360 mm2275452100 Chrome Steel52100 Chrome SteelSteel
51256m BearingsMetric280 mm380 mm2777052100 Chrome Steel52100 Chrome SteelSteel
51260m BearingsMetric300 mm420 mm4341552100 Chrome Steel52100 Chrome SteelSteel
51268m BearingsMetric340 mm460 mm4660952100 Chrome Steel52100 Chrome SteelSteel
