51100 Series Thrust Ball Bearings

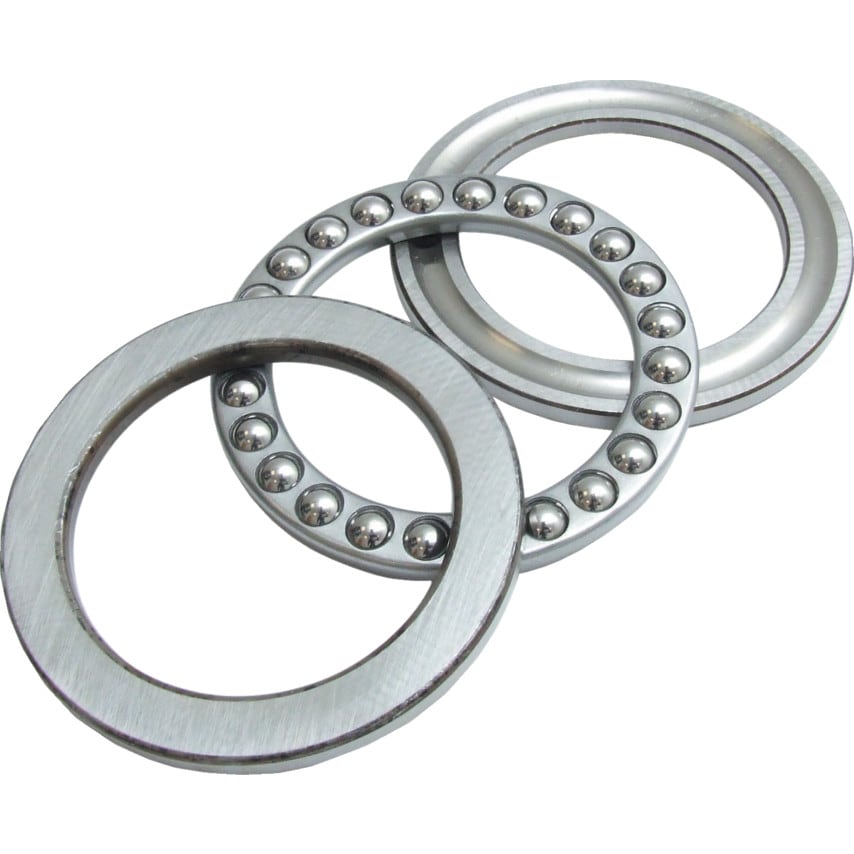

Thrust ball bearing consists of three parts: shaft washer, housing washer and a ball and cage assembly. The shaft ring matched with the shaft is called the shaft washer, and the housing ring matched with the housing. It can bear high axial load and small radial load. BSPD can provide all types of thrust ball bearings with ID of 2~200mm.

Product NumberSystem of measurementBore DiaOutside DiaweightRing MaterialBall MaterialCage Material
51100 BearingsMetric10 mm24 mm2252100 Chrome Steel52100 Chrome SteelSteel
51101 BearingMetric12 mm26 mm2352100 Chrome Steel52100 Chrome SteelSteel
51102 BearingsMetric15 mm28 mm3052100 Chrome Steel52100 Chrome SteelSteel
51103 BearingsMetric17 mm30 mm2852100 Chrome Steel52100 Chrome SteelSteel
51104 BearingsMetric20 mm35 mm4152100 Chrome Steel52100 Chrome SteelSteel
51105 BearingsMetric25 mm42 mm5752100 Chrome Steel52100 Chrome SteelSteel
51106 BearingsMetric30 mm47 mm6752100 Chrome Steel52100 Chrome SteelSteel
51107 BearingsMetric35 mm52 mm8352100 Chrome Steel52100 Chrome SteelSteel
51108 BearingsMetric40 mm60 mm11952100 Chrome Steel52100 Chrome SteelSteel
51109 BearingsMetric45 mm65 mm14552100 Chrome Steel52100 Chrome SteelSteel
51110 BearingsMetric50 mm70 mm15752100 Chrome Steel52100 Chrome SteelSteel
51111 BearingsMetric55 mm78 mm21452100 Chrome Steel52100 Chrome SteelSteel
51112 BearingsMetric60 mm85 mm27652100 Chrome Steel52100 Chrome SteelSteel
51113 BearingsMetric65 mm90 mm31052100 Chrome Steel52100 Chrome SteelSteel
51114 BearingsMetric70 mm95 mm33052100 Chrome Steel52100 Chrome SteelSteel
51115 BearingsMetric75 mm100 mm13152100 Chrome Steel52100 Chrome SteelSteel
51116 BearingsMetric80 mm105 mm40952100 Chrome Steel52100 Chrome SteelSteel
51117 BearingsMetric85 mm110 mm47052100 Chrome Steel52100 Chrome SteelSteel
51118 BearingsMetric90 mm120 mm65052100 Chrome Steel52100 Chrome SteelSteel
51120 BearingsMetric100 mm135 mm99052100 Chrome Steel52100 Chrome SteelSteel
51122 BearingsMetric110 mm145 mm111052100 Chrome Steel52100 Chrome SteelSteel
51124 BearingsMetric120 mm155 mm118052100 Chrome Steel52100 Chrome SteelSteel
51124m BearingsMetric120 mm155 mm125552100 Chrome Steel52100 Chrome SteelSteel
51126 BearingsMetric130 mm170 mm170752100 Chrome Steel52100 Chrome SteelSteel
51128m BearingsMetric140 mm180 mm194752100 Chrome Steel52100 Chrome SteelSteel
51130m BearingsMetric150 mm190 mm213352100 Chrome Steel52100 Chrome SteelSteel
51132m BearingsMetric160 mm200 mm233652100 Chrome Steel52100 Chrome SteelSteel
51134m BearingsMetric170 mm215 mm303252100 Chrome Steel52100 Chrome SteelSteel
51136m BearingsMetric180 mm225 mm307752100 Chrome Steel52100 Chrome SteelSteel
51138m BearingsMetric190 mm240 mm406052100 Chrome Steel52100 Chrome SteelSteel
51140m BearingsMetric200 mm250 mm420952100 Chrome Steel52100 Chrome SteelSteel
51144m BearingsMetric220 mm270 mm456952100 Chrome Steel52100 Chrome SteelSteel
51152m BearingsMetric260 mm320 mm798052100 Chrome Steel52100 Chrome SteelSteel
51156mMetric280 mm350 mm1202252100 Chrome Steel52100 Chrome SteelSteel
51160m BearingsMetric300 mm380 mm1715252100 Chrome Steel52100 Chrome SteelSteel
51164m BearingsMetric320 mm400 mm1888652100 Chrome Steel52100 Chrome SteelSteel
