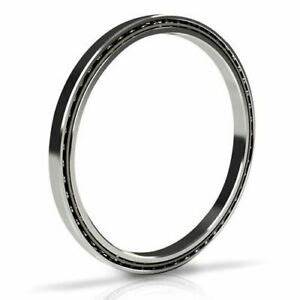

RealiSlim Stainless Steel Thin Section Bearings
In order to obtain the bearing’s low friction torque, high rigidity, and good rotation accuracy, steel balls with a small outer diameter are used. The use of hollow shafts ensures light weight and space for wiring. The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and light weight of the product. The variety of products expands its scope of use.
| Product Number | System of measurement | BEARING TYPE | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|---|
| SAA10AG0 | Inch | Angular | 1.000" | 1.375" | 0.025 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA10CL0 | Inch | Radial | 1.000" | 1.375" | 0.026 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA10XL0 | Inch | Four Point | 1.000" | 1.375" | 0.026 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA15AG0 | Inch | Angular | 1.500" | 1.875" | 0.038 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA15CL0 | Inch | Radial | 1.500" | 1.875" | 0.039 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA15XL0 | Inch | Four Point | 1.500" | 1.875" | 0.039 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA17AG0 | Inch | Angular | 1.750" | 2.125" | 0.045 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA17CL0 | Inch | Radial | 1.750" | 2.125" | 0.045 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SAA17XL0 | Inch | Four Point | 1.750" | 2.125" | 0.045 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Nylon |
| SA020AR0 | Inch | Angular | 2.000" | 2.500" | 0.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA020CP0 | Inch | Radial | 2.000" | 2.500" | 0.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA020XP0 | Inch | Four Point | 2.000" | 2.500" | 0.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB020AR0 | Inch | Angular | 2.000" | 2.625" | 0.15 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB020CP0 | Inch | Radial | 2.000" | 2.625" | 0.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB020XP0 | Inch | Four Point | 2.000" | 2.625" | 0.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA025AR0 | Inch | Angular | 2.500" | 3.000" | 0.12 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA025CP0 | Inch | Radial | 2.500" | 3.000" | 0.13 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA025XP0 | Inch | Four Point | 2.500" | 3.000" | 0.13 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB025AR0 | Inch | Angular | 2.500" | 3.125" | 0.19 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB025CP0 | Inch | Radial | 2.500" | 3.125" | 0.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB025XP0 | Inch | Four Point | 2.500" | 3.125" | 0.19 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA027XP0 | Inch | Four Point | 2.750" | 3.250" | 0.14 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA030AR0 | Inch | Angular | 3.000" | 3.500" | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass | |
| SA030CP0 | Inch | Radial | 3.000" | 3.500" | 0.15 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA030XP0 | Inch | Four Point | 3.000" | 3.500" | 0.15 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB030AR0 | Inch | Angular | 3.000" | 3.625" | 0.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB030CP0 | Inch | Radial | 3.000" | 3.625" | 0.24 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB030XP0 | Inch | Four Point | 3.000" | 3.625" | 0.24 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA035AR0 | Inch | Angular | 3.500" | 4.000" | 0.17 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA035CP0 | Inch | Radial | 3.500" | 4.000" | 0.18 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA035XP0 | Inch | Four Point | 3.500" | 4.000" | 0.18 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB035AR0 | Inch | Angular | 3.500" | 4.125" | 0.27 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB035CP0 | Inch | Radial | 3.500" | 4.125" | 0.27 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB035XP0 | Inch | Four Point | 3.500" | 4.125" | 0.27 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA040AR0 | Inch | Angular | 4.000" | 4.500" | 0.19 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA040CP0 | Inch | Radial | 4.000" | 4.500" | 0.19 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA040XP0 | Inch | Four Point | 4.000" | 4.500" | 0.19 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB040AR0 | Inch | Angular | 4.000" | 4.625" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB040CP0 | Inch | Radial | 4.000" | 4.625" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB040XP0 | Inch | Four Point | 4.000" | 4.625" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC040AR0 | Inch | Angular | 4.000" | 4.750" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC040CP0 | Inch | Radial | 4.000" | 4.750" | 0.45 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC040XP0 | Inch | Four Point | 4.000" | 4.750" | 0.45 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD040AR0 | Inch | Angular | 4.000" | 5.000" | 0.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD040CP0 | Inch | Radial | 4.000" | 5.000" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD040XP0 | Inch | Four Point | 4.000" | 5.000" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF040AR0 | Inch | Angular | 4.000" | 5.500" | 1.92 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF040CP0 | Inch | Radial | 4.000" | 5.500" | 1.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF040XP0 | Inch | Four Point | 4.000" | 5.500" | 1.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG040AR0 | Inch | Angular | 4.000" | 6.000" | 3.61 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG040CP0 | Inch | Radial | 4.000" | 6.000" | 3.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG040XP0 | Inch | Four Point | 4.000" | 6.000" | 3.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA042AR0 | Inch | Angular | 4.250" | 4.750" | 0.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA042CP0 | Inch | Radial | 4.250" | 4.750" | 0.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA042XP0 | Inch | Four Point | 4.250" | 4.750" | 0.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB042AR0 | Inch | Angular | 4.250" | 4.875" | 0.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB042CP0 | Inch | Radial | 4.250" | 4.875" | 0.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB042XP0 | Inch | Four Point | 4.250" | 4.875" | 0.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC042AR0 | Inch | Angular | 4.250" | 5.000" | 0.46 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC042CP0 | Inch | Radial | 4.250" | 5.000" | 0.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC042XP0 | Inch | Four Point | 4.250" | 5.000" | 0.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD042AR0 | Inch | Angular | 4.250" | 5.250" | 0.84 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD042CP0 | Inch | Radial | 4.250" | 5.250" | 0.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD042XP0 | Inch | Four Point | 4.250" | 5.250" | 0.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF042AR0 | Inch | Angular | 4.250" | 5.750" | 2.04 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF042CP0 | Inch | Radial | 4.250" | 5.750" | 2.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF042XP0 | Inch | Four Point | 4.250" | 5.750" | 2.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG042AR0 | Inch | Angular | 4.250" | 6.250" | 3.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG042CP0 | Inch | Radial | 4.250" | 6.250" | 3.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG042XP0 | Inch | Four Point | 4.250" | 6.250" | 3.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA045AR0 | Inch | Angular | 4.500" | 5.000" | 0.21 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA045CP0 | Inch | Radial | 4.500" | 5.000" | 0.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA045XP0 | Inch | Four Point | 4.500" | 5.000" | 0.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB045AR0 | Inch | Angular | 4.500" | 5.125" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB045CP0 | Inch | Radial | 4.500" | 5.125" | 0.33 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB045XP0 | Inch | Four Point | 4.500" | 5.125" | 0.33 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC045AR0 | Inch | Angular | 4.500" | 5.250" | 0.49 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC045CP0 | Inch | Radial | 4.500" | 5.250" | 0.48 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC045XP0 | Inch | Four Point | 4.500" | 5.250" | 0.48 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD045AR0 | Inch | Angular | 4.500" | 5.500" | 0.88 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD045CP0 | Inch | Radial | 4.500" | 5.500" | 0.88 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD045XP0 | Inch | Four Point | 4.500" | 5.500" | 0.88 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF045AR0 | Inch | Angular | 4.500" | 6.000" | 2.14 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF045CP0 | Inch | Radial | 4.500" | 6.000" | 2.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF045XP0 | Inch | Four Point | 4.500" | 6.000" | 2.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG045AR0 | Inch | Angular | 4.500" | 6.500" | 3.95 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG045CP0 | Inch | Radial | 4.500" | 6.500" | 4.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG045XP0 | Inch | Four Point | 4.500" | 6.500" | 4.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA047AR0 | Inch | Angular | 4.750" | 5.250" | 0.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA047CP0 | Inch | Radial | 4.750" | 5.250" | 0.23 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA047XP0 | Inch | Four Point | 4.750" | 5.250" | 0.23 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB047AR0 | Inch | Angular | 4.750" | 5.375" | 0.35 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB047CP0 | Inch | Radial | 4.750" | 5.375" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB047XP0 | Inch | Four Point | 4.750" | 5.375" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC047AR0 | Inch | Angular | 4.750" | 5.500" | 0.51 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC047CP0 | Inch | Radial | 4.750" | 5.500" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC047XP0 | Inch | Four Point | 4.750" | 5.500" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD047AR0 | Inch | Angular | 4.750" | 5.750" | 0.93 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD047CP0 | Inch | Radial | 4.750" | 5.750" | 0.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD047XP0 | Inch | Four Point | 4.750" | 5.750" | 0.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF047AR0 | Inch | Angular | 4.750" | 6.250" | 2.26 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF047CP0 | Inch | Radial | 4.750" | 6.250" | 2.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF047XP0 | Inch | Four Point | 4.750" | 6.250" | 2.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG047AR0 | Inch | Angular | 4.750" | 6.750" | 4.17 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG047CP0 | Inch | Radial | 4.750" | 6.750" | 4.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG047XP0 | Inch | Four Point | 4.750" | 6.750" | 4.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA050AR0 | Inch | Angular | 5.000" | 5.500" | 0.23 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA050CP0 | Inch | Radial | 5.000" | 5.500" | 0.24 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA050XP0 | Inch | Four Point | 5.000" | 5.500" | 0.24 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB050AR0 | Inch | Angular | 5.000" | 5.625" | 0.37 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB050CP0 | Inch | Radial | 5.000" | 5.625" | 0.38 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB050XP0 | Inch | Four Point | 5.000" | 5.625" | 0.38 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC050AR0 | Inch | Angular | 5.000" | 5.750" | 0.54 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC050CP0 | Inch | Radial | 5.000" | 5.750" | 0.58 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC050XP0 | Inch | Four Point | 5.000" | 5.750" | 0.58 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD050AR0 | Inch | Angular | 5.000" | 6.000" | 0.98 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD050CP0 | Inch | Radial | 5.000" | 6.000" | 1.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD050XP0 | Inch | Four Point | 5.000" | 6.000" | 1.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF050AR0 | Inch | Angular | 5.000" | 6.500" | 2.37 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF050CP0 | Inch | Radial | 5.000" | 6.500" | 2.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF050XP0 | Inch | Four Point | 5.000" | 6.500" | 2.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG050AR0 | Inch | Angular | 5.000" | 7.000" | 4.42 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG050CP0 | Inch | Radial | 5.000" | 7.000" | 4.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG050XP0 | Inch | Four Point | 5.000" | 7.000" | 4.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA055AR0 | Inch | Angular | 5.500" | 6.000" | 0.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA055CP0 | Inch | Radial | 5.500" | 6.000" | 0.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA055XP0 | Inch | Four Point | 5.500" | 6.000" | 0.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB055AR0 | Inch | Angular | 5.500" | 6.125" | 0.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB055CP0 | Inch | Radial | 5.500" | 6.125" | 0.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB055XP0 | Inch | Four Point | 5.500" | 6.125" | 0.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC055AR0 | Inch | Angular | 5.500" | 6.250" | 0.58 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC055CP0 | Inch | Radial | 5.500" | 6.250" | 0.59 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC055XP0 | Inch | Four Point | 5.500" | 6.250" | 0.59 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD055AR0 | Inch | Angular | 5.500" | 6.500" | 1.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD055CP0 | Inch | Radial | 5.500" | 6.500" | 1.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD055XP0 | Inch | Four Point | 5.500" | 6.500" | 1.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF055AR0 | Inch | Angular | 5.500" | 7.000" | 2.59 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF055CP0 | Inch | Radial | 5.500" | 7.000" | 2.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF055XP0 | Inch | Four Point | 5.500" | 7.000" | 2.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG055AR0 | Inch | Angular | 5.500" | 7.500" | 4.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG055CP0 | Inch | Radial | 5.500" | 7.500" | 4.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG055XP0 | Inch | Four Point | 5.500" | 7.500" | 4.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA060AR0 | Inch | Angular | 6.000" | 6.500" | 0.28 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA060CP0 | Inch | Radial | 6.000" | 6.500" | 0.28 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA060XP0 | Inch | Four Point | 6.000" | 6.500" | 0.28 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB060AR0 | Inch | Angular | 6.000" | 6.625" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB060CP0 | Inch | Radial | 6.000" | 6.625" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB060XP0 | Inch | Four Point | 6.000" | 6.625" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC060AR0 | Inch | Angular | 6.000" | 6.750" | 0.64 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC060CP0 | Inch | Radial | 6.000" | 6.750" | 0.63 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC060XP0 | Inch | Four Point | 6.000" | 6.750" | 0.63 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD060AR0 | Inch | Angular | 6.000" | 7.000" | 1.15 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD060CP0 | Inch | Radial | 6.000" | 7.000" | 1.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD060XP0 | Inch | Four Point | 6.000" | 7.000" | 1.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF060AR0 | Inch | Angular | 6.000" | 7.500" | 2.72 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF060CP0 | Inch | Radial | 6.000" | 7.500" | 2.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF060XP0 | Inch | Four Point | 6.000" | 7.500" | 2.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG060AR0 | Inch | Angular | 6.000" | 8.000" | 5.07 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG060CP0 | Inch | Radial | 6.000" | 8.000" | 5.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG060XP0 | Inch | Four Point | 6.000" | 8.000" | 5.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA065AR0 | Inch | Angular | 6.500" | 7.000" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA065CP0 | Inch | Radial | 6.500" | 7.000" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA065XP0 | Inch | Four Point | 6.500" | 7.000" | 0.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB065AR0 | Inch | Angular | 6.500" | 7.125" | 0.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB065CP0 | Inch | Radial | 6.500" | 7.125" | 0.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB065XP0 | Inch | Four Point | 6.500" | 7.125" | 0.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC065AR0 | Inch | Angular | 6.500" | 7.250" | 0.68 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC065CP0 | Inch | Radial | 6.500" | 7.250" | 0.68 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC065XP0 | Inch | Four Point | 6.500" | 7.250" | 0.68 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD065AR0 | Inch | Angular | 6.500" | 7.500" | 1.24 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD065CP0 | Inch | Radial | 6.500" | 7.500" | 1.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD065XP0 | Inch | Four Point | 6.500" | 7.500" | 1.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF065AR0 | Inch | Angular | 6.500" | 8.000" | 2.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF065CP0 | Inch | Radial | 6.500" | 8.000" | 2.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF065XP0 | Inch | Four Point | 6.500" | 8.000" | 2.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG065AR0 | Inch | Angular | 6.500" | 8.500" | 5.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG065CP0 | Inch | Radial | 6.500" | 8.500" | 5.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG065XP0 | Inch | Four Point | 6.500" | 8.500" | 5.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA070AR0 | Inch | Angular | 7.000" | 7.500" | 0.32 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA070CP0 | Inch | Radial | 7.000" | 7.500" | 0.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA070XP0 | Inch | Four Point | 7.000" | 7.500" | 0.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB070AR0 | Inch | Angular | 7.000" | 7.625" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB070CP0 | Inch | Radial | 7.000" | 7.625" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB070XP0 | Inch | Four Point | 7.000" | 7.625" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC070AR0 | Inch | Angular | 7.000" | 7.750" | 0.74 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC070CP0 | Inch | Radial | 7.000" | 7.750" | 0.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC070XP0 | Inch | Four Point | 7.000" | 7.750" | 0.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD070AR0 | Inch | Angular | 7.000" | 8.000" | 1.33 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD070CP0 | Inch | Radial | 7.000" | 8.000" | 1.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD070XP0 | Inch | Four Point | 7.000" | 8.000" | 1.31 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF070AR0 | Inch | Angular | 7.000" | 8.500" | 3.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF070CP0 | Inch | Radial | 7.000" | 8.500" | 3.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF070XP0 | Inch | Four Point | 7.000" | 8.500" | 3.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG070AR0 | Inch | Angular | 7.000" | 9.000" | 5.87 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG070CP0 | Inch | Radial | 7.000" | 9.000" | 5.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG070XP0 | Inch | Four Point | 7.000" | 9.000" | 5.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA075AR0 | Inch | Angular | 7.500" | 8.000" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA075CP0 | Inch | Radial | 7.500" | 8.000" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA075XP0 | Inch | Four Point | 7.500" | 8.000" | 0.34 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB075AR0 | Inch | Angular | 7.500" | 8.125" | 0.54 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB075CP0 | Inch | Radial | 7.500" | 8.125" | 0.53 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB075XP0 | Inch | Four Point | 7.500" | 8.125" | 0.53 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC075AR0 | Inch | Angular | 7.500" | 8.250" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC075CP0 | Inch | Radial | 7.500" | 8.250" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC075XP0 | Inch | Four Point | 7.500" | 8.250" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD075AR0 | Inch | Angular | 7.500" | 8.500" | 1.42 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD075CP0 | Inch | Radial | 7.500" | 8.500" | 1.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD075XP0 | Inch | Four Point | 7.500" | 8.500" | 1.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF075AR0 | Inch | Angular | 7.500" | 9.000" | 3.39 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF075CP0 | Inch | Radial | 7.500" | 9.000" | 3.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF075XP0 | Inch | Four Point | 7.500" | 9.000" | 3.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG075AR0 | Inch | Angular | 7.500" | 9.500" | 6.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG075CP0 | Inch | Radial | 7.500" | 9.500" | 6.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG075XP0 | Inch | Four Point | 7.500" | 9.500" | 6.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA080AR0 | Inch | Angular | 8.000" | 8.500" | 0.36 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA080CP0 | Inch | Radial | 8.000" | 8.500" | 0.38 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA080XP0 | Inch | Four Point | 8.000" | 8.500" | 0.38 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB080AR0 | Inch | Angular | 8.000" | 8.625" | 0.57 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB080CP0 | Inch | Radial | 8.000" | 8.625" | 0.57 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB080XP0 | Inch | Four Point | 8.000" | 8.625" | 0.57 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC080AR0 | Inch | Angular | 8.000" | 8.750" | 0.84 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC080CP0 | Inch | Radial | 8.000" | 8.750" | 0.84 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC080XP0 | Inch | Four Point | 8.000" | 8.750" | 0.84 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD080AR0 | Inch | Angular | 8.000" | 9.000" | 1.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD080CP0 | Inch | Radial | 8.000" | 9.000" | 1.53 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD080XP0 | Inch | Four Point | 8.000" | 9.000" | 1.53 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF080AR0 | Inch | Angular | 8.000" | 9.500" | 3.61 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF080CP0 | Inch | Radial | 8.000" | 9.500" | 3.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF080XP0 | Inch | Four Point | 8.000" | 9.500" | 3.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG080AR0 | Inch | Angular | 8.000" | 10.000" | 6.54 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG080CP0 | Inch | Radial | 8.000" | 10.000" | 6.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG080XP0 | Inch | Four Point | 8.000" | 10.000" | 6.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA090AR0 | Inch | Angular | 9.000" | 9.500" | 0.41 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA090CP0 | Inch | Radial | 9.000" | 9.500" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA090XP0 | Inch | Four Point | 9.000" | 9.500" | 0.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB090AR0 | Inch | Angular | 9.000" | 9.625" | 0.64 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB090CP0 | Inch | Radial | 9.000" | 9.625" | 0.66 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB090XP0 | Inch | Four Point | 9.000" | 9.625" | 0.66 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC090AR0 | Inch | Angular | 9.000" | 9.750" | 0.98 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC090CP0 | Inch | Radial | 9.000" | 9.750" | 0.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC090XP0 | Inch | Four Point | 9.000" | 9.750" | 0.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD090AR0 | Inch | Angular | 9.000" | 10.000" | 1.69 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD090CP0 | Inch | Radial | 9.000" | 10.000" | 1.72 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD090XP0 | Inch | Four Point | 9.000" | 10.000" | 1.72 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF090AR0 | Inch | Angular | 9.000" | 10.500" | 3.95 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF090CP0 | Inch | Radial | 9.000" | 10.500" | 3.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF090XP0 | Inch | Four Point | 9.000" | 10.500" | 3.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG090AR0 | Inch | Angular | 9.000" | 11.000" | 7.22 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG090CP0 | Inch | Radial | 9.000" | 11.000" | 7.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG090XP0 | Inch | Four Point | 9.000" | 11.000" | 7.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA100AR0 | Inch | Angular | 10.000" | 10.500" | 0.45 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA100CP0 | Inch | Radial | 10.000" | 10.500" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA100XP0 | Inch | Four Point | 10.000" | 10.500" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB100AR0 | Inch | Angular | 10.000" | 10.625" | 0.71 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB100CP0 | Inch | Radial | 10.000" | 10.625" | 0.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB100XP0 | Inch | Four Point | 10.000" | 10.625" | 0.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC100AR0 | Inch | Angular | 10.000" | 10.750" | 1.04 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC100CP0 | Inch | Radial | 10.000" | 10.750" | 1.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC100XP0 | Inch | Four Point | 10.000" | 10.750" | 1.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD100AR0 | Inch | Angular | 10.000" | 11.000" | 1.87 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD100CP0 | Inch | Radial | 10.000" | 11.000" | 1.88 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD100XP0 | Inch | Four Point | 10.000" | 11.000" | 1.88 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF100AR0 | Inch | Angular | 10.000" | 11.500" | 4.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF100CP0 | Inch | Radial | 10.000" | 11.500" | 4.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF100XP0 | Inch | Four Point | 10.000" | 11.500" | 4.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG100AR0 | Inch | Angular | 10.000" | 12.000" | 8.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG100CP0 | Inch | Radial | 10.000" | 12.000" | 7.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG100XP0 | Inch | Four Point | 10.000" | 12.000" | 7.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA110AR0 | Inch | Angular | 11.000" | 11.500" | 0.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA110CP0 | Inch | Radial | 11.000" | 11.500" | 0.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA110XP0 | Inch | Four Point | 11.000" | 11.500" | 0.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB110AR0 | Inch | Angular | 11.000" | 11.625" | 0.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB110CP0 | Inch | Radial | 11.000" | 11.625" | 0.75 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB110XP0 | Inch | Four Point | 11.000" | 11.625" | 0.75 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC110AR0 | Inch | Angular | 11.000" | 11.750" | 1.14 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC110CP0 | Inch | Radial | 11.000" | 11.750" | 1.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC110XP0 | Inch | Four Point | 11.000" | 11.750" | 1.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD110AR0 | Inch | Angular | 11.000" | 12.000" | 2.05 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD110CP0 | Inch | Radial | 11.000" | 12.000" | 2.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD110XP0 | Inch | Four Point | 11.000" | 12.000" | 2.06 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF110AR0 | Inch | Angular | 11.000" | 12.500" | 4.75 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF110CP0 | Inch | Radial | 11.000" | 12.500" | 4.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF110XP0 | Inch | Four Point | 11.000" | 12.500" | 4.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG110AR0 | Inch | Angular | 11.000" | 13.000" | 8.68 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG110CP0 | Inch | Radial | 11.000" | 13.000" | 8.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG110XP0 | Inch | Four Point | 11.000" | 13.000" | 8.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA120AR0 | Inch | Angular | 12.000" | 12.500" | 0.54 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA120CP0 | Inch | Radial | 12.000" | 12.500" | 0.56 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SA120XP0 | Inch | Four Point | 12.000" | 12.500" | 0.56 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB120AR0 | Inch | Angular | 12.000" | 12.625" | 0.85 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB120CP0 | Inch | Radial | 12.000" | 12.625" | 0.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB120XP0 | Inch | Four Point | 12.000" | 12.625" | 0.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC120AR0 | Inch | Angular | 12.000" | 12.750" | 1.23 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC120CP0 | Inch | Radial | 12.000" | 12.750" | 1.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC120XP0 | Inch | Four Point | 12.000" | 12.750" | 1.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD120AR0 | Inch | Angular | 12.000" | 13.000" | 2.23 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD120CP0 | Inch | Radial | 12.000" | 13.000" | 2.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD120XP0 | Inch | Four Point | 12.000" | 13.000" | 2.25 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF120AR0 | Inch | Angular | 12.000" | 13.500" | 5.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF120CP0 | Inch | Radial | 12.000" | 13.500" | 5.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF120XP0 | Inch | Four Point | 12.000" | 13.500" | 5.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG120AR0 | Inch | Angular | 12.000" | 14.000" | 9.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG120CP0 | Inch | Radial | 12.000" | 14.000" | 9.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG120XP0 | Inch | Four Point | 12.000" | 14.000" | 9.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB140AR0 | Inch | Angular | 14.000" | 14.625" | 0.98 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB140CP0 | Inch | Radial | 14.000" | 14.625" | 1.05 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB140XP0 | Inch | Four Point | 14.000" | 14.625" | 1.05 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC140AR0 | Inch | Angular | 14.000" | 14.750" | 1.43 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC140CP0 | Inch | Radial | 14.000" | 14.750" | 1.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC140XP0 | Inch | Four Point | 14.000" | 14.750" | 1.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD140AR0 | Inch | Angular | 14.000" | 15.000" | 2.57 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD140CP0 | Inch | Radial | 14.000" | 15.000" | 2.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD140XP0 | Inch | Four Point | 14.000" | 15.000" | 2.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF140AR0 | Inch | Angular | 14.000" | 15.500" | 5.76 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF140CP0 | Inch | Radial | 14.000" | 15.500" | 6.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF140XP0 | Inch | Four Point | 14.000" | 15.500" | 6.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG140AR0 | Inch | Angular | 14.000" | 16.000" | 10.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG140CP0 | Inch | Radial | 14.000" | 16.000" | 10.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG140XP0 | Inch | Four Point | 14.000" | 16.000" | 10.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB160AR0 | Inch | Angular | 16.000" | 16.625" | 1.12 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB160CP0 | Inch | Radial | 16.000" | 16.625" | 1.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB160XP0 | Inch | Four Point | 16.000" | 16.625" | 1.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC160AR0 | Inch | Angular | 16.000" | 16.750" | 1.63 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC160CP0 | Inch | Radial | 16.000" | 16.750" | 1.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC160XP0 | Inch | Four Point | 16.000" | 16.750" | 1.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD160AR0 | Inch | Angular | 16.000" | 17.000" | 2.93 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD160CP0 | Inch | Radial | 16.000" | 17.000" | 3.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD160XP0 | Inch | Four Point | 16.000" | 17.000" | 3.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF160AR0 | Inch | Angular | 16.000" | 17.500" | 6.78 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF160CP0 | Inch | Radial | 16.000" | 17.500" | 7.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF160XP0 | Inch | Four Point | 16.000" | 17.500" | 7.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG160AR0 | Inch | Angular | 16.000" | 18.000" | 12.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG160CP0 | Inch | Radial | 16.000" | 18.000" | 12.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG160XP0 | Inch | Four Point | 16.000" | 18.000" | 12.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB180AR0 | Inch | Angular | 18.000" | 18.625" | 1.26 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB180CP0 | Inch | Radial | 18.000" | 18.625" | 1.35 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB180XP0 | Inch | Four Point | 18.000" | 18.625" | 1.35 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC180AR0 | Inch | Angular | 18.000" | 18.750" | 1.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC180CP0 | Inch | Radial | 18.000" | 18.750" | 1.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC180XP0 | Inch | Four Point | 18.000" | 18.750" | 1.94 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD180AR0 | Inch | Angular | 18.000" | 19.000" | 3.29 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD180CP0 | Inch | Radial | 18.000" | 19.000" | 3.48 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD180XP0 | Inch | Four Point | 18.000" | 19.000" | 3.48 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF180AR0 | Inch | Angular | 18.000" | 19.500" | 7.67 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF180CP0 | Inch | Radial | 18.000" | 19.500" | 7.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF180XP0 | Inch | Four Point | 18.000" | 19.500" | 7.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG180AR0 | Inch | Angular | 18.000" | 20.000" | 13.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG180CP0 | Inch | Radial | 18.000" | 20.000" | 13.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG180XP0 | Inch | Four Point | 18.000" | 20.000" | 13.7 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB200AR0 | Inch | Angular | 20.000" | 20.625" | 1.4 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB200CP0 | Inch | Radial | 20.000" | 20.625" | 1.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SB200XP0 | Inch | Four Point | 20.000" | 20.625" | 1.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC200AR0 | Inch | Angular | 20.000" | 20.750" | 2.03 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC200CP0 | Inch | Radial | 20.000" | 20.750" | 2.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC200XP0 | Inch | Four Point | 20.000" | 20.750" | 2.16 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD200AR0 | Inch | Angular | 20.000" | 21.000" | 3.65 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD200CP0 | Inch | Radial | 20.000" | 21.000" | 3.85 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD200XP0 | Inch | Four Point | 20.000" | 21.000" | 3.85 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF200AR0 | Inch | Angular | 20.000" | 21.500" | 8.47 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF200CP0 | Inch | Radial | 20.000" | 21.500" | 8.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF200XP0 | Inch | Four Point | 20.000" | 21.500" | 8.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG200AR0 | Inch | Angular | 20.000" | 22.000" | 15.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG200CP0 | Inch | Radial | 20.000" | 22.000" | 15.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG200XP0 | Inch | Four Point | 20.000" | 22.000" | 15.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD210AR0 | Inch | Angular | 21.000" | 22.000" | 3.83 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD210CP0 | Inch | Radial | 21.000" | 22.000" | 4.04 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD210XP0 | Inch | Four Point | 21.000" | 22.000" | 4.04 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG220AR0 | Inch | Angular | 22.000" | 24.000" | 16.63 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG220CP0 | Inch | Radial | 22.000" | 24.000" | 16.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG220XP0 | Inch | Four Point | 22.000" | 24.000" | 17.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC250AR0 | Inch | Angular | 25.000" | 25.750" | 2.52 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC250CP0 | Inch | Radial | 25.000" | 25.750" | 2.69 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC250XP0 | Inch | Four Point | 25.000" | 25.750" | 2.69 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD250AR0 | Inch | Angular | 25.000" | 26.000" | 4.54 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD250CP0 | Inch | Radial | 25.000" | 26.000" | 4.79 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD250XP0 | Inch | Four Point | 25.000" | 26.000" | 4.79 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF250AR0 | Inch | Angular | 25.000" | 26.500" | 10.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF250CP0 | Inch | Radial | 25.000" | 26.500" | 10.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF250XP0 | Inch | Four Point | 25.000" | 26.500" | 10.9 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG250AR0 | Inch | Angular | 25.000" | 27.000" | 18.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG250CP0 | Inch | Radial | 25.000" | 27.000" | 19.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG250XP0 | Inch | Four Point | 25.000" | 27.000" | 19.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC300AR0 | Inch | Angular | 30.000" | 30.750" | 3.02 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC300CP0 | Inch | Radial | 30.000" | 30.750" | 3.21 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SC300XP0 | Inch | Four Point | 30.000" | 30.750" | 3.21 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD300AR0 | Inch | Angular | 30.000" | 31.000" | 5.44 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD300CP0 | Inch | Radial | 30.000" | 31.000" | 5.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SD300XP0 | Inch | Four Point | 30.000" | 31.000" | 5.73 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF300AR0 | Inch | Angular | 30.000" | 31.500" | 12.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF300CP0 | Inch | Radial | 30.000" | 31.500" | 13.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF300XP0 | Inch | Four Point | 30.000" | 31.500" | 13.0 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG300AR0 | Inch | Angular | 30.000" | 32.000" | 22.5 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG300CP0 | Inch | Radial | 30.000" | 32.000" | 23.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG300XP0 | Inch | Four Point | 30.000" | 32.000" | 23.3 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF350AR0 | Inch | Angular | 35.000" | 36.500" | 14.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF350CP0 | Inch | Radial | 35.000" | 36.500" | 15.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF350XP0 | Inch | Four Point | 35.000" | 36.500" | 15.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG350AR0 | Inch | Angular | 35.000" | 37.000" | 26.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG350CP0 | Inch | Radial | 35.000" | 37.000" | 27.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG350XP0 | Inch | Four Point | 35.000" | 37.000" | 27.1 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF400AR0 | Inch | Angular | 40.000" | 41.500" | 16.6 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF400CP0 | Inch | Radial | 40.000" | 41.500" | 17.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SF400XP0 | Inch | Four Point | 40.000" | 41.500" | 17.2 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG400AR0 | Inch | Angular | 40.000" | 42.000" | 29.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG400CP0 | Inch | Radial | 40.000" | 42.000" | 30.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
| SG400XP0 | Inch | Four Point | 40.000" | 42.000" | 30.8 | Open | Aisi440c Stainless Steel | Aisi440c Stainless Steel | Brass |
REQUEST FOR QUOTE
