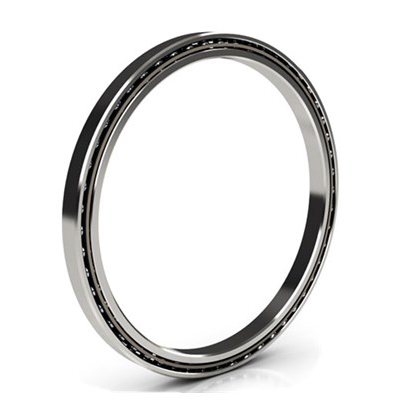

Inch Size RealiSlim Open Bearings
| Product Number | System of measurement | BEARING TYPE | Bore Dia | Outside Dia | weight | Seal Type | Ring Material | Ball Material | Cage Material |
|---|---|---|---|---|---|---|---|---|---|
| KAA10AG0 | Inch | Angular | 1.000" | 1.375" | 0.025 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA10CL0 | Inch | Radial | 1.000" | 1.375" | 0.026 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA10XL0 | Inch | Four Point | 1.000" | 1.375" | 0.025 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA15AG0 | Inch | Angular | 1.500" | 1.875" | 0.038 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA15CL0 | Inch | Radial | 1.500" | 1.875" | 0.039 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA15XL0 | Inch | Four Point | 1.500" | 1.875" | 0.039 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA17AG0 | Inch | Angular | 1.750" | 2.125" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA17CL0 | Inch | Radial | 1.750" | 2.125" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KAA17XL0 | Inch | Four Point | 1.750" | 2.125" | 0.045 | Open | 52100 Chrome steel | 52100 Chrome steel | Nylon |
| KA020AR0 | Inch | Angular | 2.000" | 2.500" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA020CP0 | Inch | Radial | 2.000" | 2.500" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA020XP0 | Inch | Four Point | 2.000" | 2.500" | 0.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB020AR0 | Inch | Angular | 2.000" | 2.625" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB020CP0 | Inch | Radial | 2.000" | 2.625" | 0.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB020XP0 | Inch | Four Point | 2.000" | 2.625" | 0.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA025AR0 | Inch | Angular | 2.500" | 3.000" | 0.12 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA025CP0 | Inch | Radial | 2.500" | 3.000" | 0.13 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA025XP0 | Inch | Four Point | 2.500" | 3.000" | 0.13 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB025AR0 | Inch | Angular | 2.500" | 3.125" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB025CP0 | Inch | Radial | 2.500" | 3.125" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB025XP0 | Inch | Four Point | 2.500" | 3.125" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA027XP0 | Inch | Four Point | 2.750" | 3.250" | 0.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA030AR0 | Inch | Angular | 3.000" | 3.500" | 0.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA030CP0 | Inch | Radial | 3.000" | 3.500" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA030XP0 | Inch | Four Point | 3.000" | 3.500" | 0.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB030AR0 | Inch | Angular | 3.000" | 3.625" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB030CP0 | Inch | Radial | 3.000" | 3.625" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB030XP0 | Inch | Four Point | 3.000" | 3.625" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA035AR0 | Inch | Angular | 3.500" | 4.000" | 0.17 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA035CP0 | Inch | Radial | 3.500" | 4.000" | 0.18 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA035XP0 | Inch | Four Point | 3.500" | 4.000" | 0.18 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB035AR0 | Inch | Angular | 3.500" | 4.125" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB035CP0 | Inch | Radial | 3.500" | 4.125" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB035XP0 | Inch | Four Point | 3.500" | 4.125" | 0.27 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA040AR0 | Inch | Angular | 4.000" | 4.500" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA040CP0 | Inch | Radial | 4.000" | 4.500" | 1205.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA040XP0 | Inch | Four Point | 4.000" | 4.500" | 0.19 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB040AR0 | Inch | Angular | 4.000" | 4.625" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB040CP0 | Inch | Radial | 4.000" | 4.625" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB040XP0 | Inch | Four Point | 4.000" | 4.625" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC040AR0 | Inch | Angular | 4.000" | 4.750" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC040CP0 | Inch | Radial | 4.000" | 4.750" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC040XP0 | Inch | Four Point | 4.000" | 4.750" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD040AR0 | Inch | Angular | 4.000" | 5.000" | 0.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD040CP0 | Inch | Radial | 4.000" | 5.000" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD040XP0 | Inch | Four Point | 4.000" | 5.000" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF040AR0 | Inch | Angular | 4.000" | 5.500" | 1.92 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF040CP0 | Inch | Radial | 4.000" | 5.500" | 1.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF040XP0 | Inch | Four Point | 4.000" | 5.500" | 1.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG040AR0 | Inch | Angular | 4.000" | 6.000" | 3.61 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG040CP0 | Inch | Radial | 4.000" | 6.000" | 3.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG040XP0 | Inch | Four Point | 4.000" | 6.000" | 3.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA042AR0 | Inch | Angular | 4.250" | 4.750" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA042CP0 | Inch | Radial | 4.250" | 4.750" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA042XP0 | Inch | Four Point | 4.250" | 4.750" | 0.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB042AR0 | Inch | Angular | 4.250" | 4.875" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB042CP0 | Inch | Radial | 4.250" | 4.875" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB042XP0 | Inch | Four Point | 4.250" | 4.875" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC042AR0 | Inch | Angular | 4.250" | 5.000" | 0.46 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC042CP0 | Inch | Radial | 4.250" | 5.000" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC042XP0 | Inch | Four Point | 4.250" | 5.000" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD042AR0 | Inch | Angular | 4.250" | 5.250" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD042CP0 | Inch | Radial | 4.250" | 5.250" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD042XP0 | Inch | Four Point | 4.250" | 5.250" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF042AR0 | Inch | Angular | 4.250" | 5.750" | 2.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF042CP0 | Inch | Radial | 4.250" | 5.750" | 2.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF042XP0 | Inch | Four Point | 4.250" | 5.750" | 2.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG042AR0 | Inch | Angular | 4.250" | 6.250" | 3.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG042CP0 | Inch | Radial | 4.250" | 6.250" | 3.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG042XP0 | Inch | Four Point | 4.250" | 6.250" | 3.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA045AR0 | Inch | Angular | 4.500" | 5.000" | 0.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA045CP0 | Inch | Radial | 4.500" | 5.000" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA045XP0 | Inch | Four Point | 4.500" | 5.000" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB045AR0 | Inch | Angular | 4.500" | 5.125" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB045CP0 | Inch | Radial | 4.500" | 5.125" | 0.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB045XP0 | Inch | Four Point | 4.500" | 5.125" | 0.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC045AR0 | Inch | Angular | 4.500" | 5.250" | 0.49 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC045CP0 | Inch | Radial | 4.500" | 5.250" | 0.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC045XP0 | Inch | Four Point | 4.500" | 5.250" | 0.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD045AR0 | Inch | Angular | 4.500" | 5.500" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD045CP0 | Inch | Radial | 4.500" | 5.500" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD045XP0 | Inch | Four Point | 4.500" | 5.500" | 0.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF045AR0 | Inch | Angular | 4.500" | 6.000" | 2.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF045CP0 | Inch | Radial | 4.500" | 6.000" | 2.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF045XP0 | Inch | Four Point | 4.500" | 6.000" | 2.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG045AR0 | Inch | Angular | 4.500" | 6.500" | 3.95 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG045CP0 | Inch | Radial | 4.500" | 6.500" | 4.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG045XP0 | Inch | Four Point | 4.500" | 6.500" | 4.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA047AR0 | Inch | Angular | 4.750" | 5.250" | 0.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA047CP0 | Inch | Radial | 4.750" | 5.250" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA047XP0 | Inch | Four Point | 4.750" | 5.250" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB047AR0 | Inch | Angular | 4.750" | 5.375" | 0.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB047CP0 | Inch | Radial | 4.750" | 5.375" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB047XP0 | Inch | Four Point | 4.750" | 5.375" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC047AR0 | Inch | Angular | 4.750" | 5.500" | 0.51 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC047CP0 | Inch | Radial | 4.750" | 5.500" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC047XP0 | Inch | Four Point | 4.750" | 5.500" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD047AR0 | Inch | Angular | 4.750" | 5.750" | 0.93 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD047CP0 | Inch | Radial | 4.750" | 5.750" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD047XP0 | Inch | Four Point | 4.750" | 5.750" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF047AR0 | Inch | Angular | 4.750" | 6.250" | 2.26 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF047CP0 | Inch | Radial | 4.750" | 6.250" | 2.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF047XP0 | Inch | Four Point | 4.750" | 6.250" | 2.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG047AR0 | Inch | Angular | 4.750" | 6.750" | 4.17 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG047CP0 | Inch | Radial | 4.750" | 6.750" | 4.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG047XP0 | Inch | Four Point | 4.750" | 6.750" | 4.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA050AR0 | Inch | Angular | 5.000" | 5.500" | 0.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA050CP0 | Inch | Radial | 5.000" | 5.500" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA050XP0 | Inch | Four Point | 5.000" | 5.500" | 0.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB050AR0 | Inch | Angular | 5.000" | 5.625" | 0.37 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB050CP0 | Inch | Radial | 5.000" | 5.625" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB050XP0 | Inch | Four Point | 5.000" | 5.625" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC050AR0 | Inch | Angular | 5.000" | 5.750" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC050CP0 | Inch | Radial | 5.000" | 5.750" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC050XP0 | Inch | Four Point | 5.000" | 5.750" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD050AR0 | Inch | Angular | 5.000" | 6.000" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD050CP0 | Inch | Radial | 5.000" | 6.000" | 1.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD050XP0 | Inch | Four Point | 5.000" | 6.000" | 1.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF050AR0 | Inch | Angular | 5.000" | 6.500" | 2.37 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF050CP0 | Inch | Radial | 5.000" | 6.500" | 2.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF050XP0 | Inch | Four Point | 5.000" | 6.500" | 2.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG050AR0 | Inch | Angular | 5.000" | 7.000" | 4.42 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG050CP0 | Inch | Radial | 5.000" | 7.000" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG050XP0 | Inch | Four Point | 5.000" | 7.000" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA055AR0 | Inch | Angular | 5.500" | 6.000" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA055CP0 | Inch | Radial | 5.500" | 6.000" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA055XP0 | Inch | Four Point | 5.500" | 6.000" | 0.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB055AR0 | Inch | Angular | 5.500" | 6.125" | 0.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB055CP0 | Inch | Radial | 5.500" | 6.125" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB055XP0 | Inch | Four Point | 5.500" | 6.125" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC055AR0 | Inch | Angular | 5.500" | 6.250" | 0.58 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC055CP0 | Inch | Radial | 5.500" | 6.250" | 0.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC055XP0 | Inch | Four Point | 5.500" | 6.250" | 0.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD055AR0 | Inch | Angular | 5.500" | 6.500" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD055CP0 | Inch | Radial | 5.500" | 6.500" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD055XP0 | Inch | Four Point | 5.500" | 6.500" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF055AR0 | Inch | Angular | 5.500" | 7.000" | 2.59 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF055CP0 | Inch | Radial | 5.500" | 7.000" | 2.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF055XP0 | Inch | Four Point | 5.500" | 7.000" | 2.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG055AR0 | Inch | Angular | 5.500" | 7.500" | 4.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG055CP0 | Inch | Radial | 5.500" | 7.500" | 4.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG055XP0 | Inch | Four Point | 5.500" | 7.500" | 4.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA060AR0 | Inch | Angular | 6.000" | 6.500" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA060CP0 | Inch | Radial | 6.000" | 6.500" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA060XP0 | Inch | Four Point | 6.000" | 6.500" | 0.28 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB060AR0 | Inch | Angular | 6.000" | 6.625" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB060CP0 | Inch | Radial | 6.000" | 6.625" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB060XP0 | Inch | Four Point | 6.000" | 6.625" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC060AR0 | Inch | Angular | 6.000" | 6.750" | 0.64 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC060CP0 | Inch | Radial | 6.000" | 6.750" | 0.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC060XP0 | Inch | Four Point | 6.000" | 6.750" | 0.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD060AR0 | Inch | Angular | 6.000" | 7.000" | 1.15 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD060CP0 | Inch | Radial | 6.000" | 7.000" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD060XP0 | Inch | Four Point | 6.000" | 7.000" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF060AR0 | Inch | Angular | 6.000" | 7.500" | 2.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF060CP0 | Inch | Radial | 6.000" | 7.500" | 2.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF060XP0 | Inch | Four Point | 6.000" | 7.500" | 2.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG060AR0 | Inch | Angular | 6.000" | 8.000" | 5.07 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG060CP0 | Inch | Radial | 6.000" | 8.000" | 5.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG060XP0 | Inch | Four Point | 6.000" | 8.000" | 5.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA065AR0 | Inch | Angular | 6.500" | 7.000" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA065CP0 | Inch | Radial | 6.500" | 7.000" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA065XP0 | Inch | Four Point | 6.500" | 7.000" | 0.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB065AR0 | Inch | Angular | 6.500" | 7.125" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB065CP0 | Inch | Radial | 6.500" | 7.125" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB065XP0 | Inch | Four Point | 6.500" | 7.125" | 0.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC065AR0 | Inch | Angular | 6.500" | 7.250" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC065CP0 | Inch | Radial | 6.500" | 7.250" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC065XP0 | Inch | Four Point | 6.500" | 7.250" | 0.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD065AR0 | Inch | Angular | 6.500" | 7.500" | 1.24 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD065CP0 | Inch | Radial | 6.500" | 7.500" | 1.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD065XP0 | Inch | Four Point | 6.500" | 7.500" | 1.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF065AR0 | Inch | Angular | 6.500" | 8.000" | 2.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF065CP0 | Inch | Radial | 6.500" | 8.000" | 2.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF065XP0 | Inch | Four Point | 6.500" | 8.000" | 2.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG065AR0 | Inch | Angular | 6.500" | 8.500" | 5.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG065CP0 | Inch | Radial | 6.500" | 8.500" | 5.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG065XP0 | Inch | Four Point | 6.500" | 8.500" | 5.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA070AR0 | Inch | Angular | 7.000" | 7.500" | 0.32 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA070CP0 | Inch | Radial | 7.000" | 7.500" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA070XP0 | Inch | Four Point | 7.000" | 7.500" | 0.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB070AR0 | Inch | Angular | 7.000" | 7.625" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB070CP0 | Inch | Radial | 7.000" | 7.625" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB070XP0 | Inch | Four Point | 7.000" | 7.625" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC070AR0 | Inch | Angular | 7.000" | 7.750" | 0.74 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC070CP0 | Inch | Radial | 7.000" | 7.750" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC070XP0 | Inch | Four Point | 7.000" | 7.750" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD070AR0 | Inch | Angular | 7.000" | 8.000" | 1.33 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD070CP0 | Inch | Radial | 7.000" | 8.000" | 1.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD070XP0 | Inch | Four Point | 7.000" | 8.000" | 1.31 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF070AR0 | Inch | Angular | 7.000" | 8.500" | 3.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF070CP0 | Inch | Radial | 7.000" | 8.500" | 3.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF070XP0 | Inch | Four Point | 7.000" | 9.000" | 3.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG070AR0 | Inch | Angular | 7.000" | 9.000" | 5.87 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG070CP0 | Inch | Radial | 7.000" | 9.000" | 5.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG070XP0 | Inch | Four Point | 7.000" | 9.000" | 5.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA075AR0 | Inch | Angular | 7.500" | 8.000" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA075CP0 | Inch | Radial | 7.500" | 8.000" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA075XP0 | Inch | Four Point | 7.500" | 8.000" | 0.34 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB075AR0 | Inch | Angular | 7.500" | 8.125" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB075CP0 | Inch | Radial | 7.500" | 8.125" | 0.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB075XP0 | Inch | Four Point | 7.500" | 8.125" | 0.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC075AR0 | Inch | Angular | 7.500" | 8.250" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC075CP0 | Inch | Radial | 7.500" | 8.250" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC075XP0 | Inch | Four Point | 7.500" | 8.250" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD075AR0 | Inch | Angular | 7.500" | 8.500" | 1.42 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD075CP0 | Inch | Radial | 7.500" | 8.500" | 1.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD075XP0 | Inch | Four Point | 7.500" | 8.500" | 1.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF075AR0 | Inch | Angular | 7.500" | 9.000" | 3.39 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF075CP0 | Inch | Radial | 7.500" | 9.000" | 3.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF075XP0 | Inch | Four Point | 7.500" | 9.000" | 3.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG075AR0 | Inch | Angular | 7.500" | 9.500" | 6.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG075CP0 | Inch | Radial | 7.500" | 9.500" | 6.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG075XP0 | Inch | Four Point | 7.500" | 9.500" | 6.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA080AR0 | Inch | Angular | 8.000" | 8.500" | 0.36 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA080CP0 | Inch | Radial | 8.000" | 8.500" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA080XP0 | Inch | Four Point | 8.000" | 8.500" | 0.38 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB080AR0 | Inch | Angular | 8.000" | 8.625" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB080CP0 | Inch | Radial | 8.000" | 8.625" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB080XP0 | Inch | Four Point | 8.000" | 8.625" | 0.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC080AR0 | Inch | Angular | 8.000" | 8.750" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC080CP0 | Inch | Radial | 8.000" | 8.750" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC080XP0 | Inch | Four Point | 8.000" | 8.750" | 0.84 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD080AR0 | Inch | Angular | 8.000" | 9.000" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD080CP0 | Inch | Radial | 8.000" | 9.000" | 1.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD080XP0 | Inch | Four Point | 8.000" | 9.000" | 1.53 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF080AR0 | Inch | Angular | 8.000" | 9.500" | 3.61 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF080CP0 | Inch | Radial | 8.000" | 9.500" | 3.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF080XP0 | Inch | Four Point | 8.000" | 9.500" | 3.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG080AR0 | Inch | Angular | 8.000" | 10.000" | 6.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG080CP0 | Inch | Radial | 8.000" | 10.000" | 6.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG080XP0 | Inch | Four Point | 8.000" | 10.000" | 6.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA090AR0 | Inch | Angular | 9.000" | 9.500" | 0.41 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA090CP0 | Inch | Radial | 9.000" | 9.500" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA090XP0 | Inch | Four Point | 9.000" | 9.500" | 0.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB090AR0 | Inch | Angular | 9.000" | 9.625" | 0.64 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB090CP0 | Inch | Radial | 9.000" | 9.625" | 0.66 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB090XP0 | Inch | Four Point | 9.000" | 9.625" | 0.66 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC090AR0 | Inch | Angular | 9.000" | 9.750" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC090CP0 | Inch | Radial | 9.000" | 9.750" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC090XP0 | Inch | Four Point | 9.000" | 9.750" | 0.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD090AR0 | Inch | Angular | 9.000" | 10.000" | 1.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD090CP0 | Inch | Radial | 9.000" | 10.000" | 1.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD090XP0 | Inch | Four Point | 9.000" | 10.000" | 1.72 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF090AR0 | Inch | Angular | 9.000" | 10.500" | 3.95 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF090CP0 | Inch | Radial | 9.000" | 10.500" | 3.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF090XP0 | Inch | Four Point | 9.000" | 10.500" | 3.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG090AR0 | Inch | Angular | 9.000" | 11.000" | 7.22 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG090CP0 | Inch | Radial | 9.000" | 11.000" | 7.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG090XP0 | Inch | Four Point | 9.000" | 11.000" | 7.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA100AR0 | Inch | Angular | 10.000" | 10.500" | 0.45 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA100CP0 | Inch | Radial | 10.000" | 10.500" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA100XP0 | Inch | Four Point | 10.000" | 10.500" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB100AR0 | Inch | Angular | 10.000" | 10.625" | 0.71 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB100CP0 | Inch | Radial | 10.000" | 10.625" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB100XP0 | Inch | Four Point | 10.000" | 10.625" | 0.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC100AR0 | Inch | Angular | 10.000" | 10.750" | 1.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC100CP0 | Inch | Radial | 10.000" | 10.750" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC100XP0 | Inch | Four Point | 10.000" | 10.750" | 1.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD100AR0 | Inch | Angular | 10.000" | 11.000" | 1.87 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD100CP0 | Inch | Radial | 10.000" | 11.000" | 1.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD100XP0 | Inch | Four Point | 10.000" | 11.000" | 1.88 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF100AR0 | Inch | Angular | 10.000" | 11.500" | 4.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF100CP0 | Inch | Radial | 10.000" | 11.500" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF100XP0 | Inch | Four Point | 10.000" | 11.500" | 4.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG100AR0 | Inch | Angular | 10.000" | 12.000" | 8.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG100CP0 | Inch | Radial | 10.000" | 12.000" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG100XP0 | Inch | Four Point | 10.000" | 12.000" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA110AR0 | Inch | Angular | 11.000" | 11.500" | 0.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA110CP0 | Inch | Radial | 11.000" | 11.500" | 0.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA110XP0 | Inch | Four Point | 11.000" | 11.500" | 0.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB110AR0 | Inch | Angular | 11.000" | 11.625" | 0.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB110CP0 | Inch | Radial | 11.000" | 11.625" | 0.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB110XP0 | Inch | Four Point | 11.000" | 11.625" | 0.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC110AR0 | Inch | Angular | 11.000" | 11.750" | 1.14 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC110CP0 | Inch | Radial | 11.000" | 11.750" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC110XP0 | Inch | Four Point | 11.000" | 11.750" | 1.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD110AR0 | Inch | Angular | 11.000" | 12.000" | 2.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD110CP0 | Inch | Radial | 11.000" | 12.000" | 2.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD110XP0 | Inch | Four Point | 11.000" | 12.000" | 2.06 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF110AR0 | Inch | Angular | 11.000" | 12.500" | 4.75 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF110CP0 | Inch | Radial | 11.000" | 12.500" | 4.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF110XP0 | Inch | Four Point | 11.000" | 12.500" | 4.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG110AR0 | Inch | Angular | 11.000" | 13.000" | 8.68 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG110CP0 | Inch | Radial | 11.000" | 13.000" | 8.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG110XP0 | Inch | Four Point | 11.000" | 13.000" | 8.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA120AR0 | Inch | Angular | 12.000" | 12.500" | 0.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA120CP0 | Inch | Radial | 12.000" | 12.500" | 0.56 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KA120XP0 | Inch | Four Point | 12.000" | 12.500" | 0.56 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB120AR0 | Inch | Angular | 12.000" | 12.625" | 0.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB120CP0 | Inch | Radial | 12.000" | 12.625" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB120XP0 | Inch | Four Point | 12.000" | 12.625" | 0.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC120AR0 | Inch | Angular | 12.000" | 12.750" | 1.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC120CP0 | Inch | Radial | 12.000" | 12.750" | 1.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC120XP0 | Inch | Four Point | 12.000" | 12.750" | 1.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD120AR0 | Inch | Angular | 12.000" | 13.000" | 2.23 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD120CP0 | Inch | Radial | 12.000" | 13.000" | 2.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD120XP0 | Inch | Four Point | 12.000" | 13.000" | 2.25 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF120AR0 | Inch | Angular | 12.000" | 13.500" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF120CP0 | Inch | Radial | 12.000" | 13.500" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF120XP0 | Inch | Four Point | 12.000" | 13.500" | 5.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG120AR0 | Inch | Angular | 12.000" | 14.000" | 9.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG120CP0 | Inch | Radial | 12.000" | 14.000" | 9.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG120XP0 | Inch | Four Point | 12.000" | 14.000" | 9.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB140AR0 | Inch | Angular | 14.000" | 14.625" | 0.98 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB140CP0 | Inch | Radial | 14.000" | 14.625" | 1.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB140XP0 | Inch | Four Point | 14.000" | 14.625" | 1.05 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC140AR0 | Inch | Angular | 14.000" | 14.750" | 1.43 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC140CP0 | Inch | Radial | 14.000" | 14.750" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC140XP0 | Inch | Four Point | 14.000" | 14.750" | 1.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD140AR0 | Inch | Angular | 14.000" | 15.000" | 2.57 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD140CP0 | Inch | Radial | 14.000" | 15.000" | 2.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD140XP0 | Inch | Four Point | 14.000" | 15.000" | 2.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF140AR0 | Inch | Angular | 14.000" | 15.500" | 5.76 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF140CP0 | Inch | Radial | 14.000" | 15.500" | 6.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF140XP0 | Inch | Four Point | 14.000" | 15.500" | 6.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG140AR0 | Inch | Angular | 14.000" | 16.000" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG140CP0 | Inch | Radial | 14.000" | 16.000" | 10.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG140XP0 | Inch | Four Point | 14.000" | 16.000" | 10.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB160AR0 | Inch | Angular | 16.000" | 16.625" | 1.12 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB160CP0 | Inch | Radial | 16.000" | 16.625" | 1.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB160XP0 | Inch | Four Point | 16.000" | 16.625" | 1.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC160AR0 | Inch | Angular | 16.000" | 16.750" | 1.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC160CP0 | Inch | Radial | 16.000" | 16.750" | 1.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC160XP0 | Inch | Four Point | 16.000" | 16.750" | 1.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD160AR0 | Inch | Angular | 16.000" | 17.000" | 2.93 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD160CP0 | Inch | Radial | 16.000" | 17.000" | 3.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD160XP0 | Inch | Four Point | 16.000" | 17.000" | 3.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF160AR0 | Inch | Angular | 16.000" | 17.500" | 6.78 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF160CP0 | Inch | Radial | 16.000" | 17.500" | 7.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF160XP0 | Inch | Four Point | 16.000" | 17.500" | 7.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG160AR0 | Inch | Angular | 16.000" | 18.000" | 12.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG160CP0 | Inch | Radial | 16.000" | 18.000" | 12.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG160XP0 | Inch | Four Point | 16.000" | 18.000" | 12.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB180AR0 | Inch | Angular | 18.000" | 18.625" | 1.26 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB180CP0 | Inch | Radial | 18.000" | 18.625" | 1.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB180XP0 | Inch | Four Point | 18.000" | 18.625" | 1.35 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC180AR0 | Inch | Angular | 18.000" | 18.750" | 1.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC180CP0 | Inch | Radial | 18.000" | 18.750" | 1.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC180XP0 | Inch | Four Point | 18.000" | 18.750" | 1.94 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD180AR0 | Inch | Angular | 18.000" | 19.000" | 3.29 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD180CP0 | Inch | Radial | 18.000" | 19.000" | 3.48 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD180XP0 | Inch | Radial | 18.000" | 19.000" | 36268.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF180AR0 | Inch | Angular | 18.000" | 19.500" | 7.67 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF180CP0 | Inch | Radial | 18.000" | 19.500" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF180XP0 | Inch | Four Point | 18.000" | 19.500" | 7.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG180AR0 | Inch | Angular | 18.000" | 20.000" | 13.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG180CP0 | Inch | Radial | 18.000" | 20.000" | 13.7 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG180XP0 | Inch | Four Point | 18.000" | 20.000" | 0.08 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB200AR0 | Inch | Angular | 20.000" | 20.625" | 1.4 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB200CP0 | Inch | Radial | 20.000" | 20.625" | 1.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KB200XP0 | Inch | Four Point | 20.000" | 20.625" | 1.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC200AR0 | Inch | Angular | 20.000" | 20.750" | 2.03 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC200CP0 | Inch | Radial | 20.000" | 20.750" | 2.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC200XP0 | Inch | Four Point | 20.000" | 20.750" | 2.16 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD200AR0 | Inch | Angular | 20.000" | 21.000" | 3.65 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD200CP0 | Inch | Radial | 20.000" | 21.000" | 3.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD200XP0 | Inch | Four Point | 20.000" | 21.000" | 3.85 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF200AR0 | Inch | Angular | 20.000" | 21.500" | 8.47 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF200CP0 | Inch | Radial | 20.000" | 21.500" | 8.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF200XP0 | Inch | Four Point | 20.000" | 21.500" | 8.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG200AR0 | Inch | Angular | 20.000" | 22.000" | 15.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG200CP0 | Inch | Radial | 20.000" | 22.000" | 15.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG200XP0 | Inch | Four Point | 20.000" | 22.000" | 15.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD210AR0 | Inch | Angular | 21.000" | 22.000" | 3.83 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD210CP0 | Inch | Radial | 21.000" | 22.000" | 4.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD210XP0 | Inch | Four Point | 21.000" | 22.000" | 4.04 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG220AR0 | Inch | Angular | 22.000" | 24.000" | 16.63 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG220CP0 | Inch | Radial | 22.000" | 24.000" | 16.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG220XP0 | Inch | Four Point | 22.000" | 24.000" | 17.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC250AR0 | Inch | Angular | 25.000" | 25.750" | 2.52 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC250CP0 | Inch | Radial | 25.000" | 25.750" | 2.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC250XP0 | Inch | Four Point | 25.000" | 25.750" | 2.69 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD250AR0 | Inch | Angular | 25.000" | 26.000" | 4.54 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD250CP0 | Inch | Radial | 25.000" | 26.000" | 4.79 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD250XP0 | Inch | Four Point | 25.000" | 26.000" | 4.79 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF250AR0 | Inch | Angular | 25.000" | 26.500" | 10.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF250CP0 | Inch | Radial | 25.000" | 26.500" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF250XP0 | Inch | Four Point | 25.000" | 26.500" | 10.9 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG250AR0 | Inch | Angular | 25.000" | 27.000" | 18.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG250CP0 | Inch | Radial | 25.000" | 27.000" | 19.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG250XP0 | Inch | Four Point | 25.000" | 27.000" | 19.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC300AR0 | Inch | Angular | 30.000" | 30.750" | 3.02 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC300CP0 | Inch | Radial | 30.000" | 30.750" | 3.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KC300XP0 | Inch | Four Point | 30.000" | 30.750" | 3.21 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD300AR0 | Inch | Angular | 30.000" | 31.000" | 5.44 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD300CP0 | Inch | Radial | 30.000" | 31.000" | 5.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KD300XP0 | Inch | Four Point | 30.000" | 31.000" | 5.73 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF300AR0 | Inch | Angular | 30.000" | 31.500" | 12.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF300CP0 | Inch | Radial | 30.000" | 31.500" | 13.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF300XP0 | Inch | Four Point | 30.000" | 31.500" | 13.0 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG300AR0 | Inch | Angular | 30.000" | 32.000" | 22.5 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG300CP0 | Inch | Radial | 30.000" | 32.000" | 23.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG300XP0 | Inch | Four Point | 30.000" | 32.000" | 23.3 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF350AR0 | Inch | Angular | 35.000" | 36.500" | 14.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF350CP0 | Inch | Radial | 35.000" | 36.500" | 15.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF350XP0 | Inch | Four Point | 35.000" | 36.500" | 15.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG350AR0 | Inch | Angular | 35.000" | 37.000" | 26.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG350CP0 | Inch | Radial | 35.000" | 37.000" | 27.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG350XP0 | Inch | Four Point | 35.000" | 37.000" | 27.1 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF400AR0 | Inch | Angular | 40.000" | 41.500" | 16.6 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF400CP0 | Inch | Radial | 40.000" | 41.500" | 17.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KF400XP0 | Inch | Four Point | 40.000" | 41.500" | 17.2 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG400AR0 | Inch | Angular | 40.000" | 42.000" | 29.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG400CP0 | Inch | Radial | 40.000" | 42.000" | 30.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
| KG400XP0 | Inch | Four Point | 40.000" | 42.000" | 30.8 | Open | 52100 Chrome steel | 52100 Chrome steel | Brass |
REQUEST FOR QUOTE
