XV90
Crossed Roller TYPE

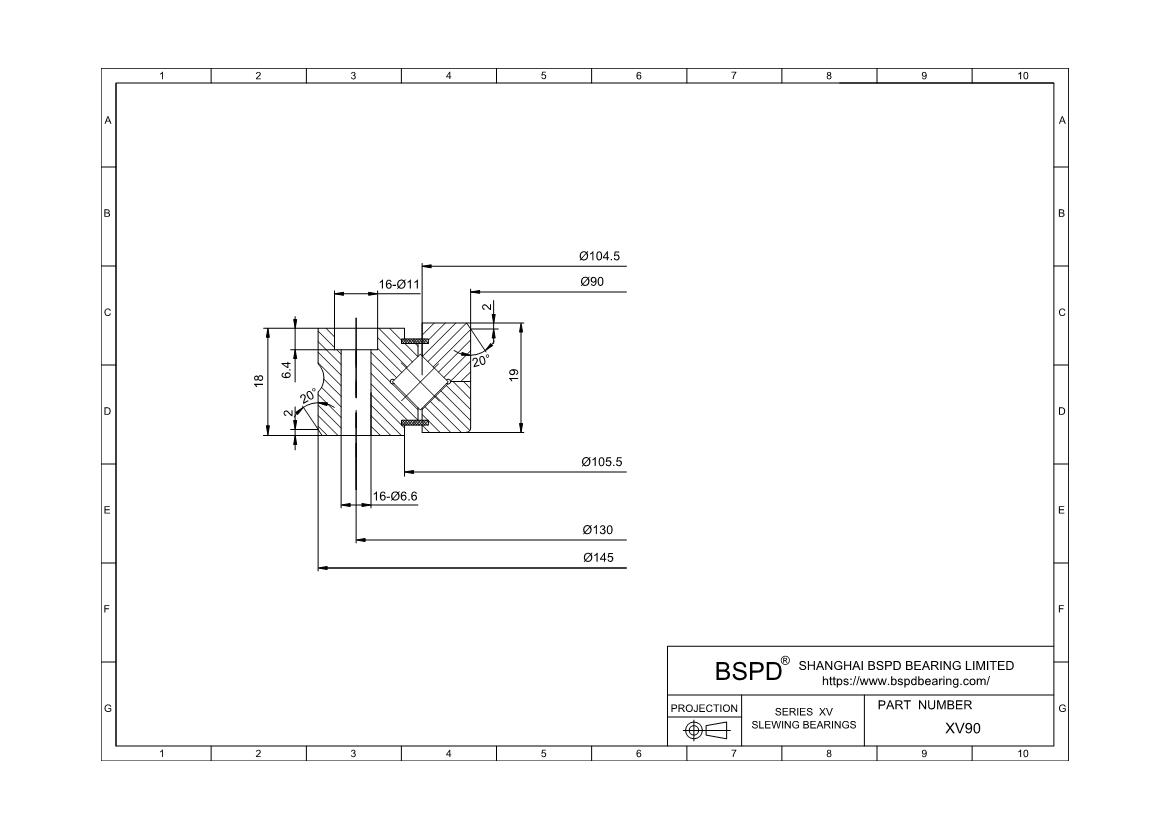

Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 145 mm； Width (Thickness): 18 mm;
REQUEST FOR QUOTE
Product Attributes
| XV90 Crossed roller bearing | |
| Part Number | XV90 |
| di | 90 mm Tolerance: J6 |
| Da | 145 mm Tolerance: h6 |
| Di | 105;5 mm |
| da | 104;5 mm |
| dB | 6;6 mm |
| dS | 11 mm |
| Ha | 18 mm |
| hi | 19 mm |
| La | 130 mm |
| Number of holes per ring(nϑr) | 16 |
| tS | 6;4 mm |
| weight(w) | 1;29 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;010 mm |
| Maximum permissible radial load against friction lock(Frper) | 15300 N |
| Basic dynamic load rating; axial(Ca) | 35000 N |
| Basic static load rating; axial(C0a) | 111000 N |
| Basic dynamic load rating; radial(Cr) | 24900 N |
| Basic static load rating; radial(C0r) | 54000 N |
| Limiting speed with preload | 364 1/min |
| Limiting speed with clearance | 728 1/min |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings XV90 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
