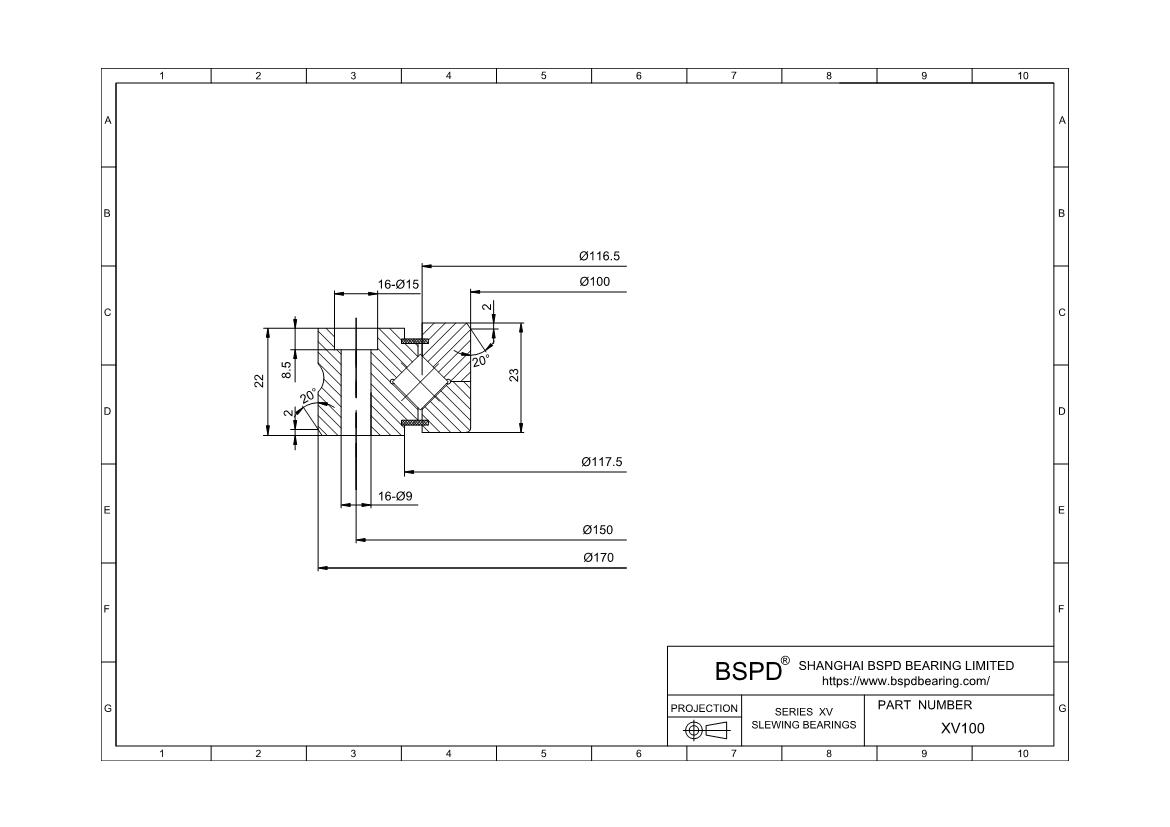

XV100
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 170 mm； Width (Thickness): 22 mm;
REQUEST FOR QUOTE
Product Attributes
| XV100 Crossed roller bearing | |
| Part Number | XV100 |
| di | 100 mm Tolerance: J6 |
| Da | 170 mm Tolerance: h6 |
| Di | 117;5 mm |
| da | 116;5 mm |
| dB | 9 mm |
| dS | 15 mm |
| Ha | 22 mm |
| hi | 23 mm |
| La | 150 mm |
| Number of holes per ring(nϑr) | 16 |
| tS | 8;5 mm |
| weight(w) | 2;31 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;010 mm |
| Maximum permissible radial load against friction lock(Frper) | 28200 N |
| Basic dynamic load rating; axial(Ca) | 54000 N |
| Basic static load rating; axial(C0a) | 163000 N |
| Basic dynamic load rating; radial(Cr) | 38500 N |
| Basic static load rating; radial(C0r) | 80000 N |
| Limiting speed with preload | 326 1/min |
| Limiting speed with clearance | 653 1/min |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings XV100 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
