XU160260
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 191 mm； Outer Diameter: 329 mm； Width (Thickness): 46 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU160260 |
| di | 191 mm |
| Da | 329 mm |

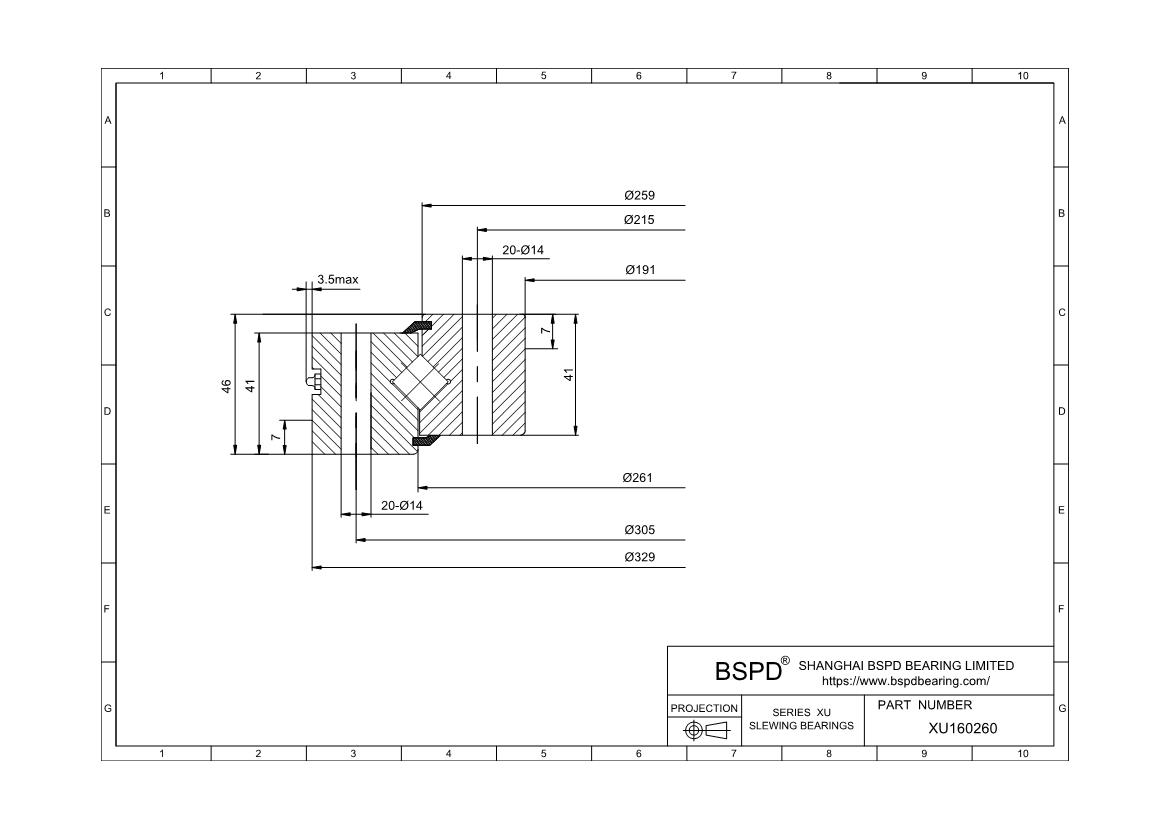

| DaZT | 327 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 261 mm |
| da | 259 mm |
| dB | 14 mm |
| dS | 193 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 46 mm |
| h | 41 mm |
| La | 305 mm |
| Li | 215 mm |
| Number of fixing holes in outer ring(na) | 20 |
| Number of fixing holes in inner ring(ni) | 20 |
| tS | 7 mm |
| weight(w) | 16 kg |
| Maximum permissible radial load against friction lock(Frper) | 82600 N |
| Basic dynamic load rating, axial(Ca) | 200000 N |
| Basic static load rating, axial(C0a) | 400000 N |
| Basic dynamic load rating, radial(Cr) | 142000 N |
| Basic static load rating, radial(C0r) | 197000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
