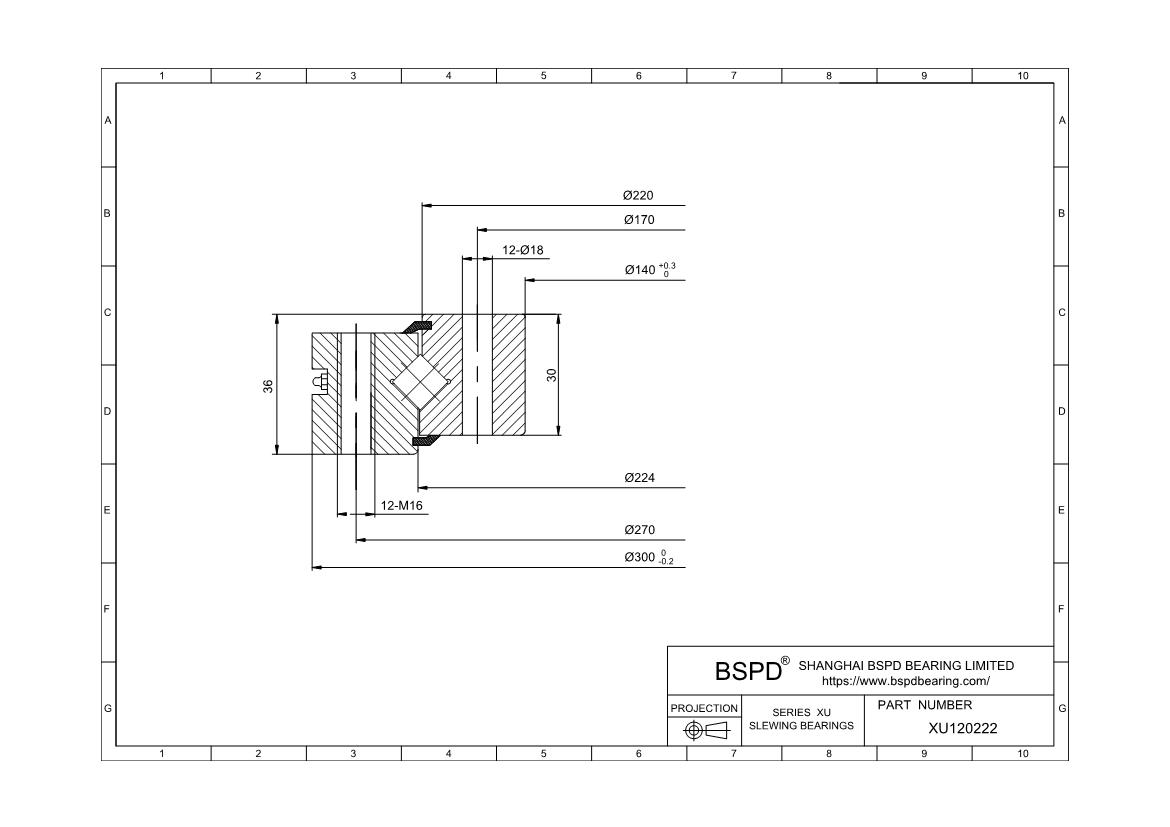

XU120222
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 300 mm； Width (Thickness): 36 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU120222 |
| di | 140 mm |
| Da | 300 mm |
| DaZT | 300 mm |
| Di | 224 mm |
| da | 220 mm |
| dB | 18 mm |
| dS | |
| H | 36 mm |
| h | 30 mm |
| La | 270 mm |
| Li | 170 mm |
| Number of fixing holes in outer ring(na) | 12 |
| Number of fixing holes in inner ring(ni) | 12 |
| tS | |
| weight(w) | 12 kg |
| Maximum permissible radial load against friction lock(Frper) | 65500 N |
| Basic dynamic load rating, axial(Ca) | 117000 N |
| Basic static load rating, axial(C0a) | 305000 N |
| Basic dynamic load rating, radial(Cr) | 84000 N |
| Basic static load rating, radial(C0r) | 150000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
