XSU080258
INA Slewing Bearings

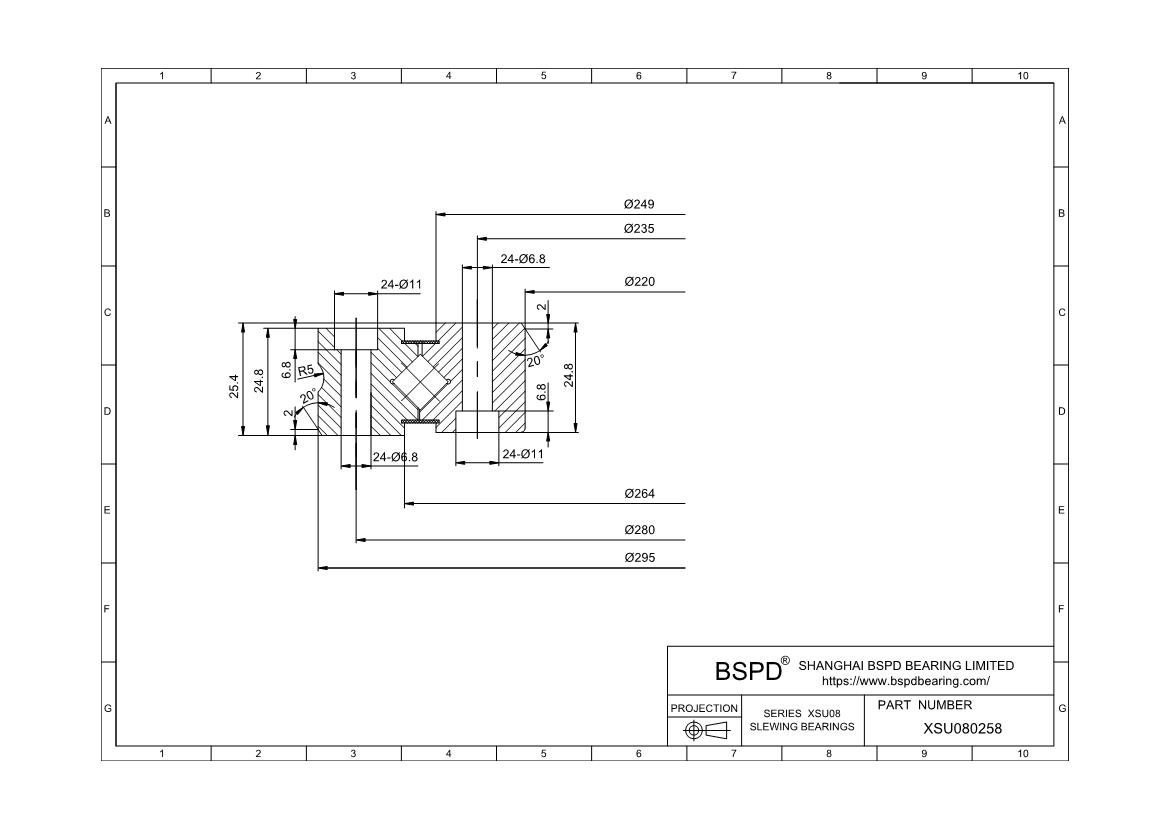

Dimensions: Bore (Inner) Diameter: 220 mm Tolerance: H6； Outer Diameter: 295 mm Tolerance: h6； Width (Thickness): 25.4 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XSU080258 |
| di | 220 mm Tolerance: H6 |
| Da | 295 mm Tolerance: h6 |
| Di | 264 mm |
| da | 249 mm |
| H | 25,4 mm |
| La | 280 mm |
| Li | 235 mm |
| Number of fixing holes in outer ring(na) | 24 |
| Number of fixing holes in inner ring(ni) | 24 |
| weight(w) | 5.1 kg |
| Maximum permissible radial load against friction lock(Frper) | 16400 N |
| Basic dynamic load rating, axial(Ca) | 82000 N |
| Basic static load rating, axial(C0a) | 370000 N |
| Basic dynamic load rating, radial(Cr) | 59000 N |
| Basic static load rating, radial(C0r) | 181000 N |
| Running accuracies (in relation to raceway)(A) | 0,01 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XSU080258 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
