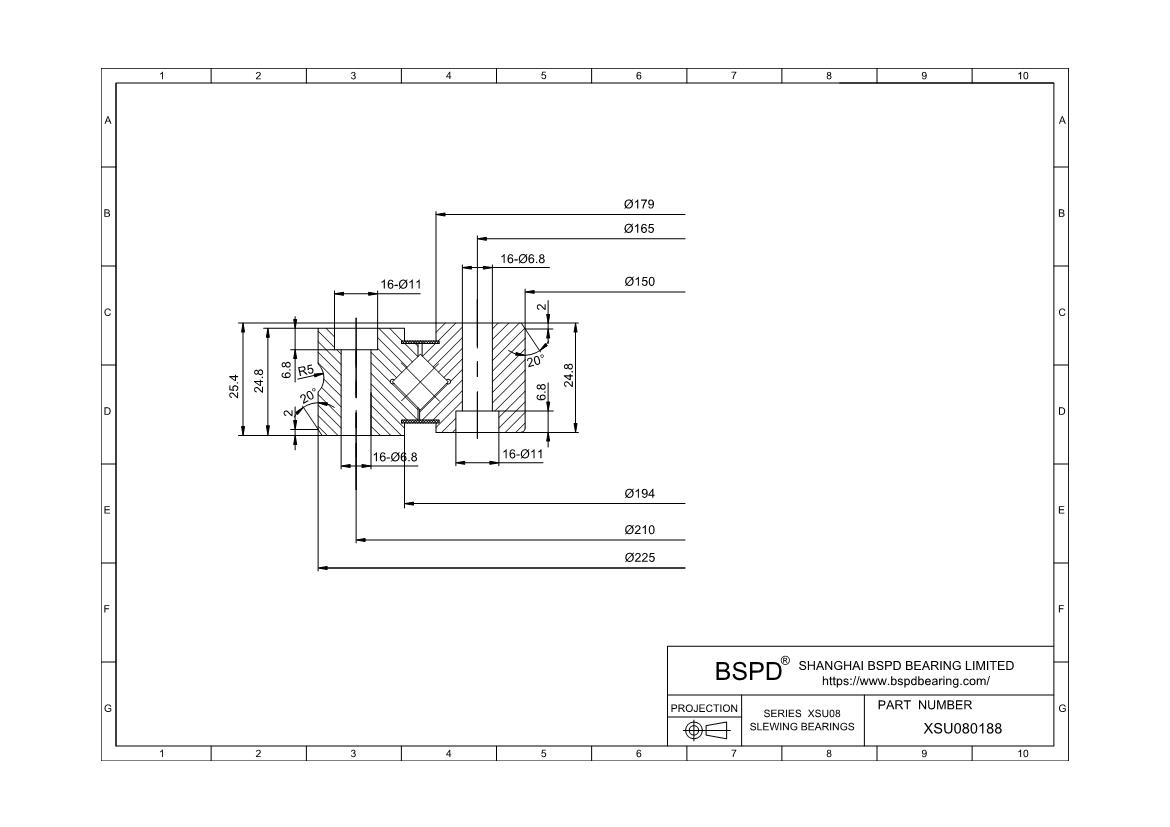

XSU080188
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 150 mm Tolerance: H6； Outer Diameter: 225 mm Tolerance: h6； Width (Thickness): 25.4 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XSU080188 |
| di | 150 mm Tolerance: H6 |
| Da | 225 mm Tolerance: h6 |
| Di | 194 mm |
| da | 179 mm |
| H | 25,4 mm |
| La | 210 mm |
| Li | 165 mm |
| Number of fixing holes in outer ring(na) | 16 |
| Number of fixing holes in inner ring(ni) | 16 |
| weight(w) | 3.7 kg |
| Maximum permissible radial load against friction lock(Frper) | 10900 N |
| Basic dynamic load rating, axial(Ca) | 70000 N |
| Basic static load rating, axial(C0a) | 265000 N |
| Basic dynamic load rating, radial(Cr) | 49500 N |
| Basic static load rating, radial(C0r) | 130000 N |
| Running accuracies (in relation to raceway)(A) | 0,01 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XSU080188 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
