XSI140414-N
INA Slewing Bearings

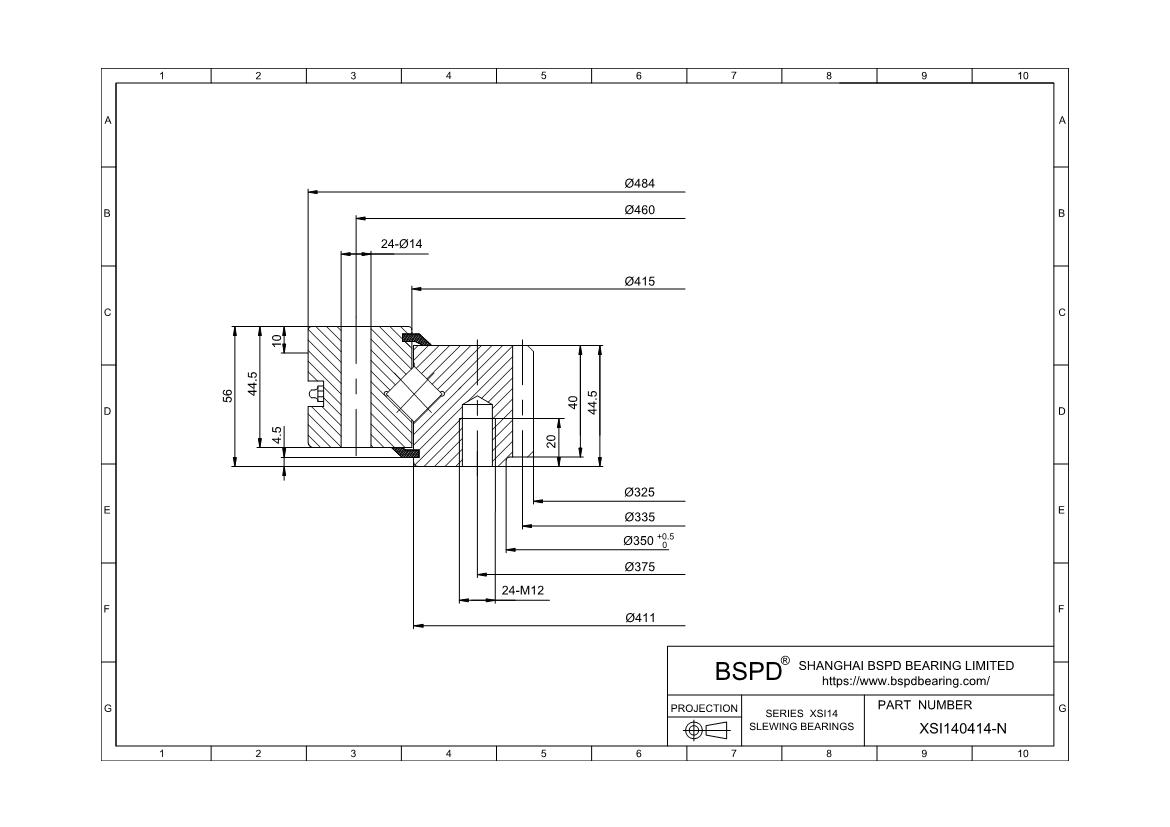

Dimensions: Bore (Inner) Diameter: 325 mm； Outer Diameter: 484 mm Centring lengths (see dimension drawing) Tolerance: -IT7； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XSI140414-N |
| di | 325 mm |
| Da | 484 mm Centring lengths (see dimension drawing) Tolerance: -IT7 |
| Di | 415 mm Tolerance: +0,5/0 |
| d0 | 335 mm |
| da | 411 mm Centring lengths (see dimension drawing) Tolerance: -IT7 |
| H | 56 mm |
| La | 460 mm |
| Li | 375 mm |
| Tooth modulus | 5 mm |
| Number of fixing holes in outer ring(na) | 24 |
| Number of fixing holes in inner ring(ni) | 24 |
| Number of teeth(z) | 67 |
| weight(w) | 31 kg |
| Maximum permissible radial load against friction lock(Frper) | 99100 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 17700 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 26200 N |
| Basic dynamic load rating, axial(Ca) | 202000 N |
| Basic static load rating, axial(C0a) | 530000 N |
| Basic dynamic load rating, radial(Cr) | 144000 N |
| Basic static load rating, radial(C0r) | 260000 N |
| Bearing clearance: preload(VSPmin) | 0,01 |
| Bearing clearance: preload(VSPmax) | 0,03 |
| Running accuracies (in relation to raceway)(A) | 0,04 mm |
| Running accuracies (in relation to raceway)(B) | 0,04 mm |
| Running accuracies (in relation to raceway)© | 0,06 mm |
| Running accuracies (in relation to raceway)(D) | 0,06 mm |
| Taper type lubrication nipples, DIN 71412-A M8x1, spaced uniformly on circumference | 4 |
