XSA140544-N
INA Slewing Bearings

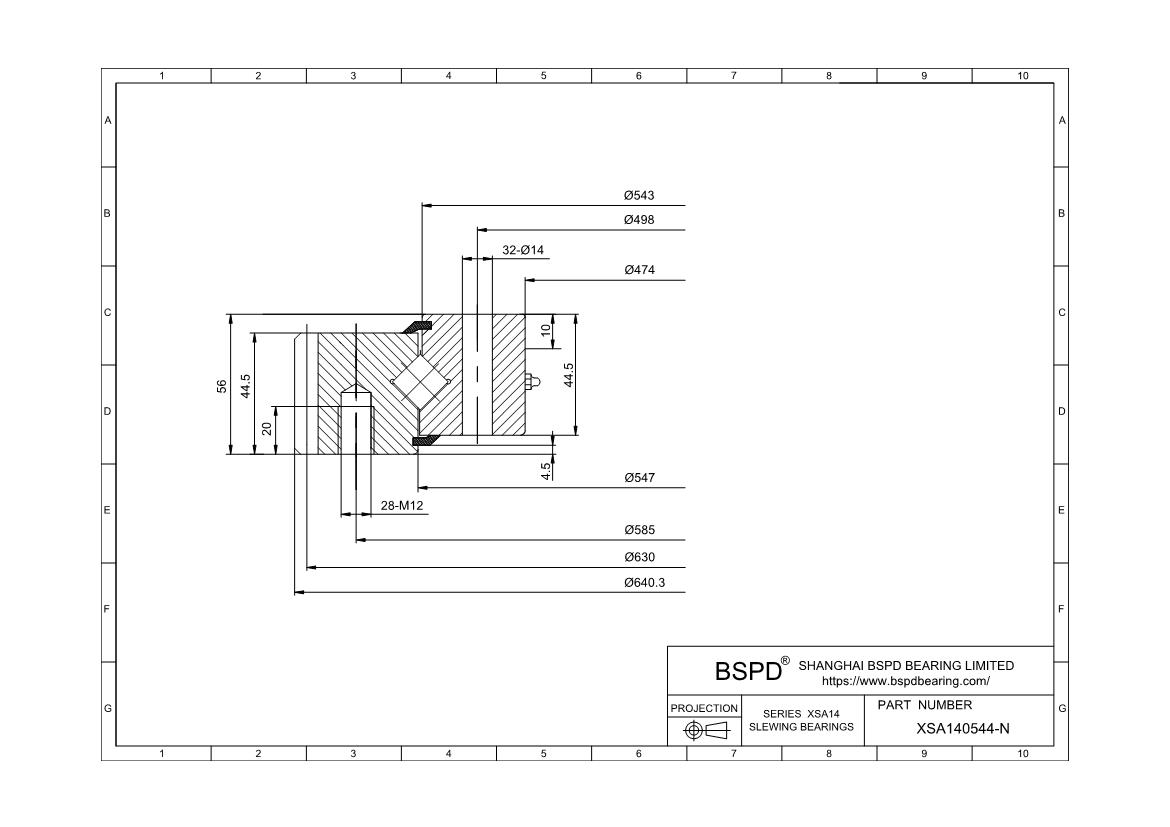

Dimensions: Bore (Inner) Diameter: 474 mm Centring lengths (see dimension drawing) Tolerance: +IT7； Outer Diameter: 640,3 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XSA140544-N |
| di | 474 mm Centring lengths (see dimension drawing) Tolerance: +IT7 |
| Da | 640,3 mm |
| Di | 547 mm Centring lengths (see dimension drawing) Tolerance: +IT7 |
| d0 | 630 mm |
| da | 543 mm Tolerance: 0/-0,5 |
| H | 56 mm |
| La | 585 mm |
| Li | 498 mm |
| Tooth modulus | 6 mm |
| Number of fixing holes in outer ring(na) | 28 |
| Number of fixing holes in inner ring(ni) | 32 |
| Number of teeth(z) | 105 |
| weight(w) | 44 kg |
| Maximum permissible radial load against friction lock(Frper) | 115600 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 21300 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 31500 N |
| Basic dynamic load rating, axial(Ca) | 234000 N |
| Basic static load rating, axial(C0a) | 690000 N |
| Basic dynamic load rating, radial(Cr) | 166000 N |
| Basic static load rating, radial(C0r) | 340000 N |
| Bearing clearance: preload(VSPmin) | 0,01 |
| Bearing clearance: preload(VSPmax) | 0,03 |
| Running accuracies (in relation to raceway)(A) | 0,04 mm |
| Running accuracies (in relation to raceway)(B) | 0,04 mm |
| Running accuracies (in relation to raceway)© | 0,07 mm |
| Running accuracies (in relation to raceway)(D) | 0,06 mm |
| Taper type lubrication nipples, DIN 71412-A M8x1, spaced uniformly on circumference | 4 |
