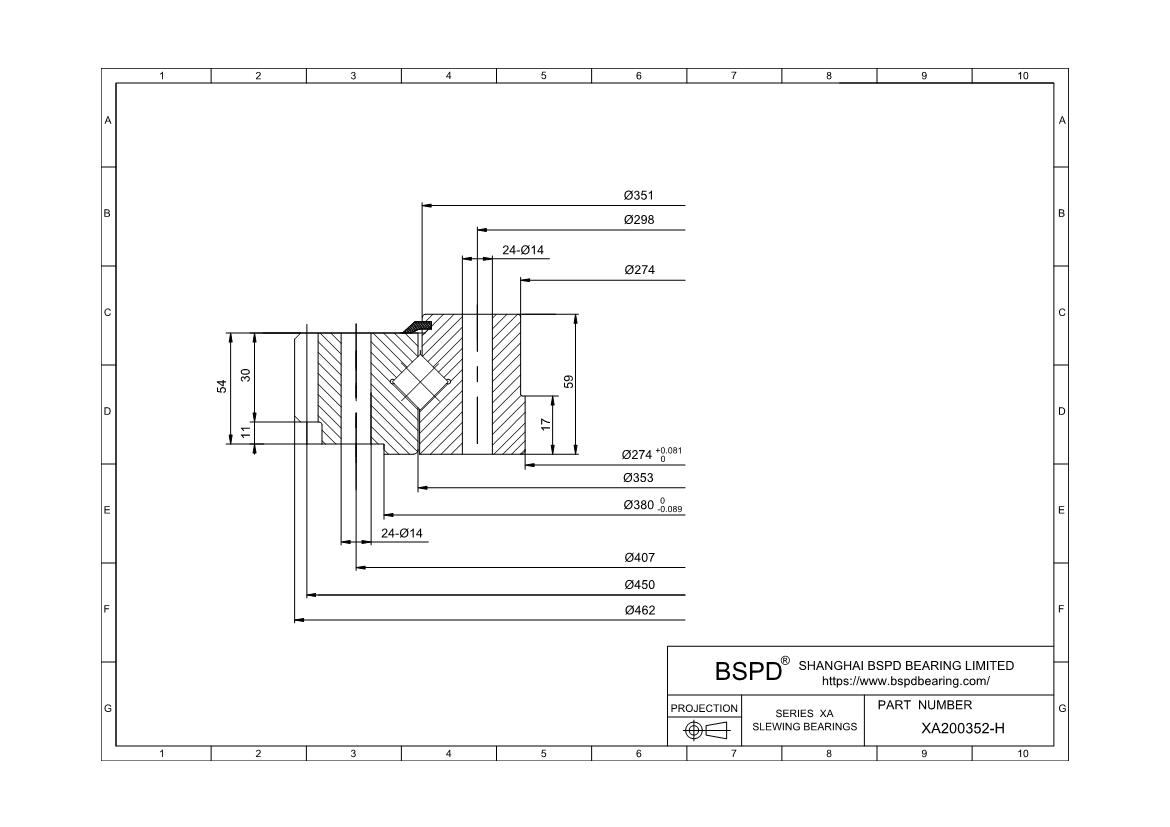

XA200352-H
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 274 mm； Outer Diameter: 462 mm； Width (Thickness): 59 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XA200352-H |
| di | 274 mm |
| Da | 462 mm |
| b | 30 mm |
| Di | 353 mm |
| DiZT | |
| d0 | 450 mm |
| da | 351 mm |
| dB | 14 mm |
| diZT | |
| H | 59 mm |
| h | 54 mm |
| La | 407 mm |
| Li | 298 mm |
| Tooth modulus(m) | 6 mm |
| Number of fixing holes in outer ring(na) | 24 |
| Number of fixing holes in inner ring(ni) | 24 |
| T | |
| t | |
| Number of teeth(z) | 75 |
| weight(w) | 34.5 kg |
| Maximum permissible radial load against friction lock(Frper) | 99100 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 20900 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 34500 N |
| Basic dynamic load rating, axial(Ca) | 315000 N |
| Basic static load rating, axial(C0a) | 780000 N |
| Basic dynamic load rating, radial(Cr) | 225000 N |
| Basic static load rating, radial(C0r) | 380000 N |
| Bearing clearance: preload(VSPmax) | 0,02 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference | |
| Lip seals on both spides | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XA200352-H ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
