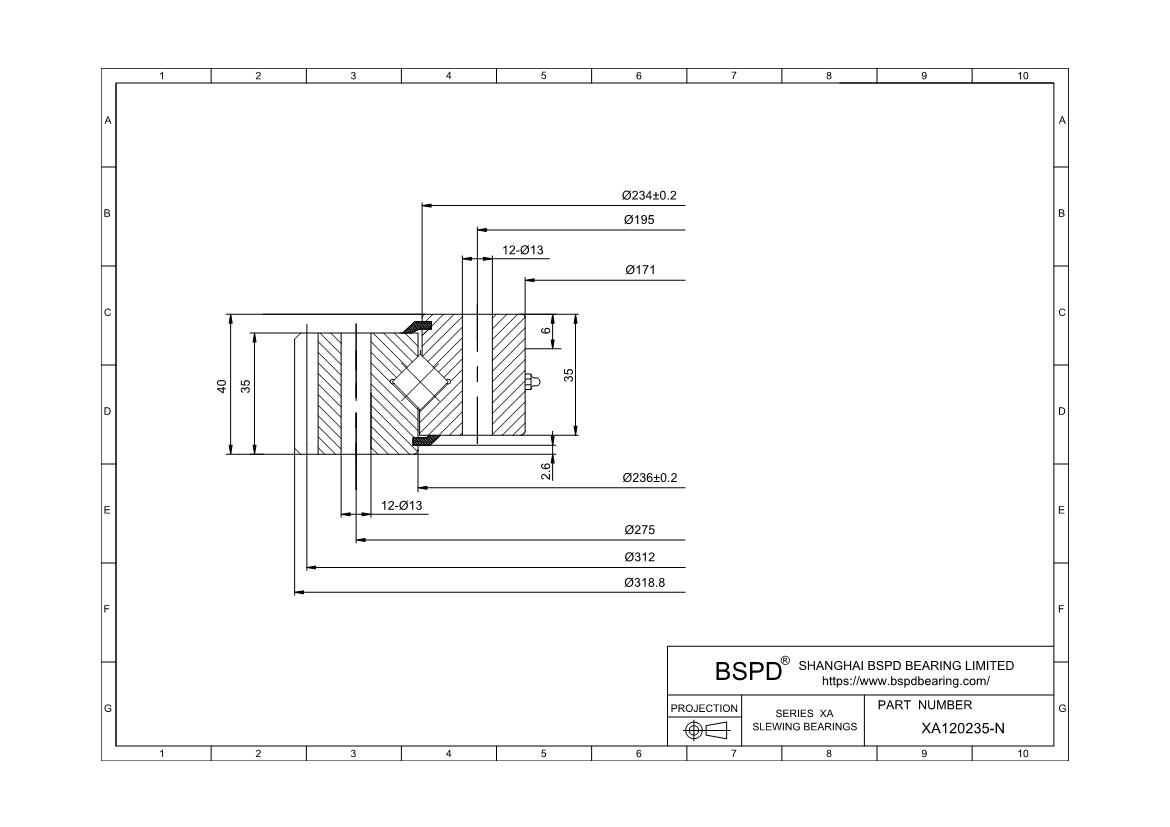

XA120235-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 171 mm； Outer Diameter: 318,8 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XA120235-N |
| di | 171 mm |
| Da | 318,8 mm |
| b | 35 mm |
| Di | 236 mm Tolerance: +/-0,2 |
| DiZT | 238 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| d0 | 312 mm |
| da | 234 mm Tolerance: +/-0,2 |
| dB | 13 mm |
| diZT | 173 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 40 mm |
| h | 35 mm |
| La | 275 mm |
| Li | 195 mm |
| Tooth modulus(m) | 4 mm |
| Number of fixing holes in outer ring(na) | 12 |
| Number of fixing holes in inner ring(ni) | 12 |
| T | 2,6 mm |
| t | 6 mm |
| Number of teeth(z) | 78 |
| weight(w) | 13.3 kg |
| Maximum permissible radial load against friction lock(Frper) | 49600 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 11000 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 16100 N |
| Basic dynamic load rating, axial(Ca) | 131000 N |
| Basic static load rating, axial(C0a) | 285000 N |
| Basic dynamic load rating, radial(Cr) | 93000 N |
| Basic static load rating, radial(C0r) | 139000 N |
| Bearing clearance: preload(VSPmax) | 0,02 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference | 2 |
| Lip seals on both spides | |
