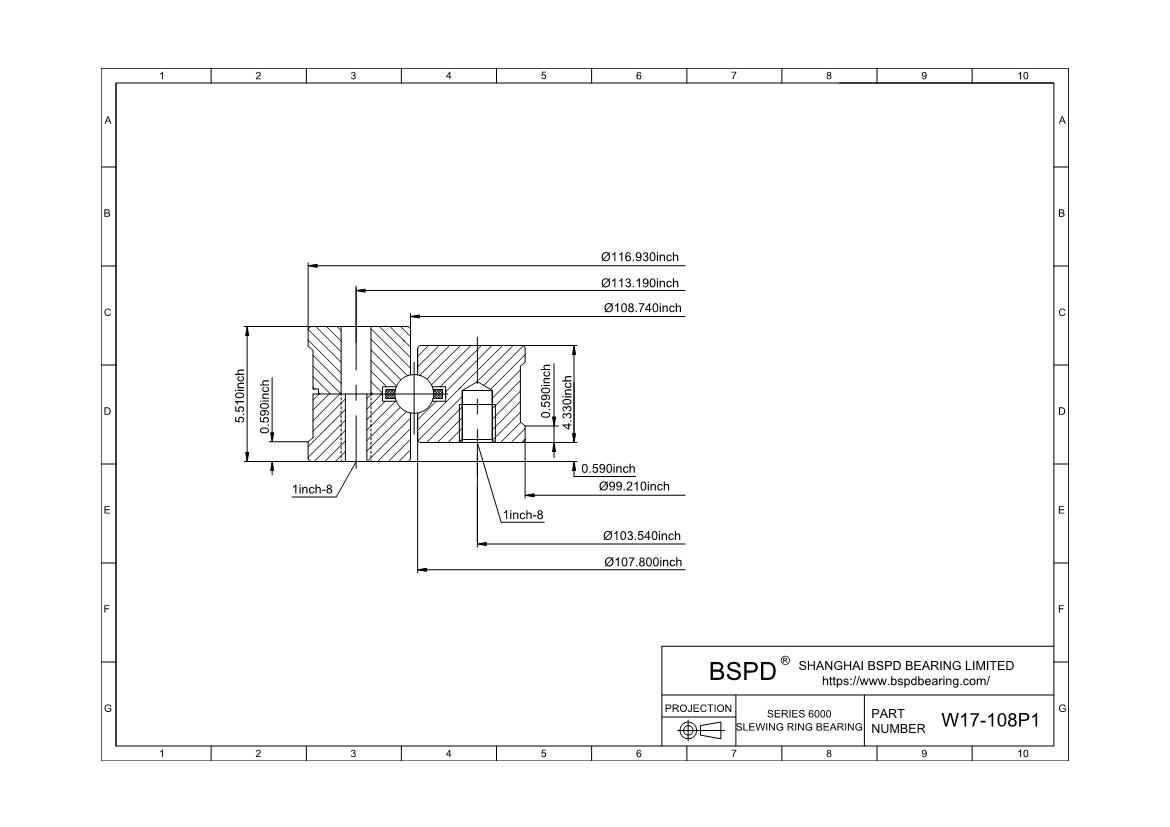

W17-108P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 99.21"； Outer Diameter: 116.93"； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | W17-108P1 |
| Static Radial Capacity(lbs) | 244240 |
| Weight(lbs) | 3740 |
| Outline Dimensions(inches) | |
| OD | 116.930 |
| ID | 99.210 |
| OI | 108.74 |
| IO | 107.8 |
| OH | 5.51 |
| IH | 4.33 |
| K | .59 |
| PH | .59 |
| Mounting Holes | |
| OBC | 113.190 |
| OU | 1-8 |
| No of OBC Holes | 30 |
| IBC | 103.54 |
| IU | 1-8 |
| No of IBC Holes | 30 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings W17-108P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
