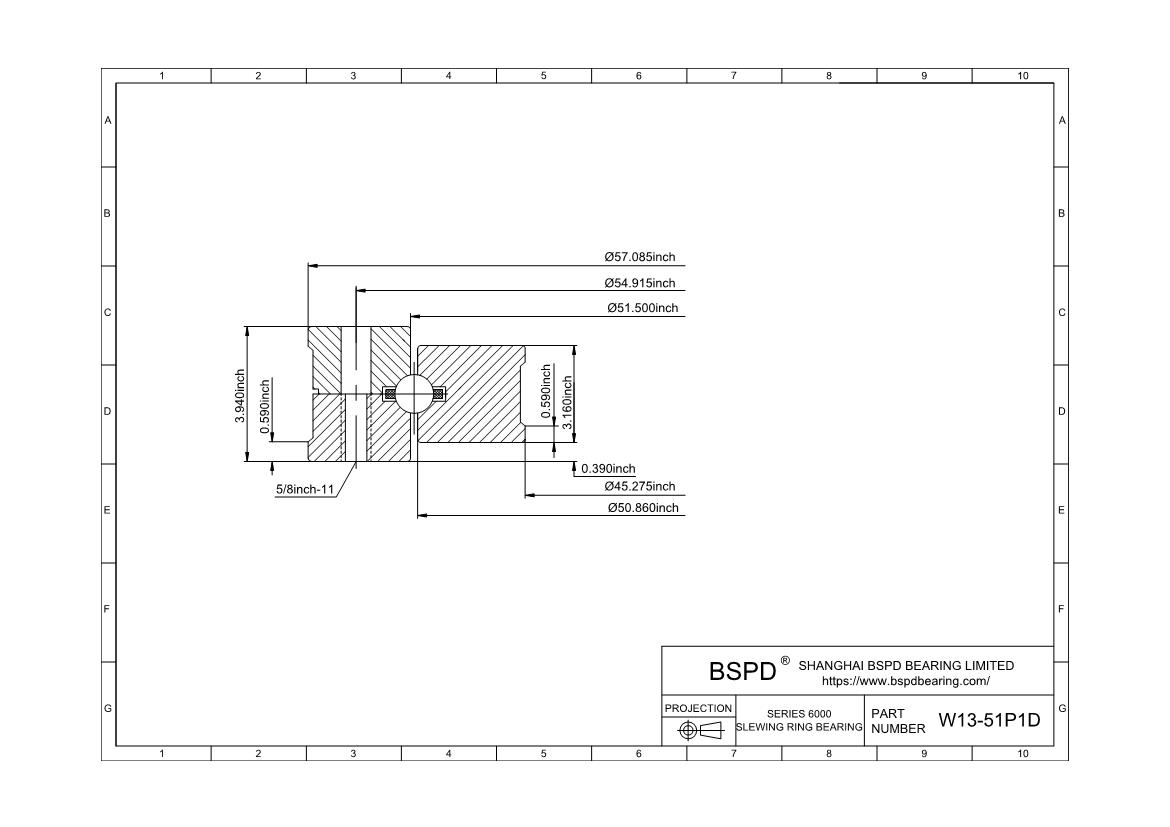

W13-51P1D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 45.275"； Outer Diameter: 57.085"； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | W13-51P1D |
| Static Radial Capacity(lbs) | 104450 |
| Weight(lbs) | 860 |
| Outline Dimensions(inches) | |
| OD | 57.085 |
| ID | 45.275 |
| OI | 51.50 |
| IO | 50.86 |
| OH | 3.94 |
| IH | 3.16 |
| K | .39 |
| PH | .59 |
| Mounting Holes | |
| OBC | 54.915 |
| OU | 5/8-11 |
| No of OBC Holes | 24 |
| IBC | - |
| IU | - |
| No of IBC Holes | - |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings W13-51P1D ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
