VU200260 INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 191 mm； Outer Diameter: 329 mm； Width (Thickness): 46 mm;

VU200260
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number VU200260
di 191 mm
Da 329 mm

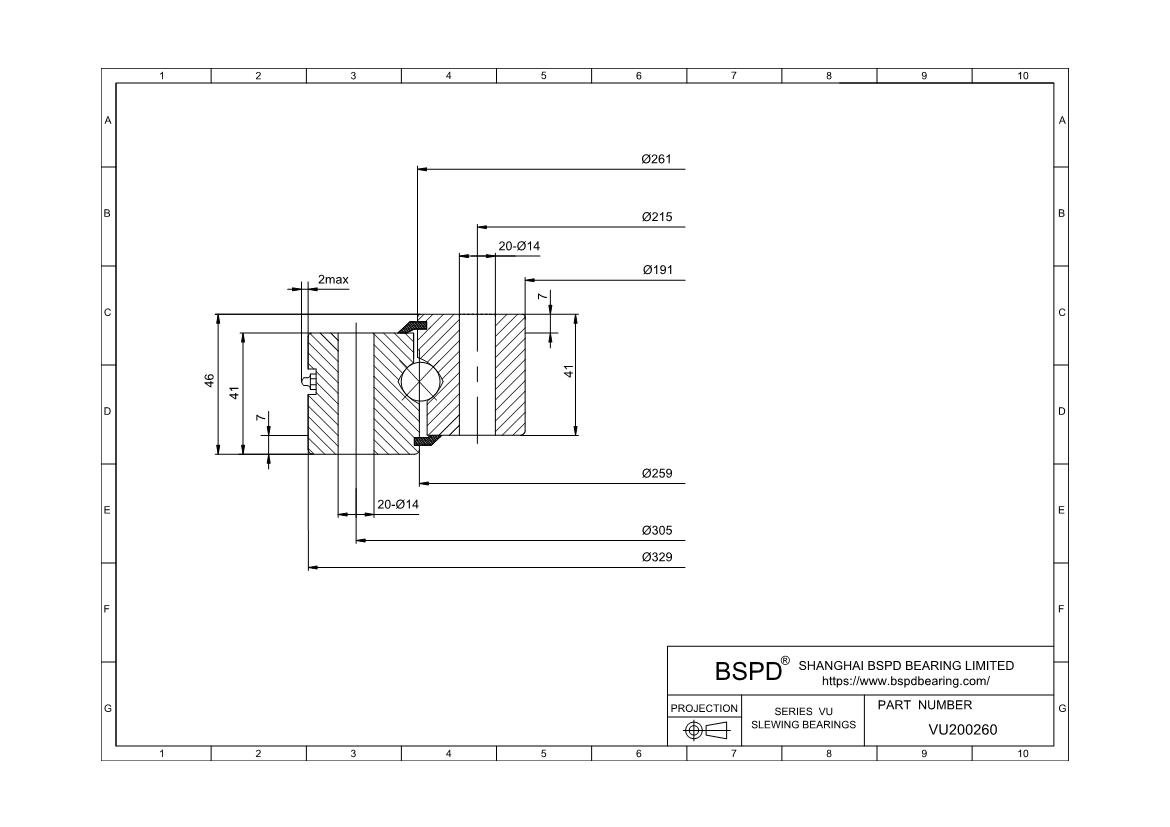

DaZT 327 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8
Di 259 mm
da 261 mm
dB 14 mm
diZT 193 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
H 46 mm
h 41 mm
La 305 mm
Li 215 mm
na 20
ni 20
T 7 mm
t 7 mm
umax 2 mm
weight(w) 15 kg
Maximum permissible radial load against friction lock(Frper) 82600 N
Basic dynamic load rating, axial(Ca) 181000 N
Basic static load rating, axial(C0a) 650000 N
Basic dynamic load rating, radial(Cr) 165000 N
Basic static load rating, radial(C0r) 295000 N
Min. radial bearing clearance 0,05
Maximum radial bearing clearance 0,2
Min. axial tilting clearance 0,08
Maximum axial tilting clearance 0,33
Taper type lubrication nipples, DIN 71412, spaced uniformly on circumference and partially recessed 2
Lip seals on both spides
VU200260
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
