VU140179 INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 124,5 mm； Outer Diameter: 234 mm； Width (Thickness): 30 mm;

VU140179
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number VU140179
di 124,5 mm
Da 234 mm

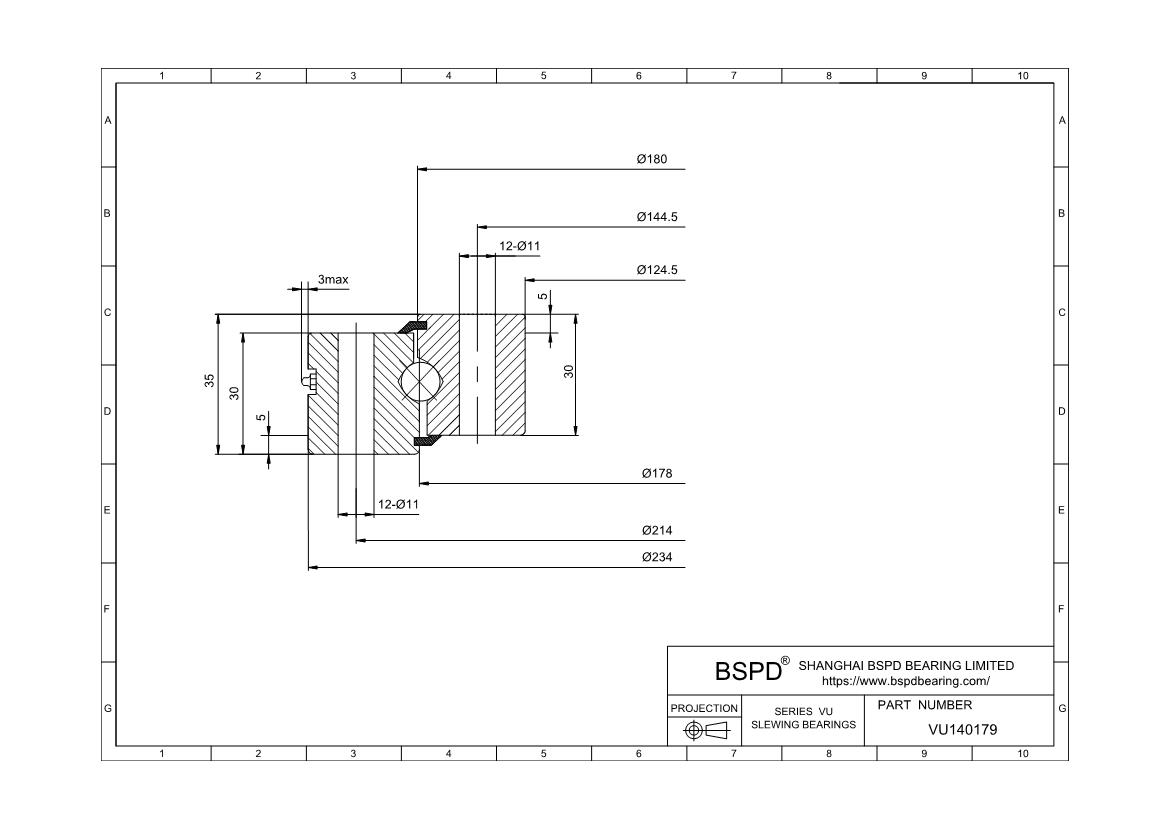

DaZT 232 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8
Di 178 mm
da 180 mm
dB 11 mm
diZT 126,5 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
H 126,5 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
h 30 mm
La 214 mm
Li 144,5 mm
na 12
ni 12
T 5 mm
t 5 mm
umax 3 mm
weight(w) 7 kg
Maximum permissible radial load against friction lock(Frper) 33600 N
Basic dynamic load rating, axial(Ca) 92000 N
Basic static load rating, axial(C0a) 92000 N
Basic dynamic load rating, radial(Cr) 83000 N
Basic static load rating, radial(C0r) 169000 N
Min. radial bearing clearance 0,04
Maximum radial bearing clearance 0,14
Min. axial tilting clearance 0,07
Maximum axial tilting clearance 0,23
Taper type lubrication nipples, DIN 71412, spaced uniformly on circumference and partially recessed 2
Lip seals on both spides
VU140179
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
