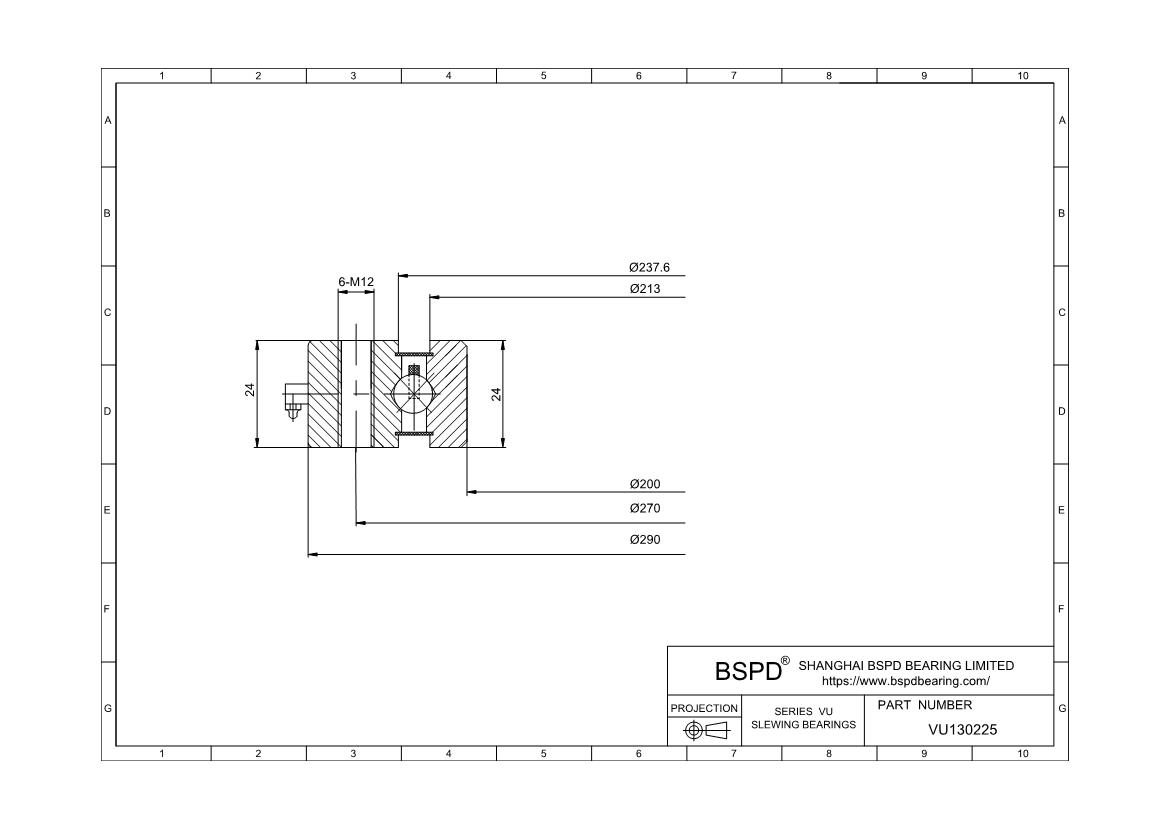

VU130225
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 200 mm； Outer Diameter: 290 mm； Width (Thickness): 24 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VU130225 |
| di | 200 mm |
| Da | 290 mm |
| DaZT | |
| Di | 237,6 mm |
| da | 213 mm |
| dB | |
| diZT | |
| H | 24 mm |
| h | 24 mm |
| La | 270 mm |
| Li | |
| na | 6 |
| ni | |
| T | |
| t | |
| umax | |
| weight(w) | 5,4 kg |
| Maximum permissible radial load against friction lock(Frper) | 19800 N |
| Basic dynamic load rating, axial(Ca) | 48000 N |
| Basic static load rating, axial(C0a) | 203000 N |
| Basic dynamic load rating, radial(Cr) | 43500 N |
| Basic static load rating, radial(C0r) | 93000 N |
| Min. radial bearing clearance | 0,02 |
| Maximum radial bearing clearance | 0,06 |
| Min. axial tilting clearance | 0,05 |
| Maximum axial tilting clearance | 0,16 |
| Taper type lubrication nipples, DIN 71412, spaced uniformly on circumference and partially recessed | 3 |
| Lip seals on both spides | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VU130225 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
