VSU200944
INA Slewing Bearings

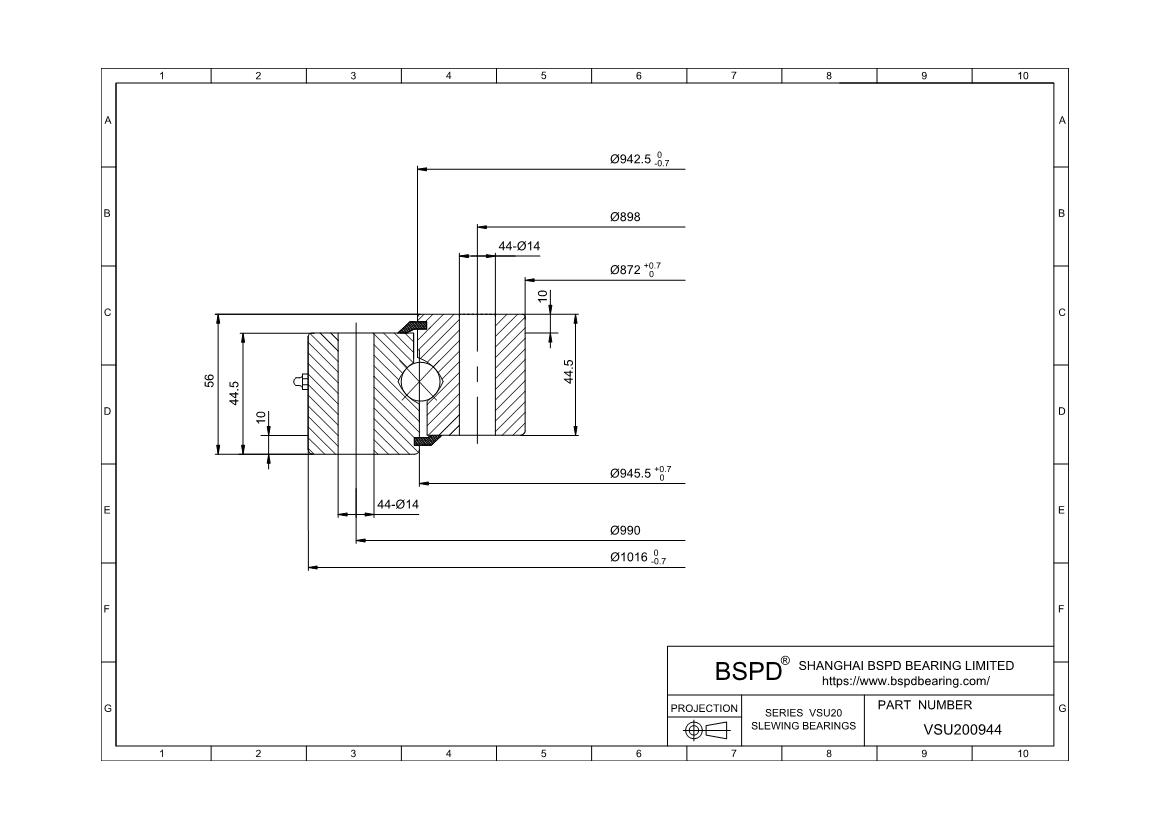

Dimensions: Bore (Inner) Diameter: 872 mm Tolerance: +0,7/0； Outer Diameter: 1016 mm Tolerance: 0/-0,7； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSU200944 |
| di | 872 mm Tolerance: +0,7/0 |
| Da | 1016 mm Tolerance: 0/-0,7 |
| DaZT | 1014 mm Tolerance: -IT8 |
| Di | 945,5 mm Tolerance: +0,7/0 |
| da | 942,5 mm Tolerance: 0/-0,7 |
| diZT | 874 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 990 mm |
| Li | 898 mm |
| na | 44 |
| ni | 44 |
| weight(w) | 67 kg |
| Maximum permissible radial load against friction lock(Frper) | 181700 N |
| Basic dynamic load rating, axial(Ca) | 189000 N |
| Basic static load rating, axial(C0a) | 1520000 N |
| Basic dynamic load rating, radial(Cr) | 171000 N |
| Basic static load rating, radial(C0r) | 690000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
