VSU200414
INA Slewing Bearings

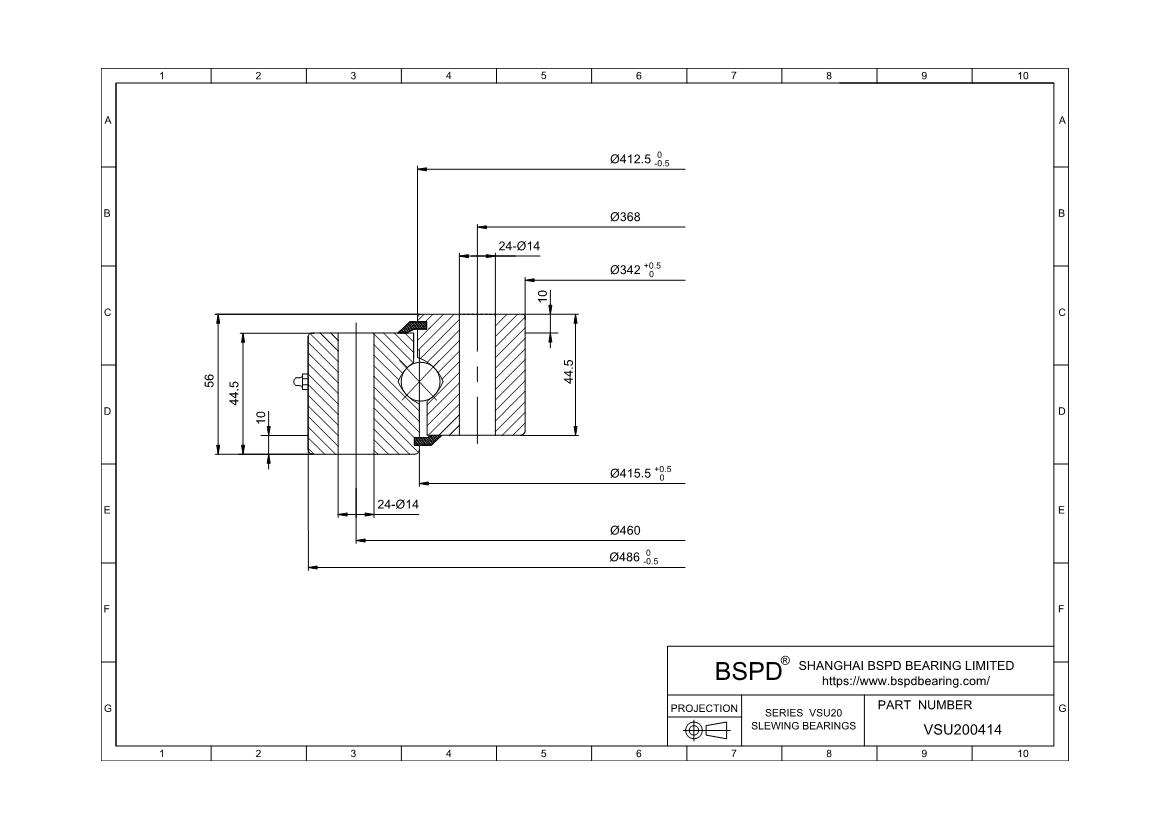

Dimensions: Bore (Inner) Diameter: 342 mm Tolerance: +0,5/0； Outer Diameter: 486 mm Tolerance: 0/-0,5； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSU200414 |
| di | 342 mm Tolerance: +0,5/0 |
| Da | 486 mm Tolerance: 0/-0,5 |
| DaZT | 484 mm Tolerance: -IT8 |
| Di | 415,5 mm Tolerance: +0,5/0 |
| da | 412,5 mm Tolerance: 0/-0,5 |
| diZT | 344 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 460 mm |
| Li | 368 mm |
| na | 24 |
| ni | 24 |
| weight(w) | 29 kg |
| Maximum permissible radial load against friction lock(Frper) | 99100 N |
| Basic dynamic load rating, axial(Ca) | 139000 N |
| Basic static load rating, axial(C0a) | 660000 N |
| Basic dynamic load rating, radial(Cr) | 126000 N |
| Basic static load rating, radial(C0r) | 300000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VSU200414 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
