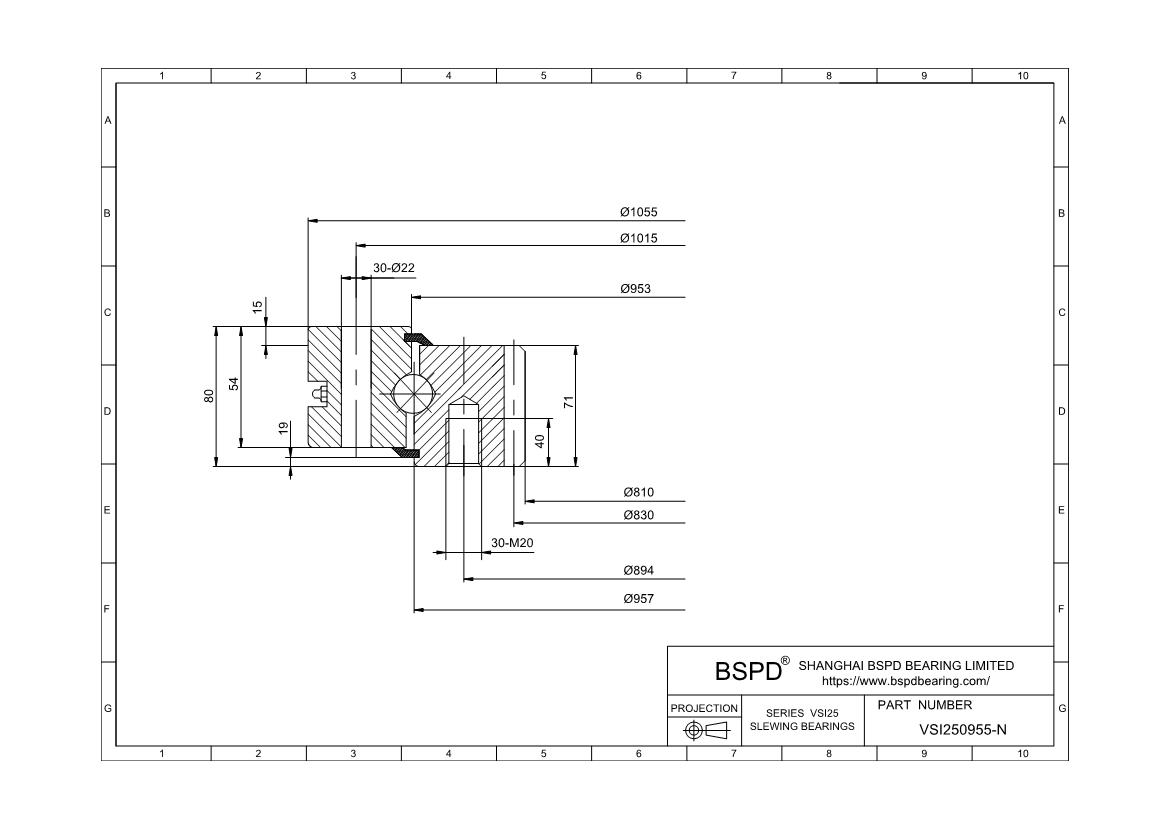

VSI250955-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 810 mm； Outer Diameter: 1055 mm； Width (Thickness): 80 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSI250955-N |
| di | 810 mm |
| Da | 1055 mm |
| DaZT | 1053 mm Tolerance: -IT8 |
| Di | 953 mm |
| d0 | 830 mm |
| da | 957 mm |
| daZT | 955 mm Tolerance: -IT8 |
| H | 80 mm |
| La | 1015 mm |
| Li | 894 mm |
| Tooth modulus(m) | 10 mm |
| Number of fixing holes in outer ring(na) | 30 |
| Number of fixing holes in inner ring(ni) | 30 |
| Number of teeth(z) | 83 |
| weight(w) | 149 kg |
| Maximum permissible radial load against friction lock(Frper) | 363300 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 68000 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 98900 N |
| Basic dynamic load rating, axial(Ca) | 430000 N |
| Basic static load rating, axial(C0a) | 3400000 N |
| Basic dynamic load rating, radial(Cr) | 390000 N |
| Basic static load rating, radial(C0r) | 1550000 N |
| Min. radial bearing clearance | 0,03 |
| Maximum radial bearing clearance | 0,13 |
| Min. axial tilting clearance | 0,05 |
| Maximum axial tilting clearance | 0,24 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference and recessed | 4 |
