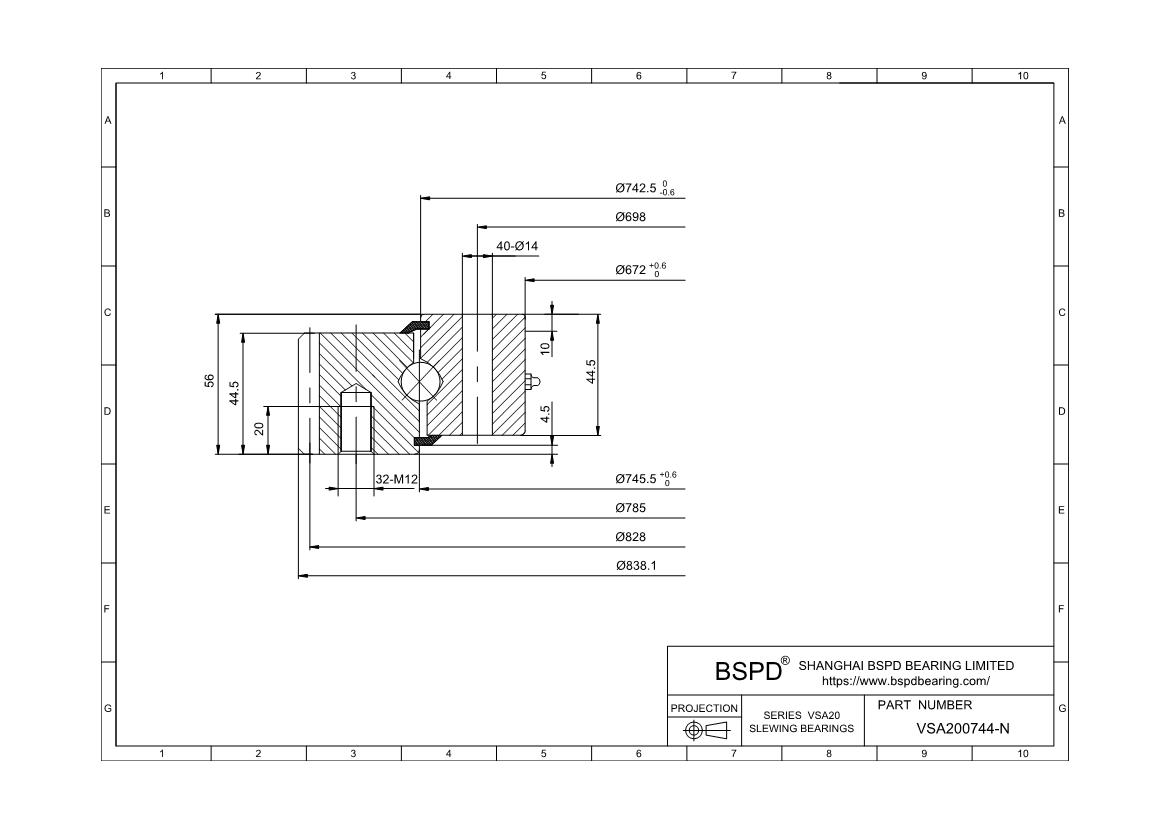

VSA200744-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 672 mm Tolerance: +0,6/0； Outer Diameter: 838,1 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSA200744-N |
| di | 672 mm Tolerance: +0,6/0 |
| Da | 838,1 mm |
| Di | 745,5 mm Tolerance: +0,6/0 |
| DiZT | 747 mm Tolerance: +IT8 |
| d0 | 828 mm |
| da | 742,5 mm Tolerance: 0/-0,6 |
| diZT | 674 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 785 mm |
| Li | 698 mm |
| Tooth modulus | 6 mm |
| Number of fixing holes in outer ring(na) | 36 |
| Number of fixing holes in inner ring(ni) | 40 |
| Number of teeth(z) | 138 |
| weight(w) | 59 kg |
| Maximum permissible radial load against friction lock(Frper) | 148700 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 21300 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 31500 N |
| Basic dynamic load rating, axial(Ca) | 173000 N |
| Basic static load rating, axial(C0a) | 1190000 N |
| Basic dynamic load rating, radial(Cr) | 157000 N |
| Basic static load rating, radial(C0r) | 550000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VSA200744-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
