VLU201094
INA Slewing Bearings

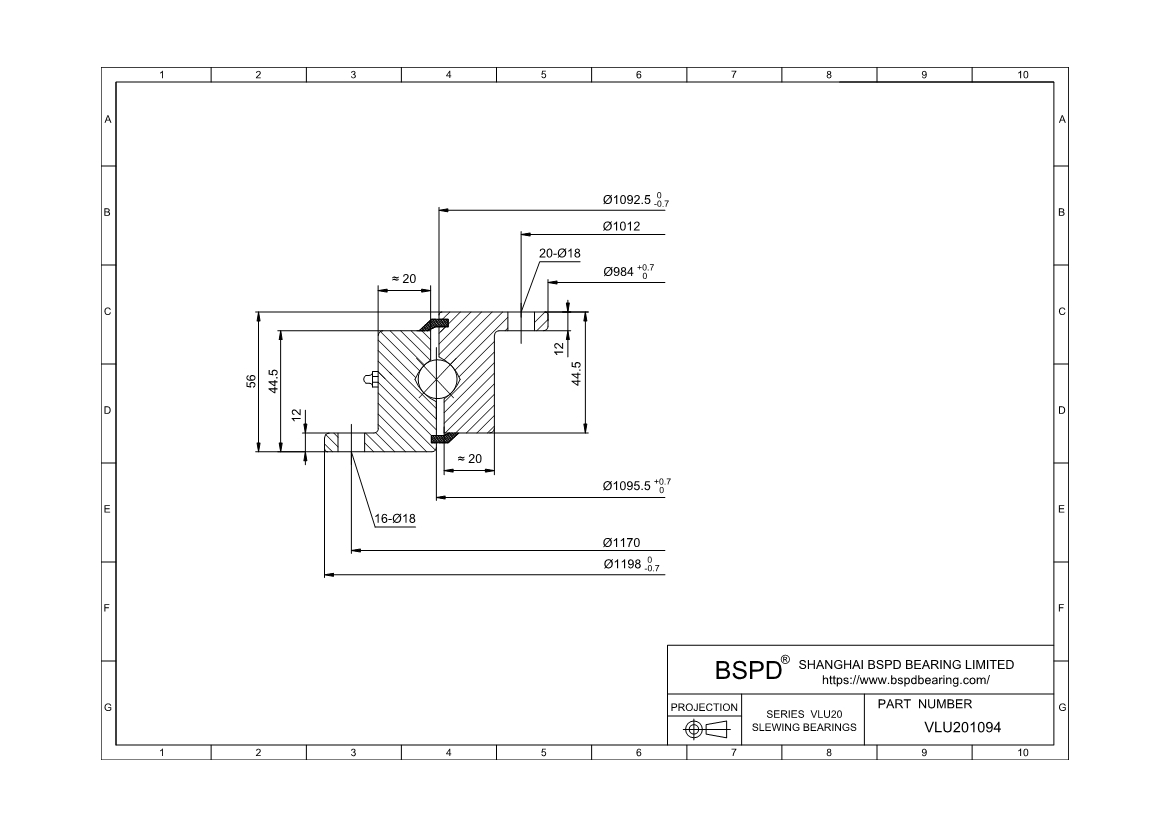

Dimensions: Bore (Inner) Diameter: 984 mm Tolerance: +0,7/0； Outer Diameter: 1198 mm Tolerance: 0/-0,7； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLU201094 |
| di | 984 mm Tolerance: +0,7/0 |
| Da | 1198 mm Tolerance: 0/-0,7 |
| DaZT | 1196 mm Tolerance: -IT8 |
| Di | 1095,5 mm Tolerance: +0,7/0 |
| da | 1092,5 mm Tolerance: 0/-0,7 |
| diZT | 986 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 1170 mm |
| Li | 1012 mm |
| na | 16 |
| ni | 20 |
| weight(w) | 62,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 124800 N |
| Basic dynamic load rating, axial(Ca) | 200000 N |
| Basic static load rating, axial(C0a) | 780000 N |
| Basic dynamic load rating, radial(Cr) | 181000 N |
| Basic static load rating, radial(C0r) | 290000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
