VLU200744
INA Slewing Bearings

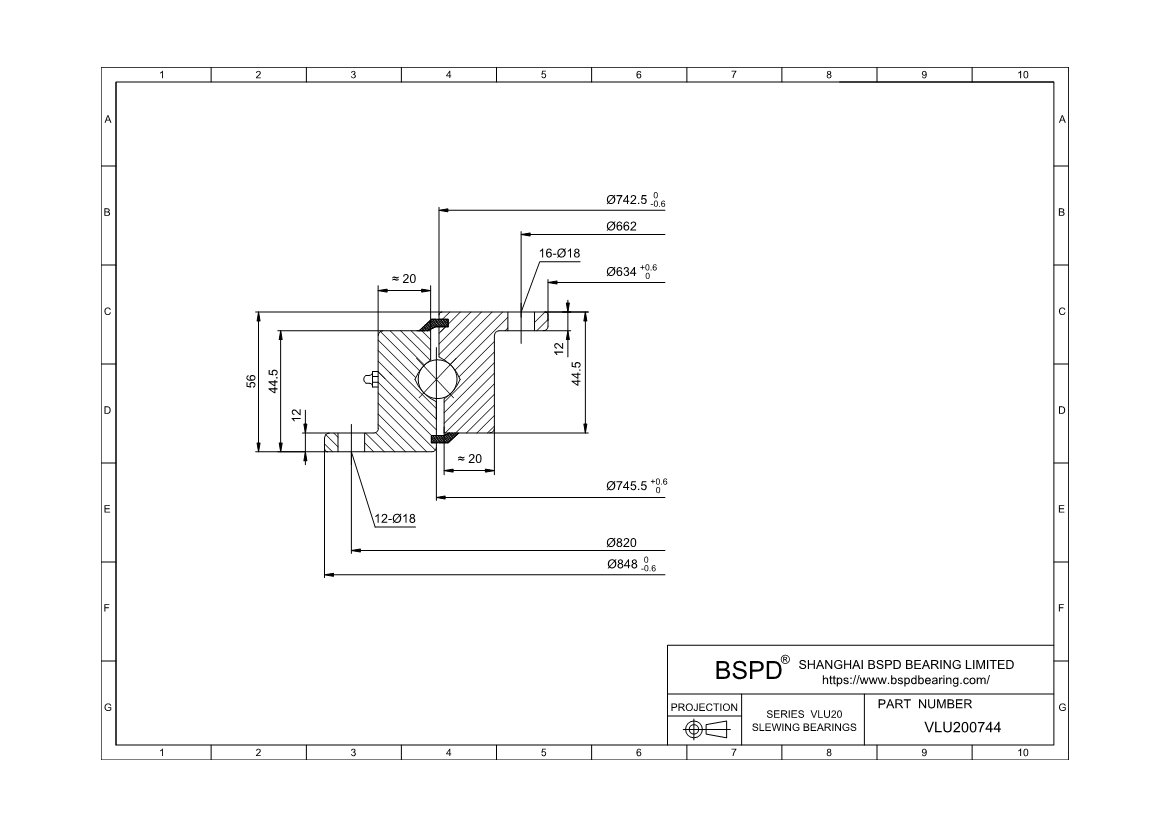

Dimensions: Bore (Inner) Diameter: 634 mm Tolerance: +0,6/0； Outer Diameter: 848 mm Tolerance: 0/-0,6； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLU200744 |
| di | 634 mm Tolerance: +0,6/0 |
| Da | 848 mm Tolerance: 0/-0,6 |
| DaZT | 846 mm Tolerance: -IT8 |
| Di | 745,5 mm Tolerance: +0,6/0 |
| da | 742,5 mm Tolerance: 0/-0,6 |
| diZT | 636 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 820 mm |
| Li | 662 mm |
| na | 12 |
| ni | 16 |
| weight(w) | 42,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 93600 N |
| Basic dynamic load rating, axial(Ca) | 173000 N |
| Basic static load rating, axial(C0a) | 530000 N |
| Basic dynamic load rating, radial(Cr) | 157000 N |
| Basic static load rating, radial(C0r) | 197000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
