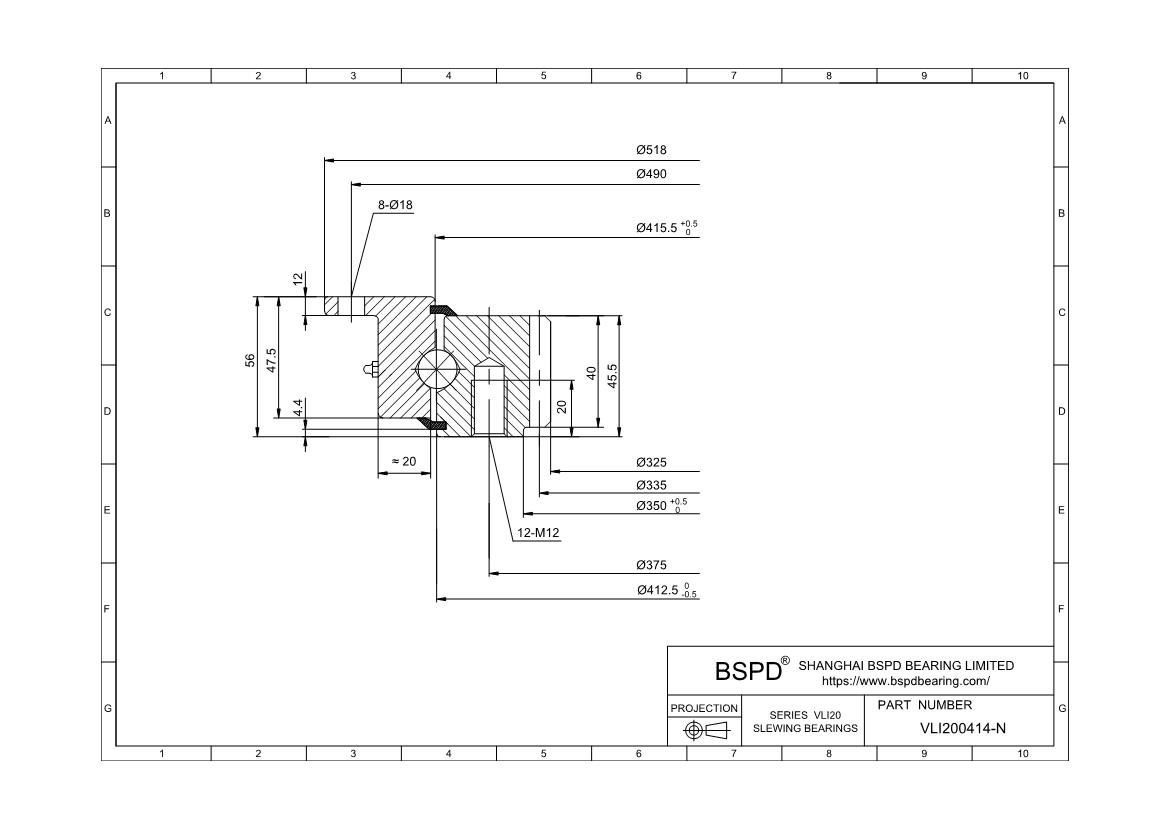

VLI200414-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 325 mm； Outer Diameter: 518 mm Tolerance: 0/-0,5； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLI200414-N |
| di | 325 mm |
| Da | 518 mm Tolerance: 0/-0,5 |
| DaZT | 516 mm Tolerance: -IT8 |
| Di | 415,5 mm Tolerance: +0,5/0 |
| d0 | 335 mm |
| da | 412,5 mm Tolerance: 0/-0,5 |
| daZT | 411 mm Tolerance: -IT8 |
| H | 56 mm |
| La | 490 mm |
| Li | 375 mm |
| Tooth modulus(m) | 5 mm |
| Number of fixing holes in outer ring(na) | 8 |
| Number of fixing holes in inner ring(ni) | 12 |
| Number of teeth(z) | 67 |
| weight(w) | 27,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 49600 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 17700 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 26200 N |
| Basic dynamic load rating, axial(Ca) | 139000 N |
| Basic static load rating, axial(C0a) | 295000 N |
| Basic dynamic load rating, radial(Cr) | 126000 N |
| Basic static load rating, radial(C0r) | 110000 N |
| Maximum radial bearing clearance | 0,5 |
| Maximum axial tilting clearance | 0,7 |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | Yes |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VLI200414-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
