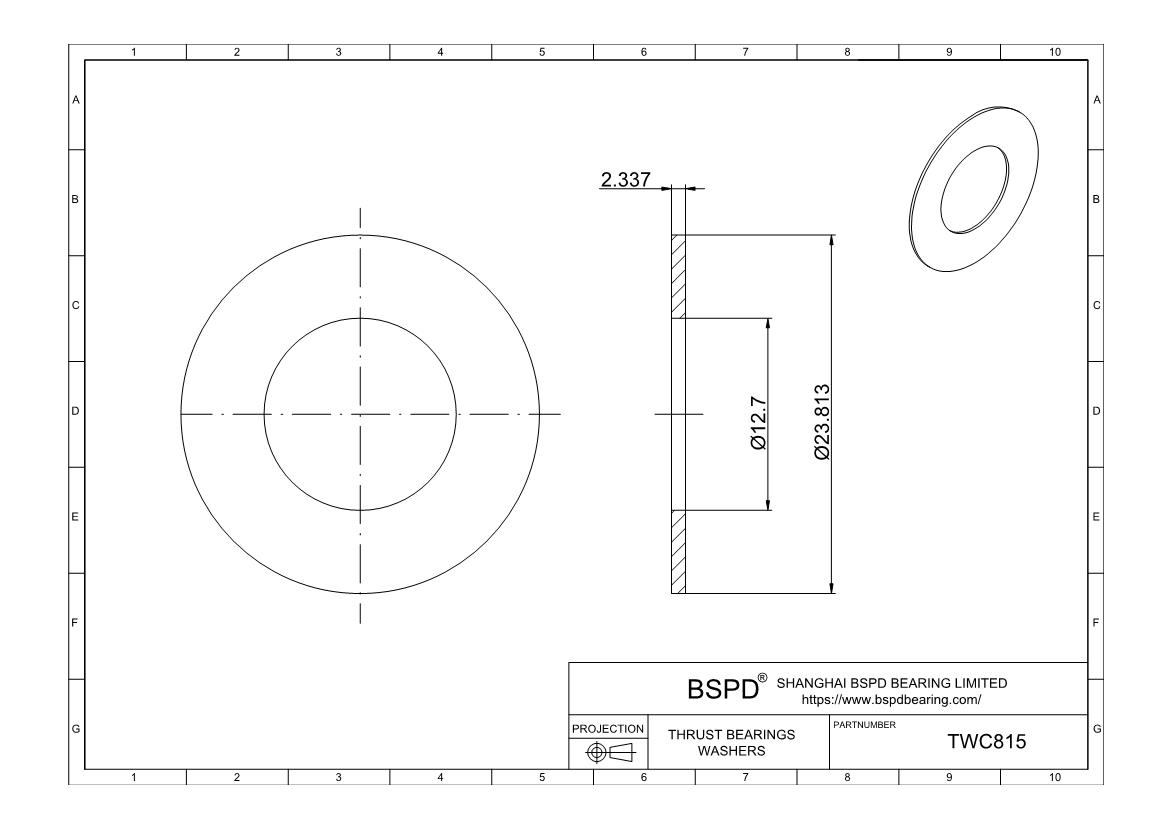

TWC815
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 1/2"； Outer Diameter: 0.938"； Width (Thickness): 0.092";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | TWC815 |
| ID | 1/2" | 12.7 mm |
| ID Tolerance | 0.032mm to 0.212mm |
| OD | 0.938" | 23.825 mm |
| OD Tolerance | -0.370mm to -0.04mm |
| Thickness | 0.092" | 2.337 mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TWC815 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
