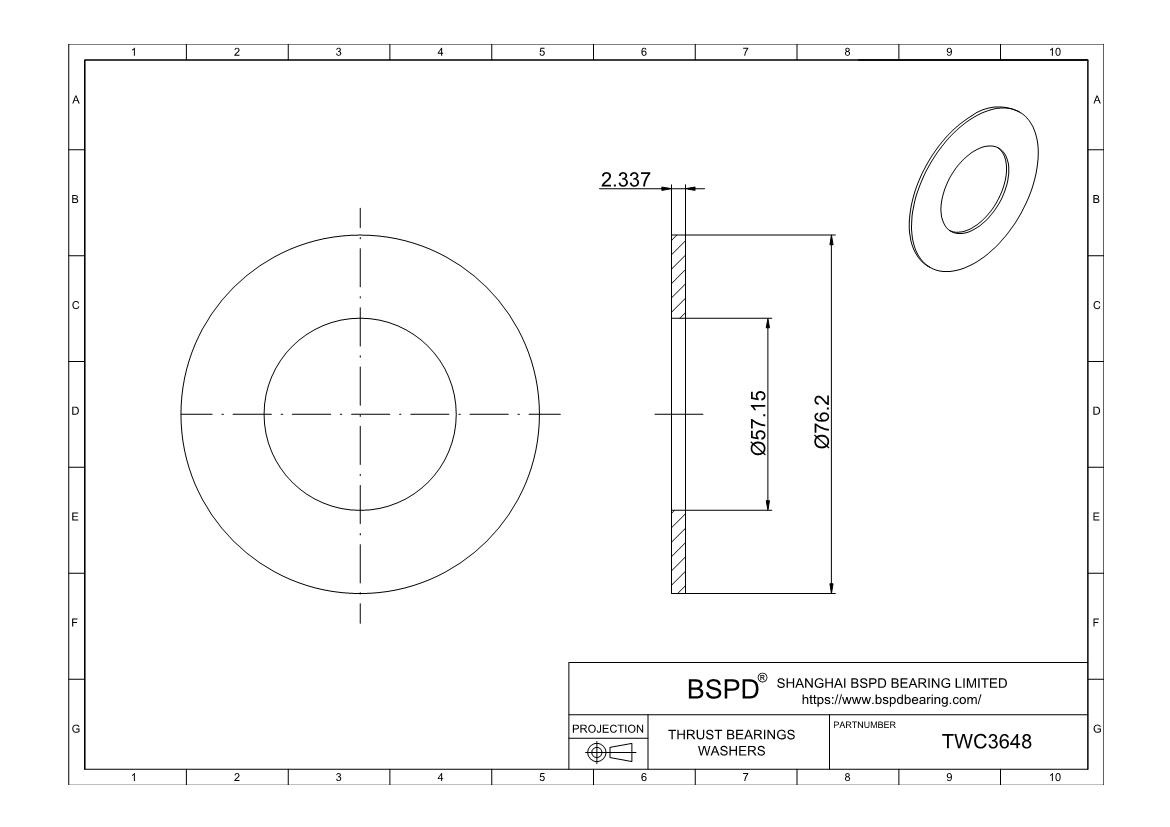

TWC3648
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 2 1/4"； Outer Diameter: 3"； Width (Thickness): 0.092";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | TWC3648 |
| ID | 2 1/4" | 57.15 mm |
| ID Tolerance | 0.06mm to 0.360mm |
| OD | 3" | 76.2 mm |
| OD Tolerance | -0.520mm to -0.06mm |
| Thickness | 0.092" | 2.337 mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 37 |
Print PDF
Request a 3D CAD Model
