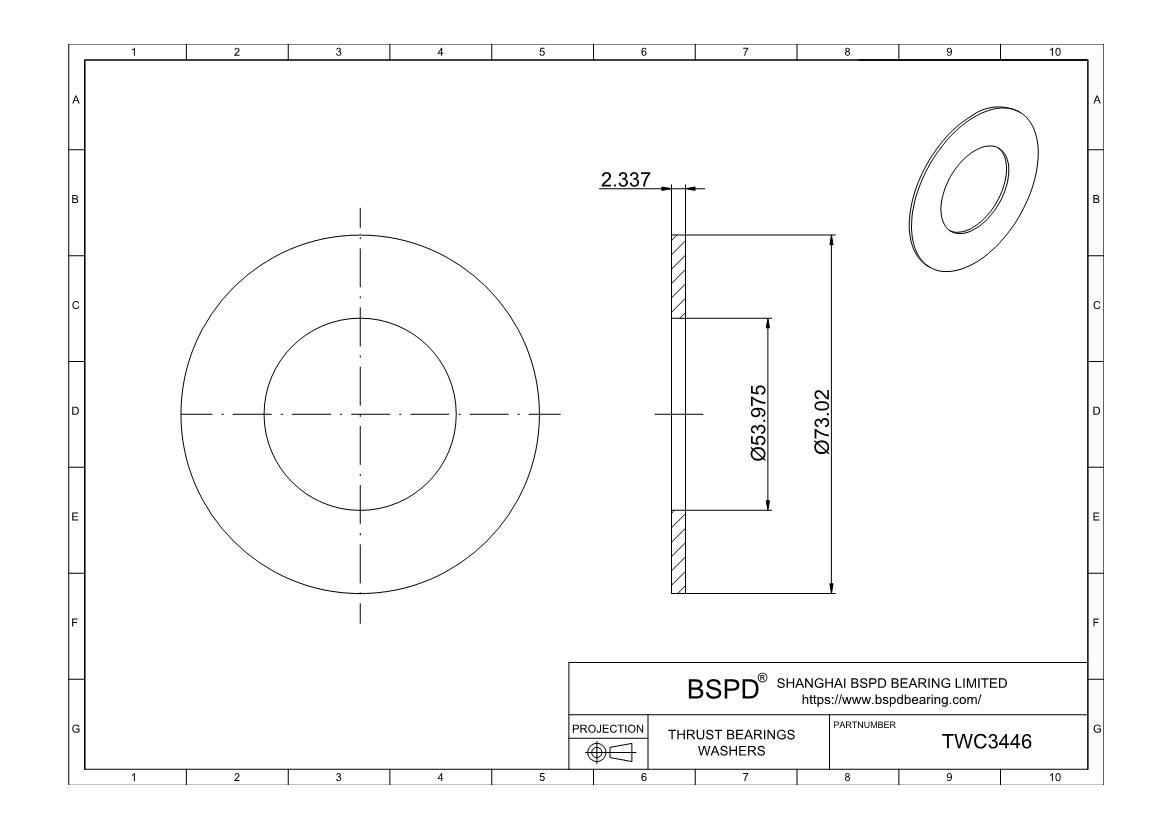

TWC3446
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 2 1/8"； Outer Diameter: 2.875"； Width (Thickness): 0.092";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | TWC3446 |
| ID | 2 1/8" | 53.975 mm |
| ID Tolerance | 0.06mm to 0.360mm |
| OD | 2.875" | 73.025 mm |
| OD Tolerance | -0.520mm to -0.06mm |
| Thickness | 0.092" | 2.337 mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 35 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TWC3446 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
