TWC2840
Needle Roller Thrust Bearings

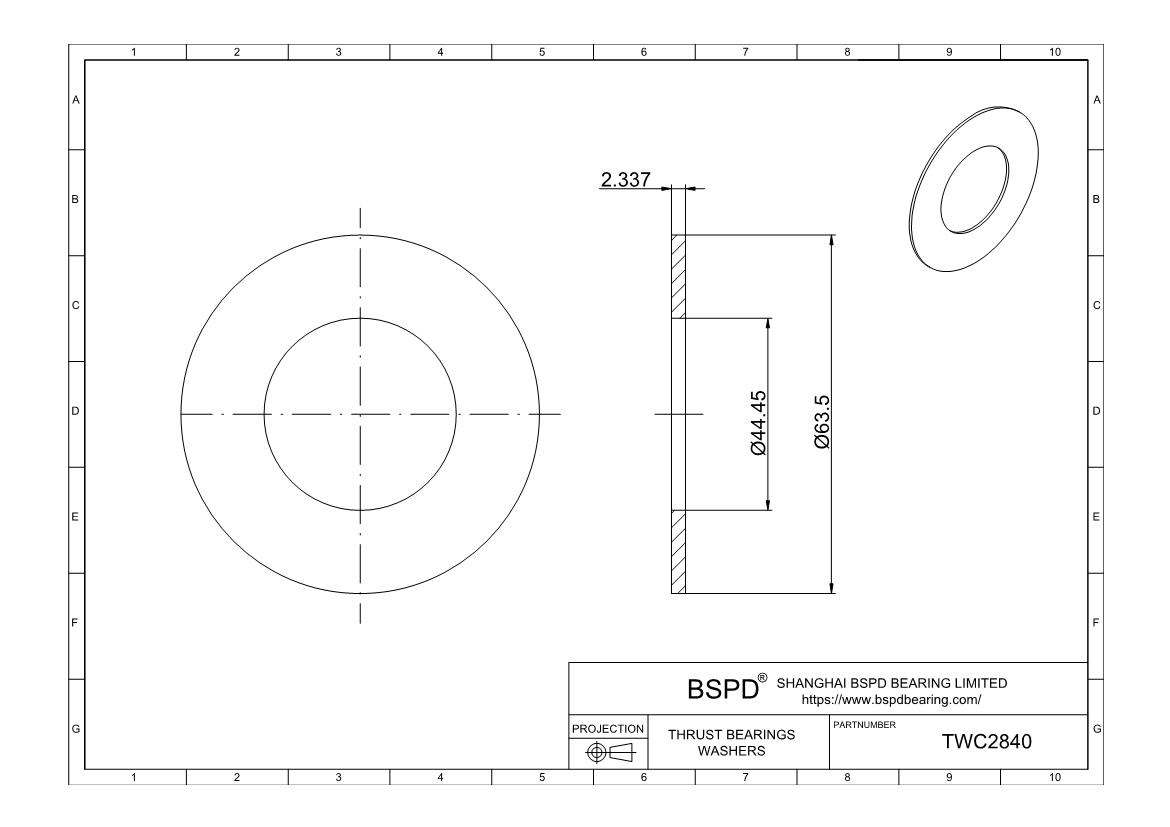

Dimensions: Bore (Inner) Diameter: 1 3/4"； Outer Diameter: 2.5"； Width (Thickness): 0.092";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | TWC2840 |
| ID | 1 3/4" | 44.45 mm |
| ID Tolerance | 0.05mm to 0.3mm |
| OD | 2.5" | 63.5 mm |
| OD Tolerance | -0.520mm to -0.06mm |
| Thickness | 0.092" | 2.337 mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 30 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TWC2840 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
