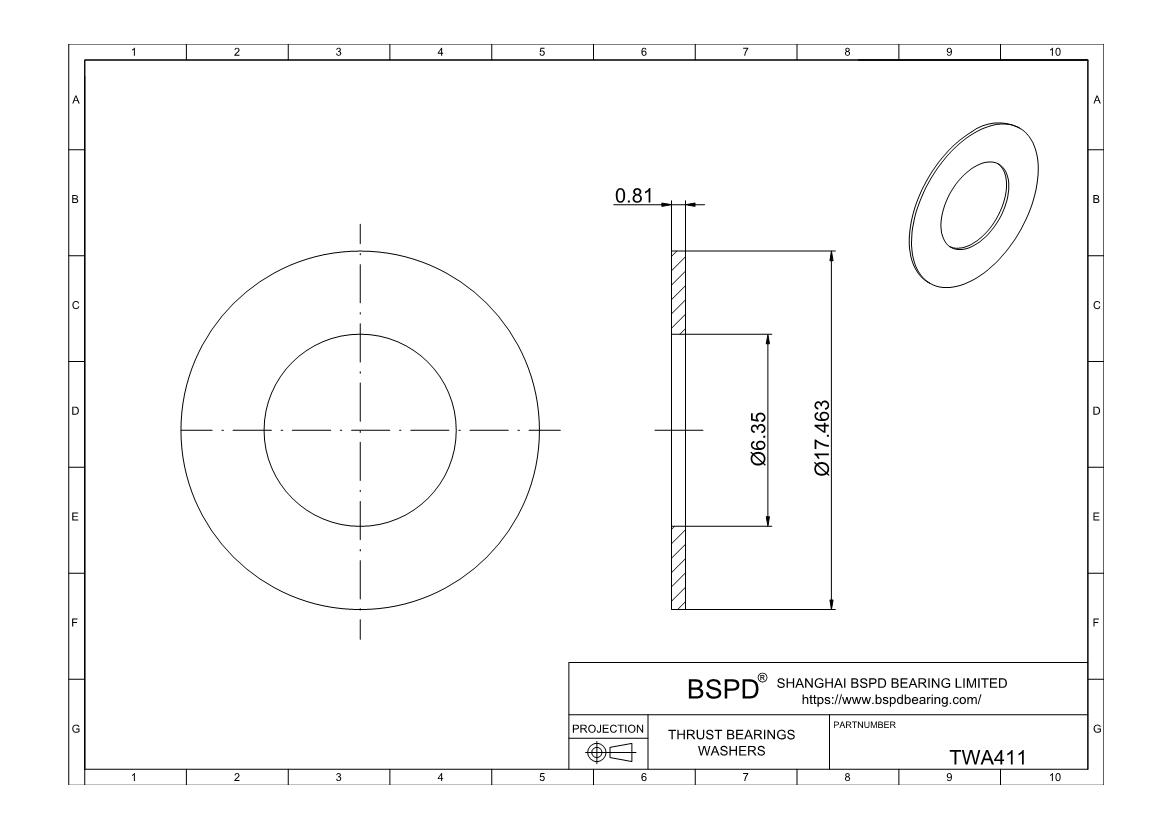

TWA411
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 1/4"； Outer Diameter: 0.688"； Width (Thickness): 0.032";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | TWA411 |
| ID | 1/4" | 6.35 mm |
| ID Tolerance | 0.025mm to 0.175mm |
| OD | 0.688" | 17.475 mm |
| OD Tolerance | -0.370mm to -0.04mm |
| Thickness | 0.032" | 0.813 mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 1 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TWA411 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
