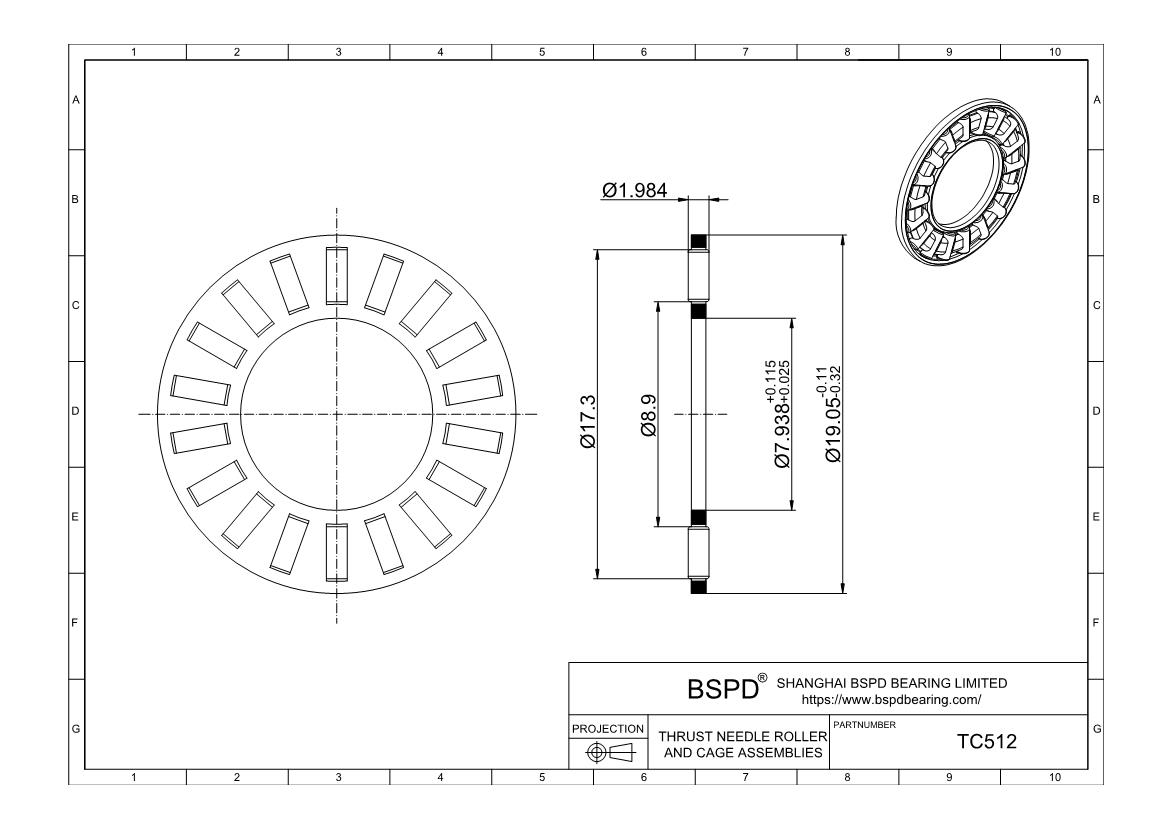

TC512
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 5/16"； Outer Diameter: 0.75"； Width (Thickness): 0.078";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Seal Type | Open |
| For Load Direction | Thrust |
| System of Measurement | Inch |
| Part Number | TC512 |
| ID | 5/16" | 7.938 mm |
| ID Tolerance | 0.025mm to 0.115mm |
| OD | 0.75" | 19.05 mm |
| OD Tolerance | -0.320mm to -0.110mm |
| Thickness | 0.078" | 1.981 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Basic dynamic load rating, axial (Ca) (Newtons) | 6900 |
| Basic static load rating, axial (C0a) (Newtons) | 16200 |
| Max Speed (RPM) | 18000 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 to 0.0005" |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TC512 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
