TC411
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 1/4"; Outer Diameter: 0.688"; Width (Thickness): 0.078";
![TC411](https://www.bspdbearing.com/wp-content/uploads/2021/05/AXK-150x150-1.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Needle |
Seal Type | Open |
For Load Direction | Thrust |
System of Measurement | Inch |
Part Number | TC411 |
ID | 1/4" | 6.35 mm |
ID Tolerance | 0.02mm to 0.095mm |
OD | 0.688" | 17.475 mm |
OD Tolerance | -0.320mm to -0.110mm |
Thickness | 0.078" | 1.981 mm |
Needle Material | Steel |
Cage Material | Steel |
Basic dynamic load rating, axial (Ca) (Newtons) | 6100 |
Basic static load rating, axial (C0a) (Newtons) | 13300 |
Max Speed (RPM) | 19200 |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 to 0.0005" |
RoHS | Compliant |

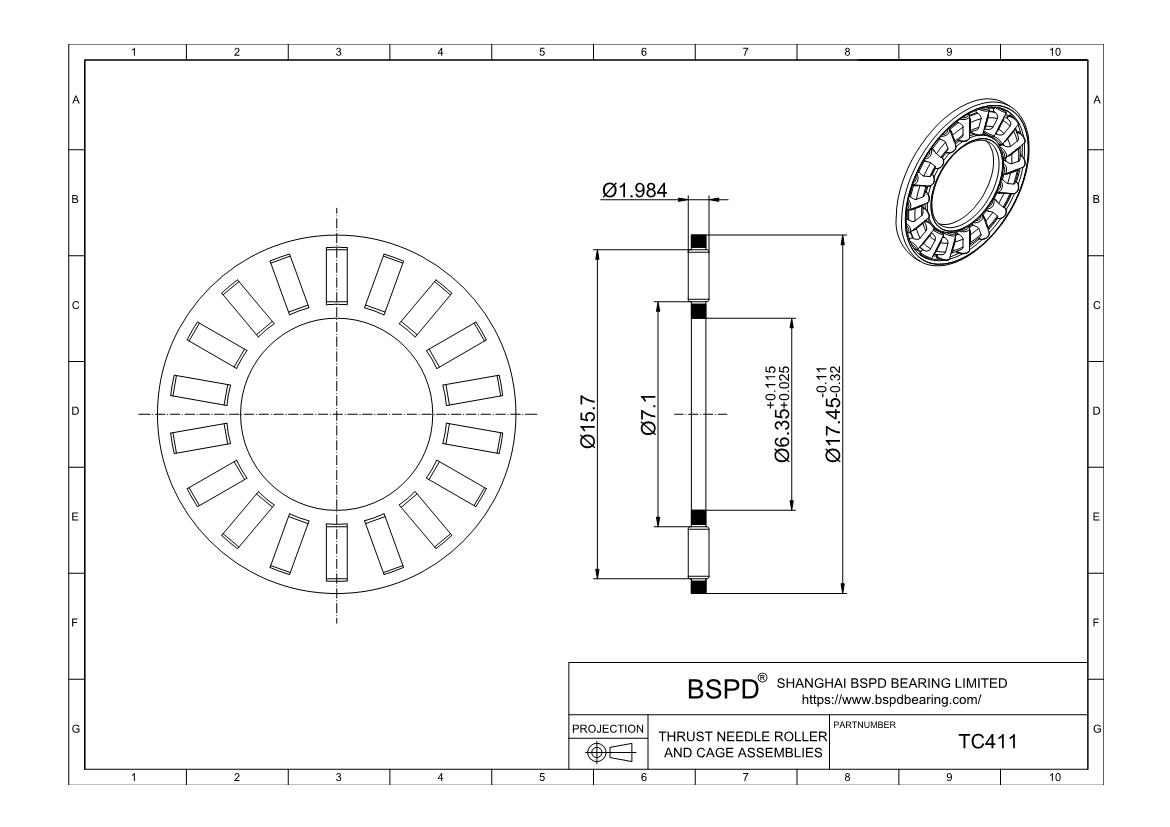

![TC411](/wp-content/uploads/pdf/TC411/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings TC411 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
