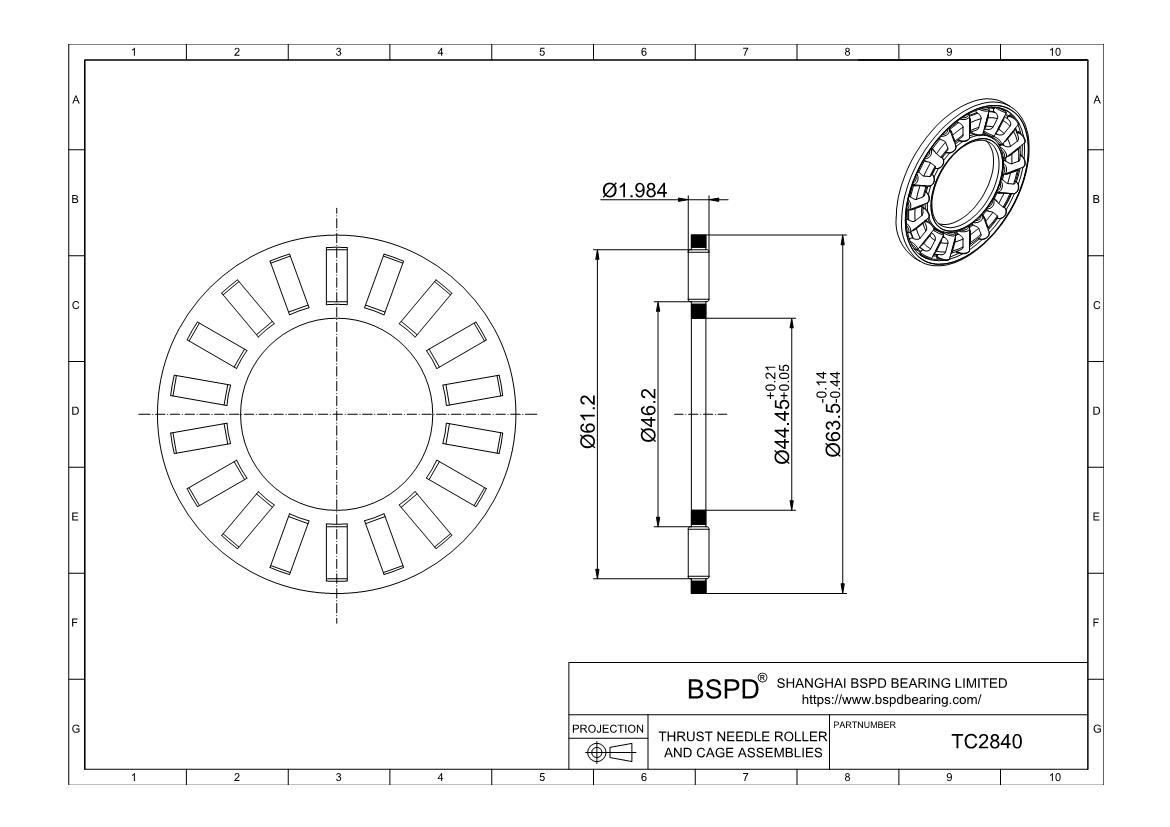

TC2840
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 1 3/4"； Outer Diameter: 2.5"； Width (Thickness): 0.078";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Seal Type | Open |
| For Load Direction | Thrust |
| System of Measurement | Inch |
| Part Number | TC2840 |
| ID | 1 3/4" | 44.45 mm |
| ID Tolerance | 0.05mm to 0.210mm |
| OD | 2.5" | 63.5 mm |
| OD Tolerance | -0.440mm to -0.140mm |
| Thickness | 0.078" | 1.981 mm |
| Needle Material | Steel |
| Cage Material | Steel |
| Basic dynamic load rating, axial (Ca) (Newtons) | 24900 |
| Basic static load rating, axial (C0a) (Newtons) | 134000 |
| Max Speed (RPM) | 5200 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 to 0.0005" |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
