Ssuct208 SSUCT SERIES

Ssuct208
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications BSPD Bearings NO. FYH NO.
Unit Number Ssuct208 UCST208JH1S6
Housing Number SST208 ST208H1
Bearing Number SSUC208 UC208S6
Shaft Size 40 mm
Weight 2.0 kg 4.41 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

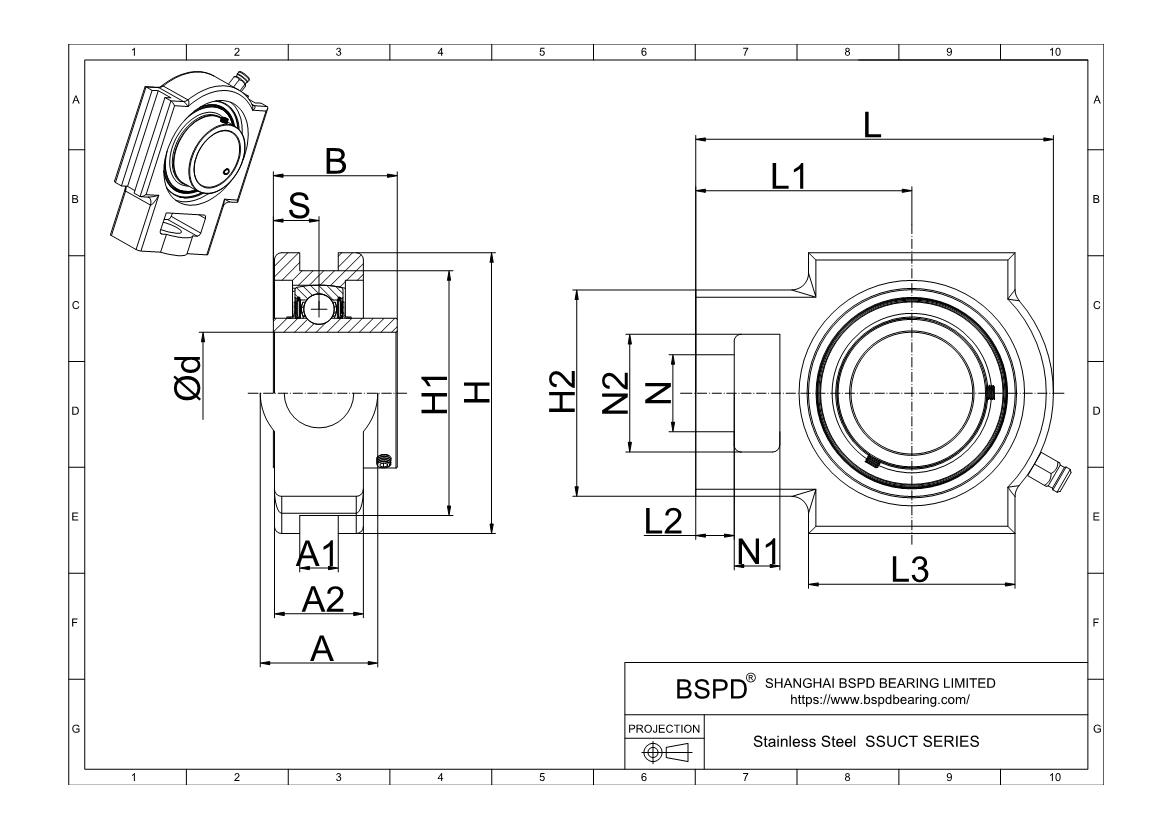

Dimensions
A 49 mm 1-15/16 in
A1 16 mm 5/8 in
A2 32 mm 1-1/4 in
H 114 mm 4-1/2 in
H1 102 mm 4-1/64 in
H2 74 mm 2-29/32 in
L 135 mm 5-5/16 in
L1 85 mm 3-11/32 in
L2 14 mm 9/16 in
L3 64 mm 2-17/32 in
N 29 mm 1-5/32 in
N1 20 mm 25/32 in
N2 49 mm 1-15/16 in
B 49.2 mm 1.937 in
S 19 mm 0.748 in
Basic Load Rating
Cr 24.8 kN 5575 lbf
Cor 14.3 kN 3215 lbf
Factor fo 14.0
