Ssucpa206 18 SSUCPA SERIES

Ssucpa206 18
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications BSPD Bearings NO. FYH NO.
Unit Number Ssucpa206 18 UCSPA206-18JH1S6
Housing Number SSPA206 SPA206H1
Bearing Number SSUC206-18 UC206-18S6
Shaft Size 1-1/8 in
Weight 0.91 kg 2.01 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

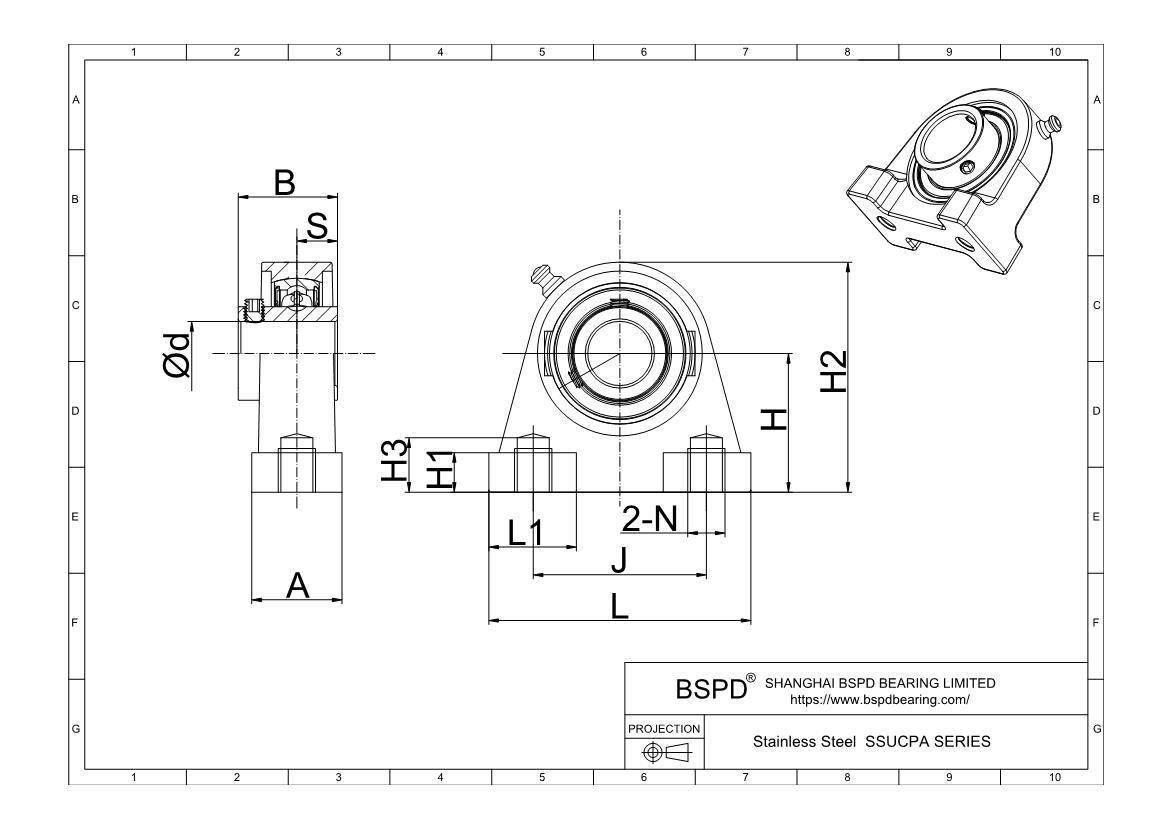

Dimensions
H 42.9 mm 1-11/16 in
L 94 mm 3-11/16 in
A 36 mm 1-13/32 in
J 66 mm 2-19/32 in
N M14X2
H2 81 mm 3-3/16 in
H3 18 mm 45/64 in
L1 28 mm 1-3/32 in
B 38.1 mm 1.500 in
S 15.9 mm 0.626 in
Basic Load Rating
Cr 16.5 kN 3709 lbf
Cor 9.05 kN 2035 lbf
Factor fo 13.9
Ssucpa206 18
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Stainless Steel Mounted Units, Pillow Blocks, Housed Unit Bearings & Inserts Ssucpa206 18 ? SSUCPA SERIES Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
