Ssucfl202 SSUCFL SERIES

Ssucfl202
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications BSPD Bearings NO. FYH NO.
Unit Number Ssucfl202 UCSFL202XJH1S6
Housing Number SSFL202 SFL203H1
Bearing Number SSUC202 UC202XS6
Shaft Size 15 mm
Bolt Size M10 3/8 in
Weight 0.33 kg 0.73 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

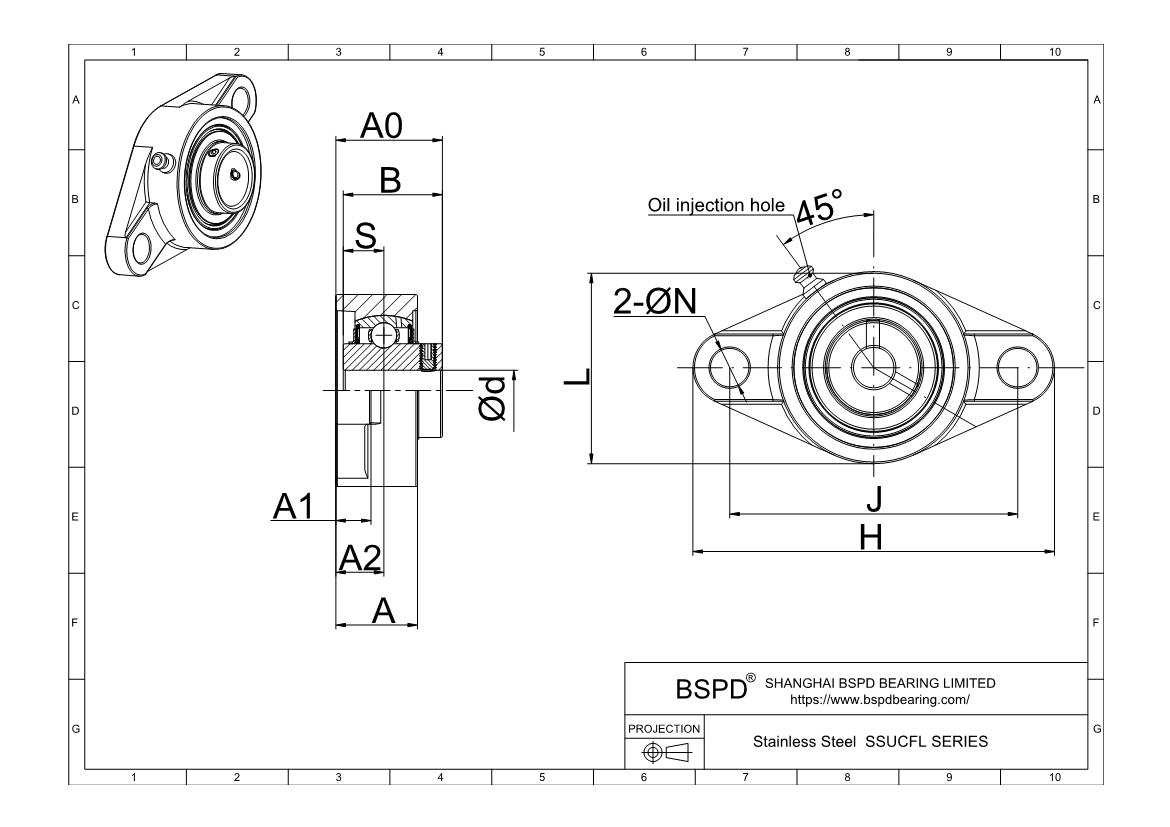

Dimensions
H 98 mm 3-27/32 in
L 52 mm 2-1/16 in
A 24 mm 1/15/16 in
J 76.5 mm 3 in
N 12 mm 15/32 in
A1 10 mm 13/32 in
A2 14 mm 9/16 in
A0 29.9 mm 2-3/16 in
B 27.4 mm 1.079 in
S 11.5 mm 0.453 in
Basic Load Rating
Cr 8.15 kN 1832 lbf
Cor 3.85 kN 866 lbf
Factor fo 13.2
Ssucfl202
