Ssucfc207 21 SSUCFC SERIES

Ssucfc207 21
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications BSPD Bearings NO. FYH NO.
Unit Number Ssucfc207 21 UCSFC207-21JH1S6
Housing Number SSFC207 SFC207H1
Bearing Number SSUC207-21 UC207-21S6
Shaft Size 1-5/16 in
Bolt Size M12 7/16 in
Weight 1.1 kg 2.43 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

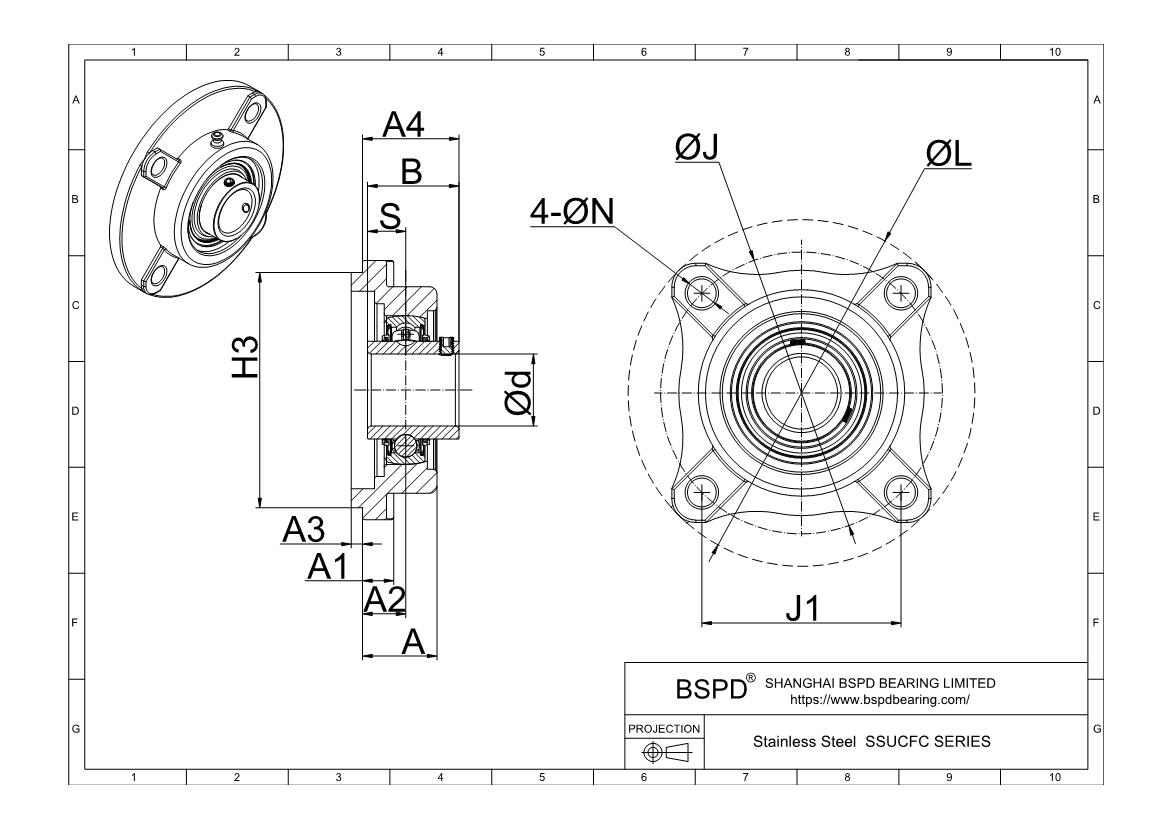

Dimensions
L 135 mm 5-5/16 in
H3 90 mm 3.5433 in
J 110 mm 4-21/64 in
J1 77.8 mm 3-1/16 in
N 14 mm 35/64 in
A 26 mm 1-1/32 in
A1 12 mm 15/32 in
A2 11 mm 7/16 in
A3 8 mm 5/16 in
A4 36.4 mm 1-7/16 in
B 42.9 mm 1.689 in
S 17.5 mm 0.689 in
Basic Load Rating
Cr 21.8 kN 4901 lbf
Cor 12.3 kN 2765 lbf
Factor fo 13.9
Ssucfc207 21
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
