Ssucfb208 24 SSUCFB SERIES

Ssucfb208 24
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Unit Number Ssucfb208 24
Housing Number SSFB208
Bearing Number SSUC208-24
Shaft Size 1-1/2 in
Bolt Size M10 3/8 in
Weight 1.8 kg 3.97 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

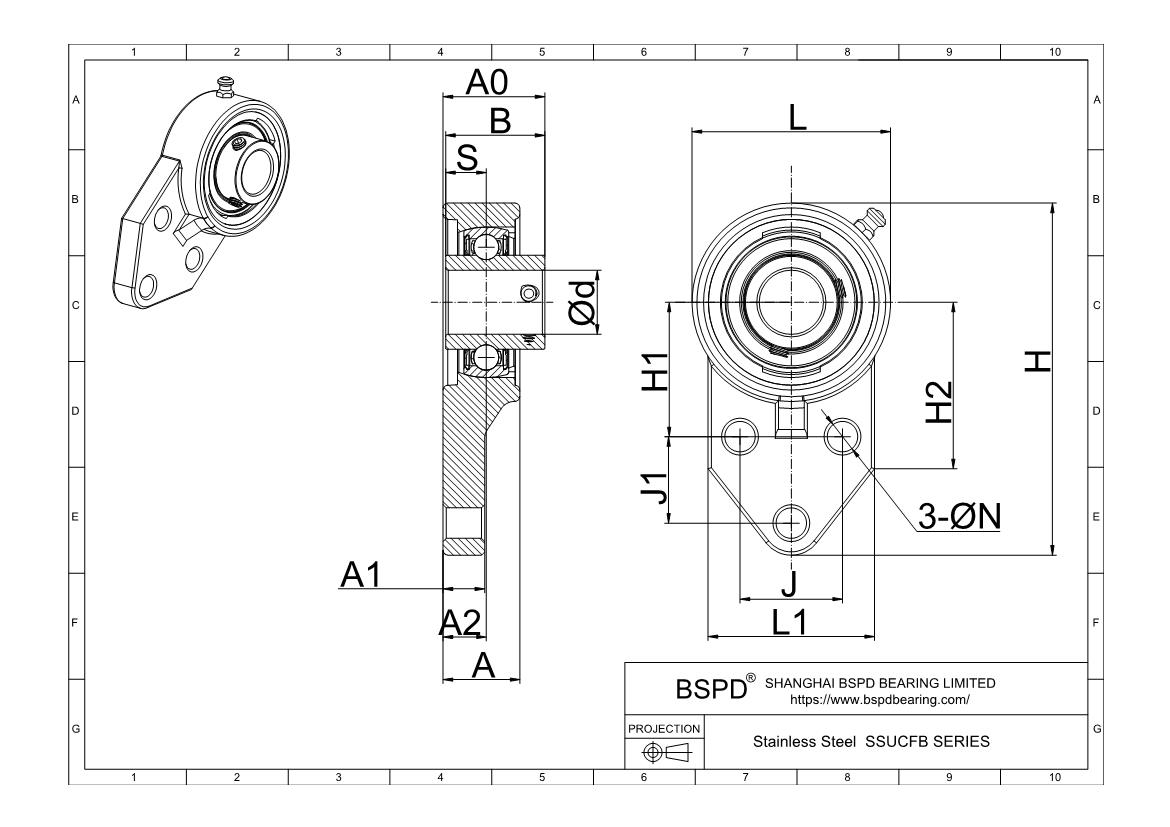

Dimensions
H 164 mm 6-15/32 in
L 100 mm 3-15/16 in
A 34 mm 1-11/32 in
J 50 mm 1-31/32 in
J1 41 mm 1-39/64 in
N 11 mm 7/16 in
H1 60 mm 2-23/64 in
H2 72 mm 2-27/32 in
L1 78 mm 3-1/16 in
A1 16 mm 5/8 in
A2 20 mm 25/32 in
A0 50.2 mm 1-31/32 in
B 49.2 mm 1.937 in
S 19 mm 0.748 in
Basic Load Rating
Cr 29.1 kN 6542 lbf
Cor 17.8 kN 4002 lbf
Factor fo 14.0
Ssucfb208 24
