Ssucf209 27 SSUCF SERIES

Ssucf209 27
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications BSPD Bearings NO. FYH NO.
Unit Number Ssucf209 27 UCSF209-27JH1S6
Housing Number SSF209 SF209H1
Bearing Number SSUC209-27 UC209-27S6
Shaft Size 1-11/16 in
Bolt Size M14 1/2 in
Weight 2.3 kg 5.07 lb
Locking Style Set Screw Locking
Grease Fitting Food Grade Grease

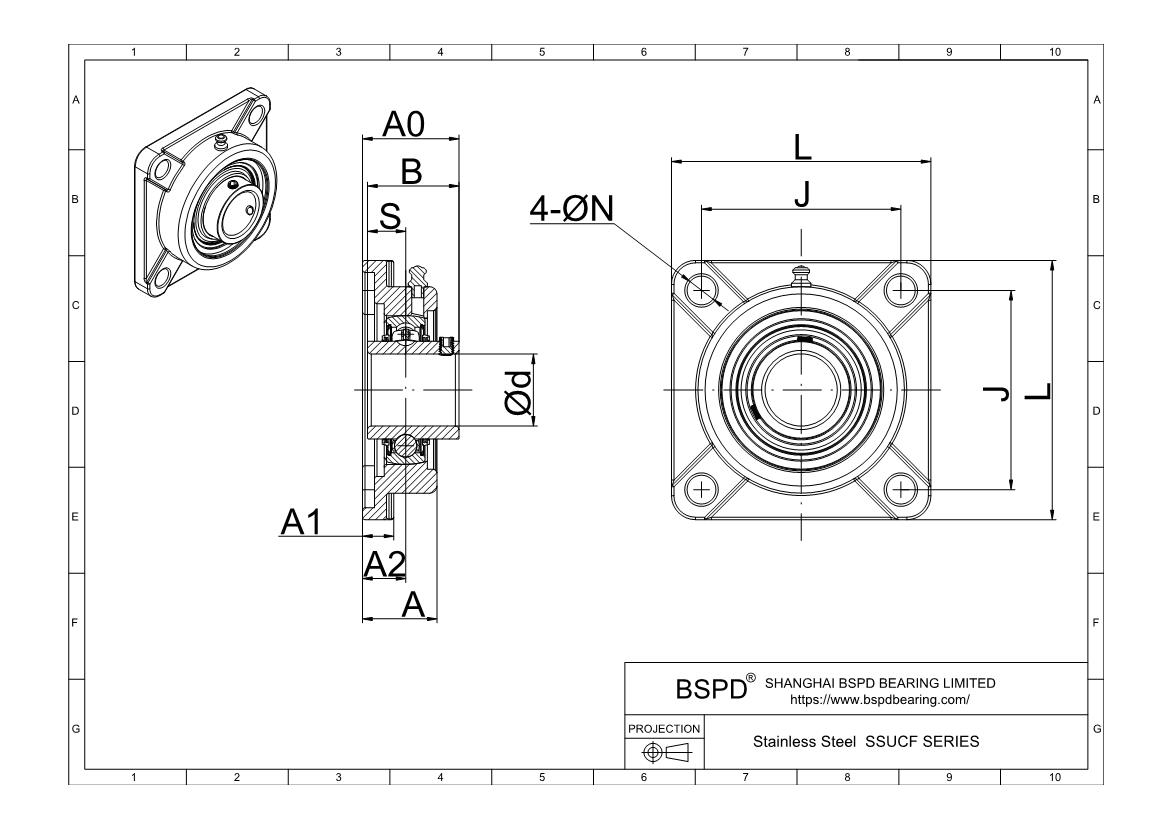

Dimensions
L 137 mm 5-13/32 in
A 38 mm 1-1/2 in
J 105 mm 4-9/64 in
N 16 mm 5/8 in
A1 13 mm 1/2 in
A2 22 mm 55/64 in
A0 52.2 mm 2-1/16 in
B 49.2 mm 1.937 in
S 19 mm 0.748 in
Basic Load Rating
Cr 27.8 kN 6250 lbf
Cor 16.2 kN 3642 lbf
Factor fo 14.0
Ssucf209 27
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Stainless Steel Mounted Units, Pillow Blocks, Housed Unit Bearings & Inserts Ssucf209 27 ? SSUCF SERIES Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
