Ssuc209 26
SSUC SERIES
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Unit Number | Ssuc209 26 |
| Bearing Number | SSUC209-26 |
| Shaft Size | 1-5/8 in |
| Weight | 0.78kg 1.72 lb |
| Set Screw Size | 5/16-24UNF |
| Locking Style | Set Screw Locking |

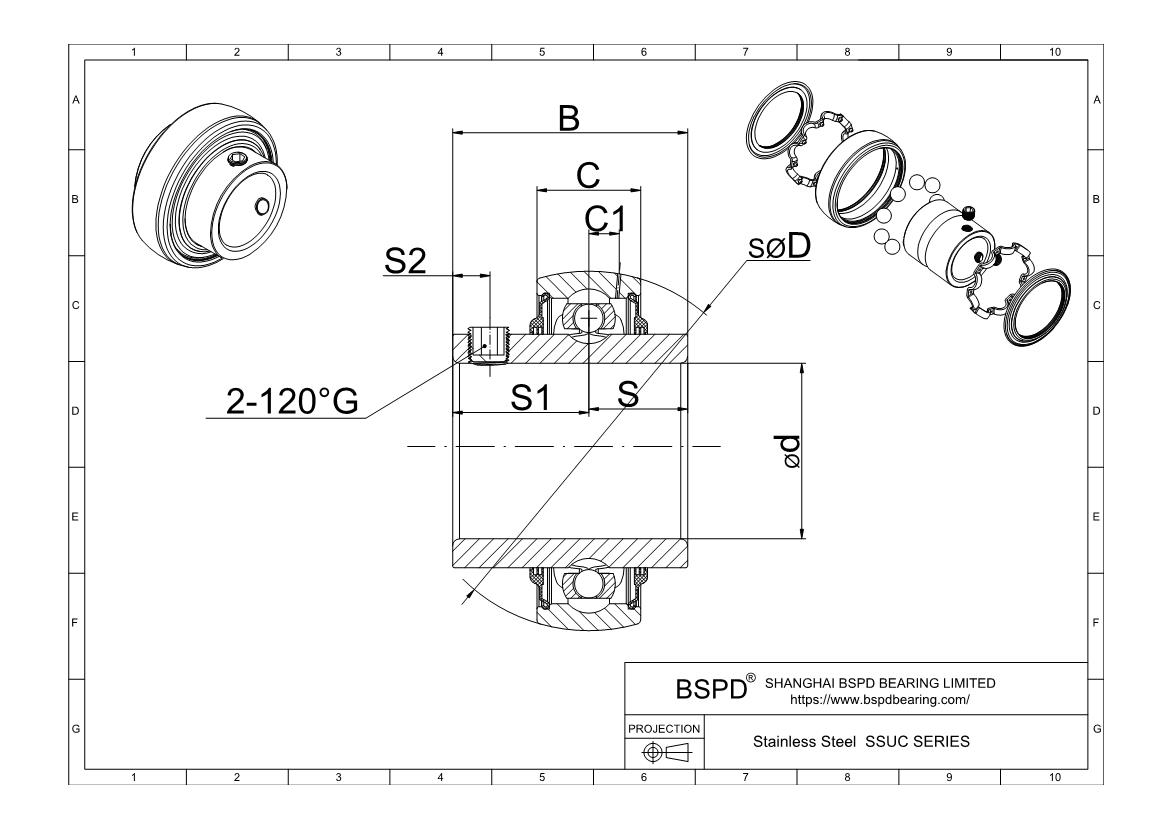

| Dimensions | |
| D | 85.0 mm 3.346 in |
| B | 49.2 mm 1.937 in |
| C | 22.0 mm 0.866 in |
| r(min.) | 1.1 mm 0.043 in |
| C1 | 6.0 mm 0.236 in |
| S | 19.0 mm 0.748 in |
| S1 | 30.2 mm 1.189 in |
| S2 | 8.0 mm 0.315 in |
| Basic Load Rating | |
| Cr | 34.1 kN 75.2 lb |
| Cor | 21.3 kN 47 lb |
| Factor fo | 14.0 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Stainless Steel Mounted Units, Pillow Blocks, Housed Unit Bearings & Inserts Ssuc209 26 ? SSUC SERIES Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
