Sssb206 19
SSSB SERIES
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Unit Number | Sssb206 19 |
| Bearing Number | SSSB206-19 |
| Shaft Size | 1-3/16 in |
| Weight | 0.27kg 0.6 lb |
| Set Screw Size | 1/4-28UNF |
| Locking Style | Set Screw Locking |

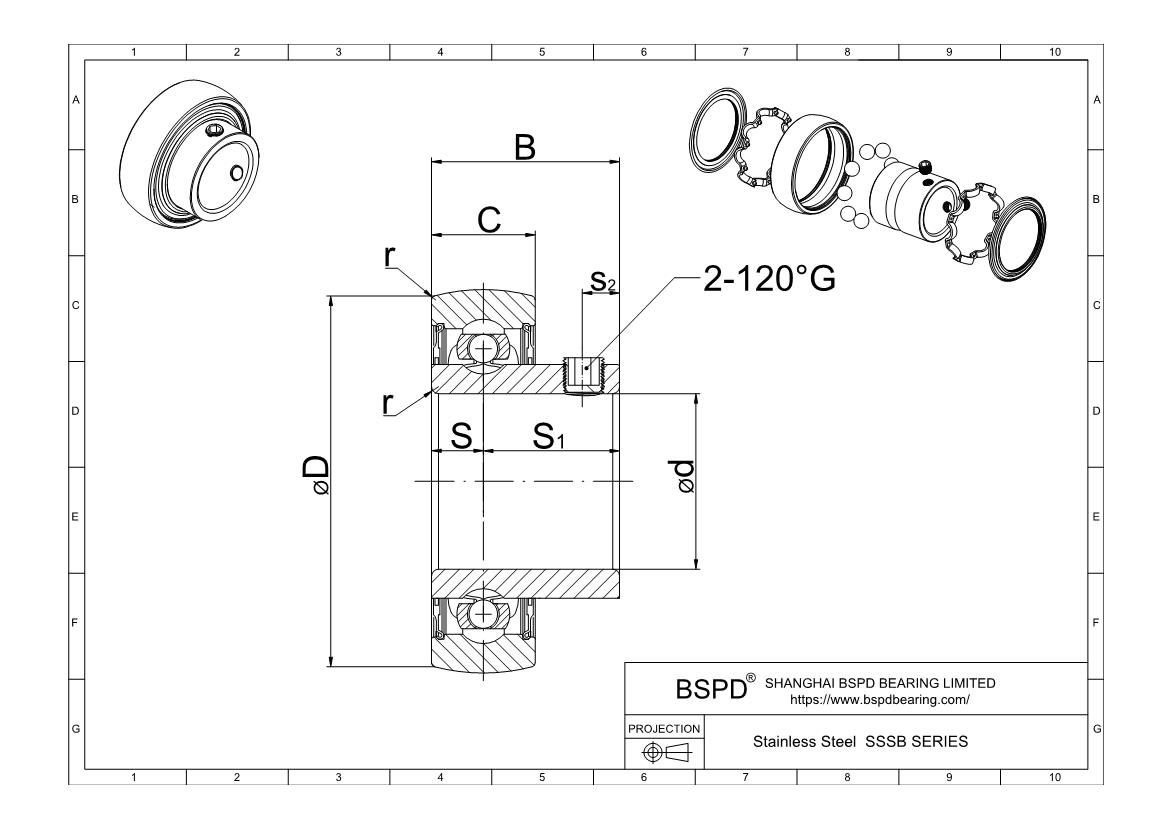

| Dimensions | |
| D | 62.0 mm 2.441 in |
| B | 30.0 mm 1.181 in |
| C | 16.0 mm 0.630 in |
| r(min.) | 1.0 mm 0.039 in |
| S | 8.0 mm 0.315 in |
| S1 | 22.0 mm 0.866 in |
| S2 | 6.0 mm 0.236 in |
| Basic Load Rating | |
| Cr | 19.5 kN 43 lb |
| Cor | 11.3 kN 24.9 lb |
| Factor fo | 13.9 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Stainless Steel Mounted Units, Pillow Blocks, Housed Unit Bearings & Inserts Sssb206 19 ? SSSB SERIES Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
