SR144TLZN
Dental Bearings

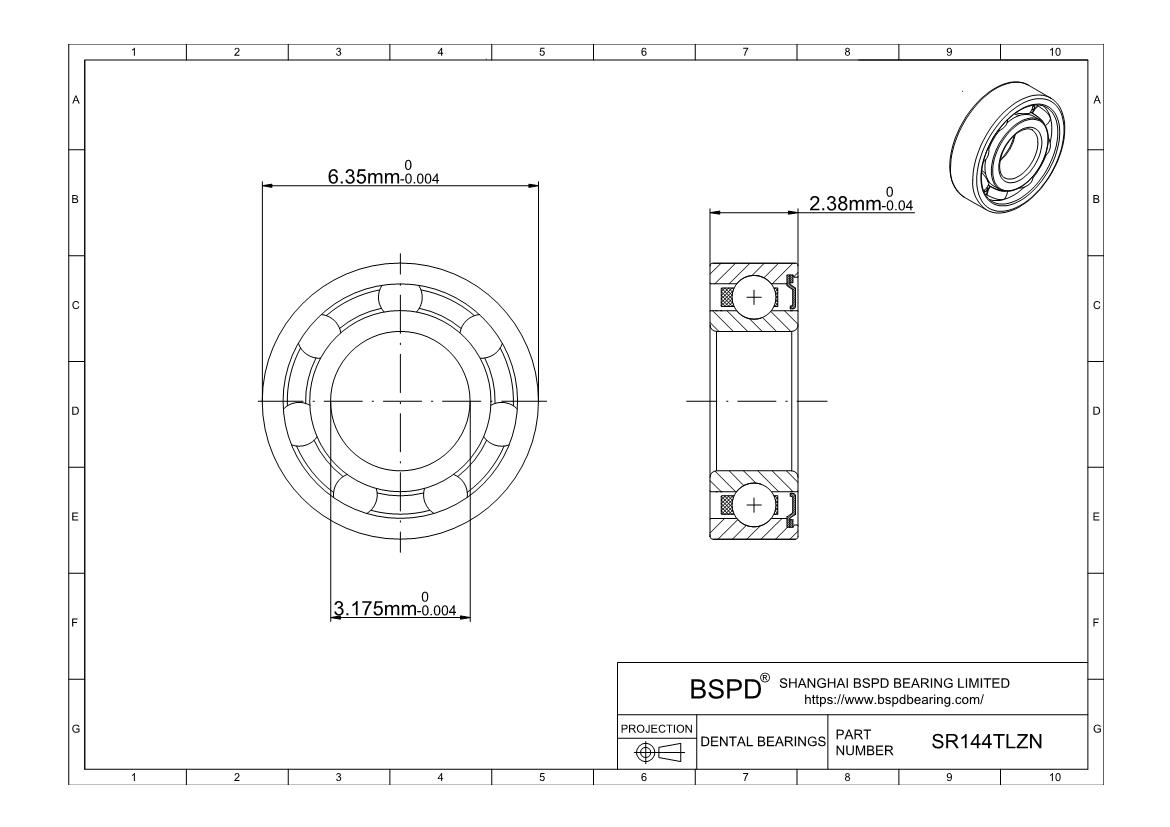

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.38 mm;
![SR144TLZN](https://www.bspdbearing.com/wp-content/uploads/2021/05/dental-Smooth-150x150-1.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball |
Seal Type | Single shield |
Precision Rating | P4 (ABEC-7) |
Structure | Smooth |
Ball Bearing Type | Radial |
Part Number | SR144TLZN |
Other MFG Code | DR02B |
Bore Dia (d) | 3.175mm |
Bore Dia Tolerance | -0.004mm to 0 |
Outer Dia (D) | 6.35mm |
Outer Dia Tolerance | -0.004mm to 0 |
Width (B) | 2.38mm |
Width Tolerance | -0.04mm to 0 |
Ring Material | AISI440C Stainless Steel |
Ball Material | Si3N4 balls |
Cage Material | Torlon |
Dynamic Load Rating (Cr) (Newtons) | 240.26 |
Static Load Rating (Cor) (Newtons) | 75.64 |
Max Speed (RPM) | 500,000 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -40 to 120 ºC |
Mass (grams) | 0.4 |
RoHS | Compliant |
![SR144TLZN](/wp-content/uploads/pdf/SR144TLZN/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Miniature Bearing Applications SR144TLZN ? Dental Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
