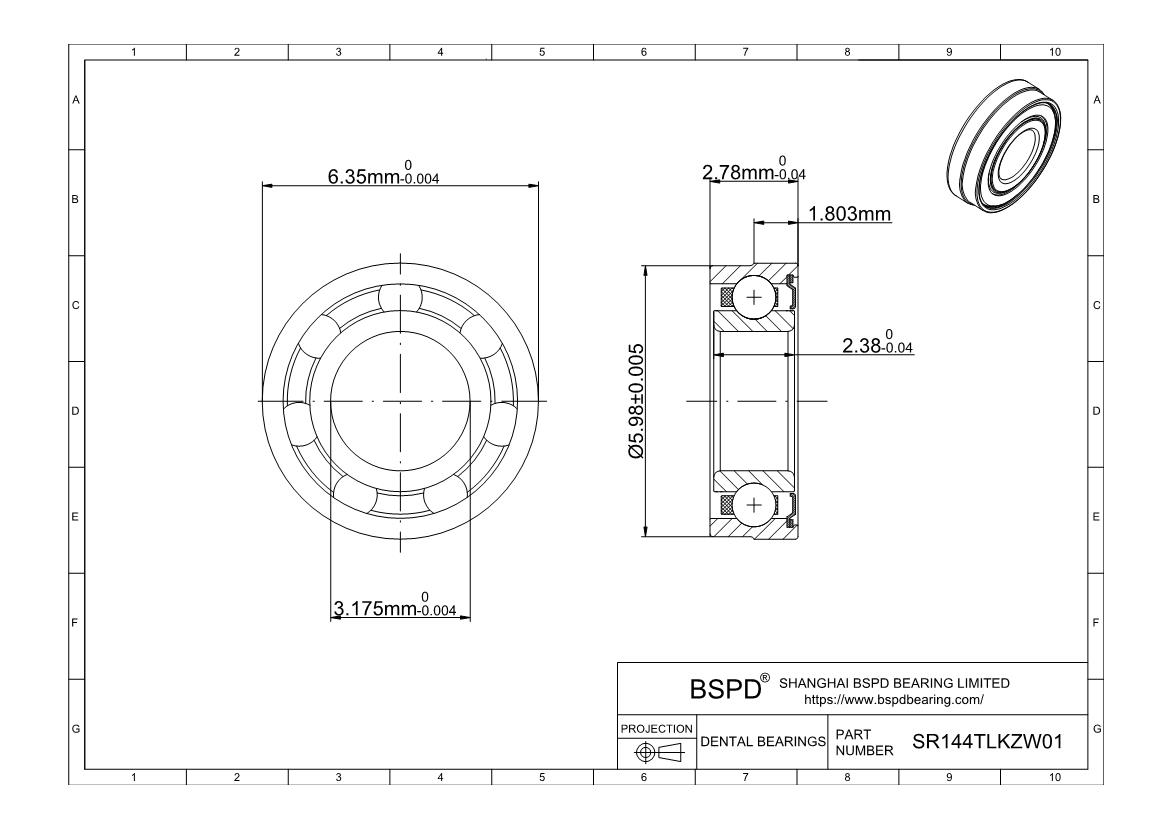

SR144TLKZW01
Dental Bearings
Dimensions: Bore (Inner) Diameter: 3.175 mm； Outer Diameter: 6.35 mm； Width (Thickness): 2.78 mm/2.38 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| Seal Type | Single shield |
| Precision Rating | P4 (ABEC-7) |
| Structure | Stepped |
| Ball Bearing Type | Radial |
| Part Number | SR144TLKZW01 |
| Other MFG Code | DR70K |
| Bore Dia (d) | 3.175mm |
| Bore Dia Tolerance | -0.004mm to 0 |
| Outer Dia (D) | 6.35mm |
| Outer Dia Tolerance | -0.004mm to 0 |
| Width (B) | 2.78mm/2.38mm |
| Inner Ring Width | 2.38mm |
| Outer Ring Width | 2.78mm |
| Width Tolerance | -0.04mm to 0 |
| Stepped Outer Dia | 5.98mm |
| Effective Outer Ring Width | 1.803mm |
| Ring Material | AISI440C Stainless Steel |
| Ball Material | AISI440C stainless steel balls |
| Cage Material | Torlon |
| Dynamic Load Rating (Cr) (Newtons) | 240.26 |
| Static Load Rating (Cor) (Newtons) | 75.64 |
| Max Speed (RPM) | 500,000 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Mass (grams) | 0.4 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Miniature Bearing Applications SR144TLKZW01 ? Dental Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
